Fabric OS 5.0.0 Advanced Web Tools user guide 109

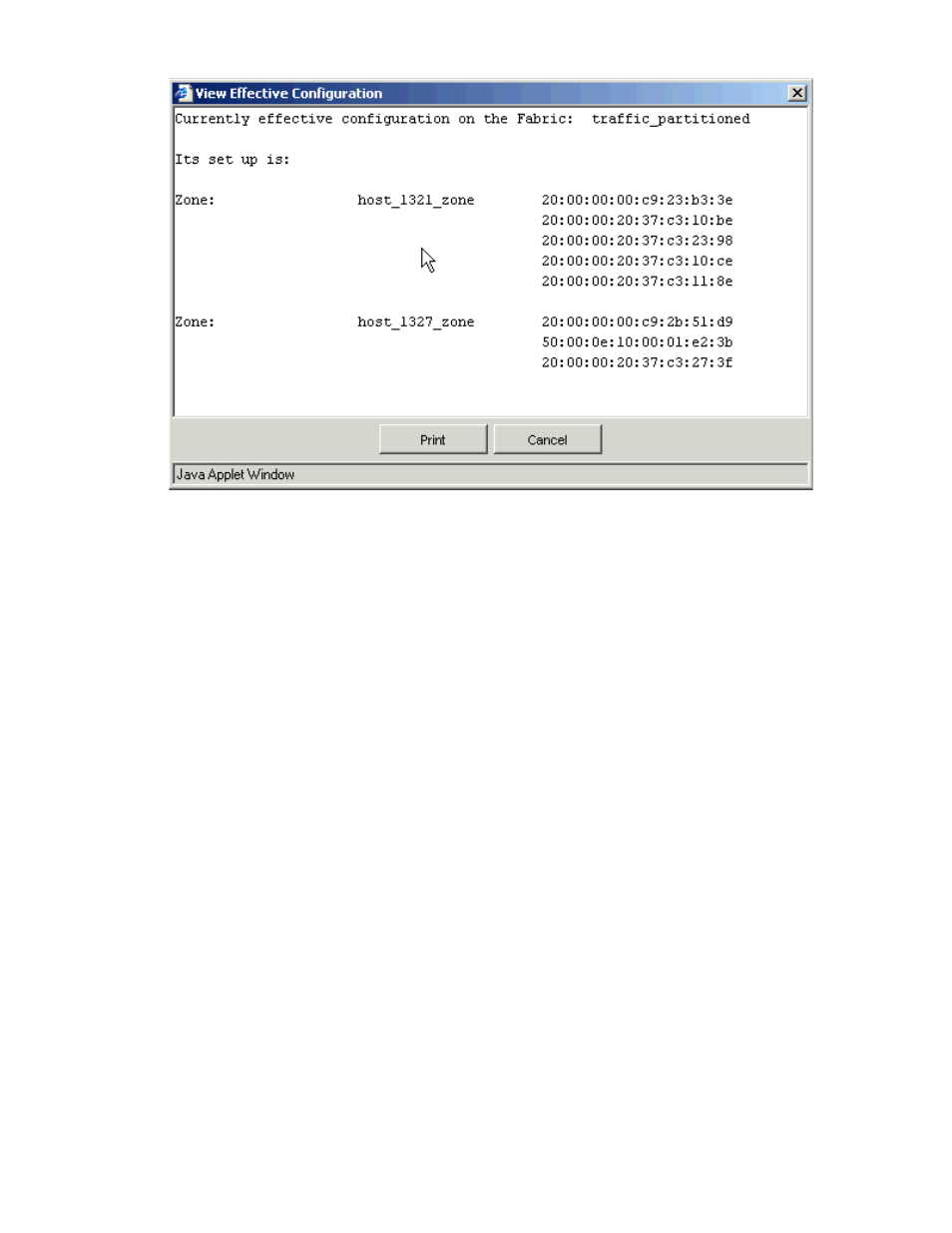

Figure 35 Zone Configuration summary
Creating a configuration analysis report
The configuration analysis report lists the following:
• SAN components (ports, WWNs, and AL_PAs) that are not included in the configuration
• SAN components (ports, WWNs, and AL_PAs) that are contained in the configuration, but not in the
fabric
To create a configuration analysis report:
1. Launch the Zone Admin module as described on page 95 .
2. Click the Config tab.
3. Select a configuration to be analyzed from the Name list.
4. Click Analyze Config.
A dialog box opens, asking if you want to refresh the fabric before running the analysis.
5. Click Yes or No.
The configuration analysis window opens.
Displaying initiator/target accessibility
The Initiator/Target Accessibility Matrix shows a list of initiators and a list of targets and indicates which
initiator can access which target.
To display an Initiator/Target Accessibility Matrix ( Figure 36 ):
1. Launch the Zone Admin module as described on page 95 .
2. Click the Config tab.
3. Select a configuration to be analyzed for device accessibility from the Name list.
