Introduction
Enabling a firmware option purchased separately from the
system relies on the use of the $PASHS,OPTION serial
command. For more information on how to enable an option,
refer to OPTION: Receiver Firmware Options on page 209.
IMPORTANT! After enabling firmware option [F] to enable
fast position output, the $PASHS,POP,20 command must be
run to make the fast output effective.

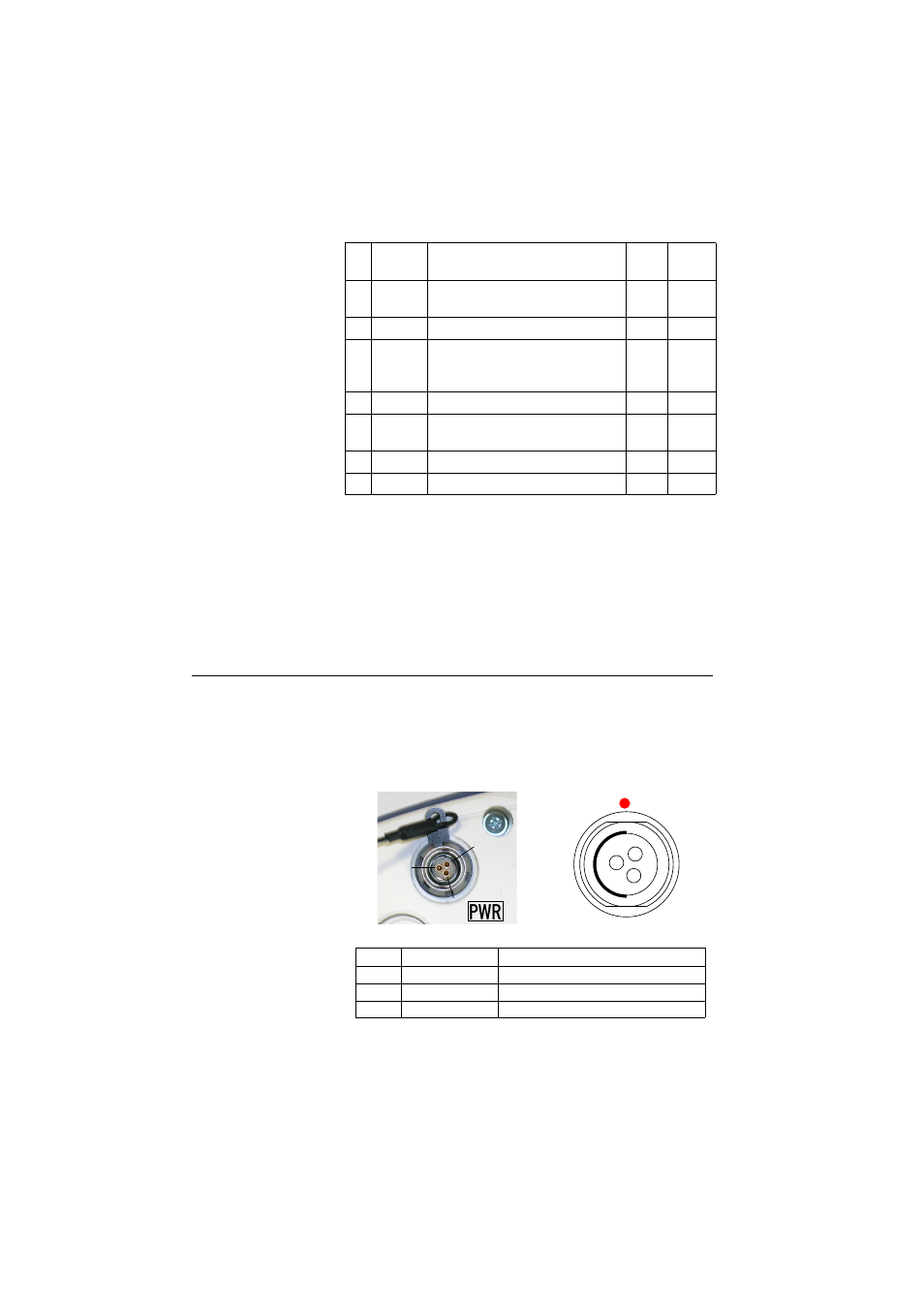

Port Pinouts
NOTE: All illustrations below show connectors seen from
outside the receiver case.
Power 3-C Connector, Type: Fischer DBPU 102 A052-139
S GLONASS
Enables the use of signals from the
GLONASS constellation
680500 Yes
P GNSSL2 Enables the reception of the L2 frequency - Yes
M RTK2
RTK computation with proprietary mes-
sages (ATOM, DBEN, LRK). Generates
proprietary messages (ATOM).
- Yes
L RTK3 Limits RTK range to 3 km -
N STA
Enables a base receiver to generate
RTCM, CMR or ATOM corrections data.
-
O GALILEO Enables Galileo tracking & raw data output. - Yes
Q GNSSL5 Enables L5 tracking & raw data output. - Yes
ID Label Description P/N
Pre-
installed
Pin Signal Name Description
1 GND External Power Ground
2 PWR External Power Input (10-28 V DC)
3 - Mandatory! Leave this pin unconnected.
1
1
2
2
3
3
