Teledyne LeCroy SAS/SATA Software Menus and Toolbars
92 Sierra M122 SAS/SATA Protocol Analyzer User Manual
Available FIS Types
Note: You cannot trigger on a Vendor FIS.
FIS Pattern (SATA only)
Double‐click FIS Pattern to open the FIS Pattern selection dialog.

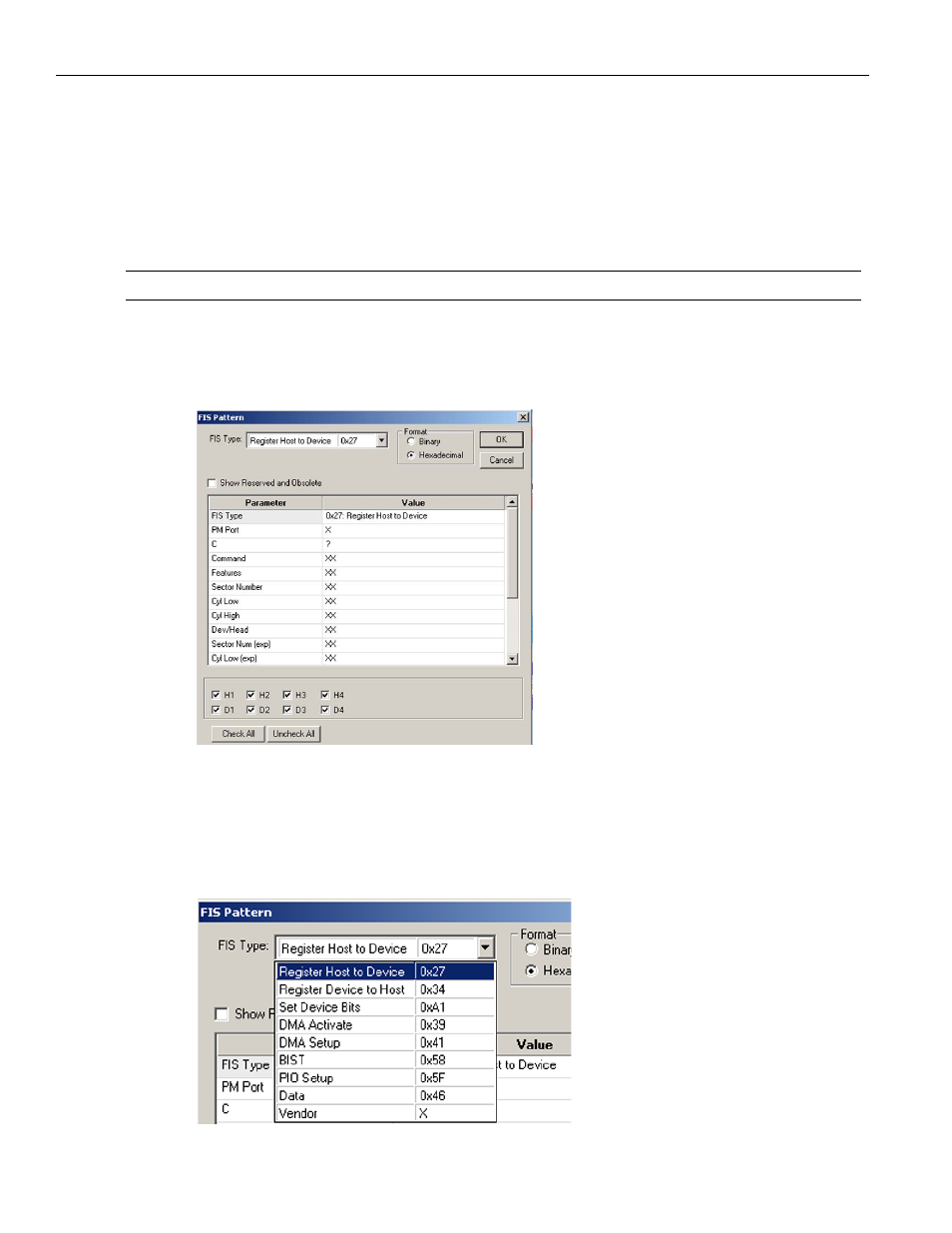

Figure 2.61: SATA: FIS Pattern Dialog
SAS vs. SATA: Not available in SAS.
The FIS Pattern dialog opens with the default FIS Type as Register Host to device. To
choose another available FIS Type, click the down arrow next to the FIS Type list box.
SATA: FIS Pattern Dialog Choices
 Register Host to Device
 Register Device to Host
 Set Device Bit
 DMA Activate
 Any Type
 DMA Setup
 BIST
 PIO Setup
 Data
