Sierra M122 SAS/SATA Protocol Analyzer User Manual 105
SAS/SATA Software Menus and Toolbars Teledyne LeCroy

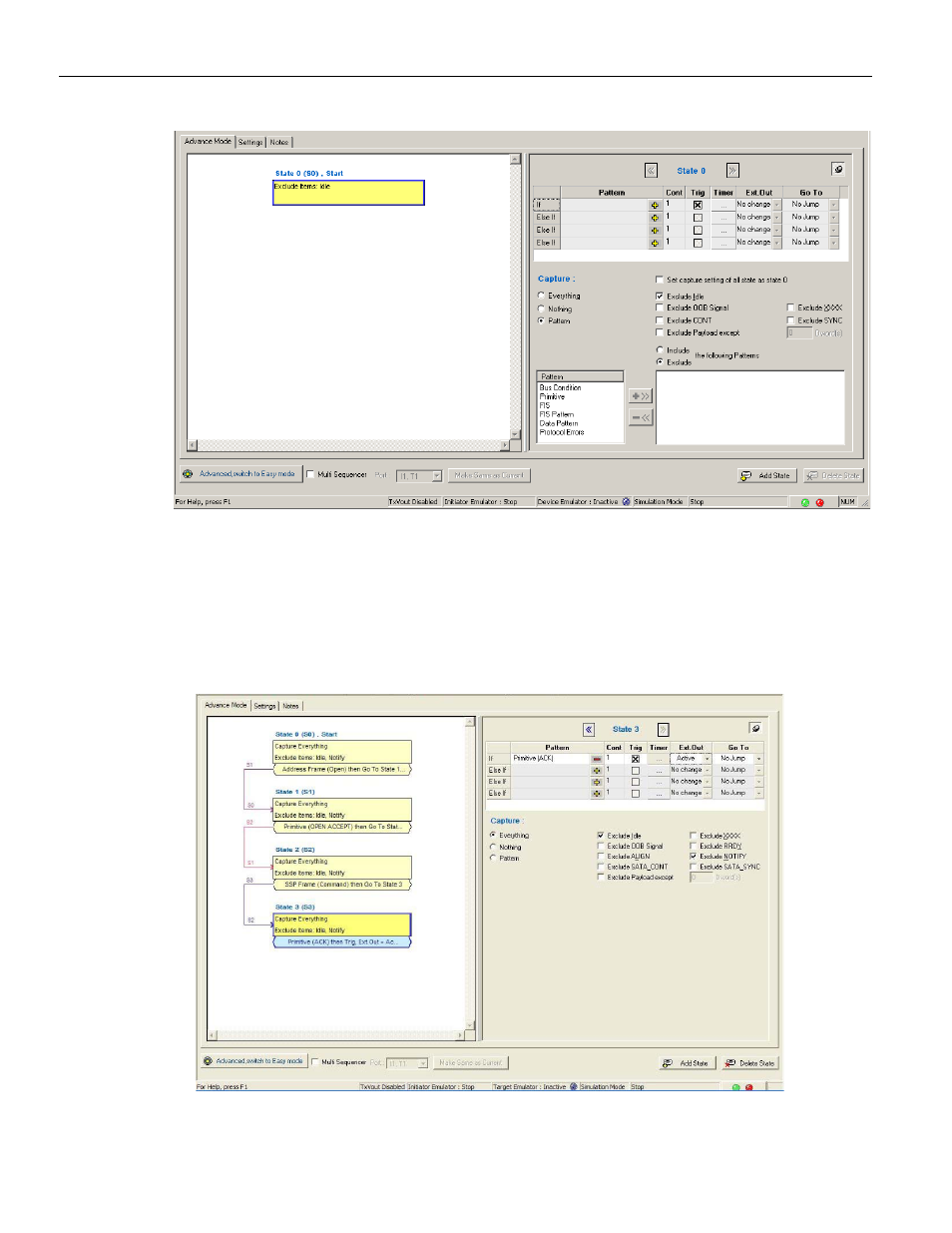

Figure 2.75: SATA: State Programming Dialog
SAS vs. SATA: SATA Dialog removes Exclude ALIGN, Exclude RRDY, and Exclude NOTIFY.
SATA Dialog replaces Exclude SATA_CONT with Exclude CONT and Exclude SATA_SYNC
with Exclude SYNC.
SATA Dialog has patterns Bus Condition, Primitive, FIS, FIS Pattern, Data Pattern, and
Protocol Errors and does not have STP Frame, SMP Frame, STP Frame, or Address Frame.
Figure 2.76: SAS: Advanced Trigger with Multiple Branches
