228 Sierra M122 SAS/SATA Protocol Analyzer User Manual
To record traffic both before and after the InFusion modifies (jams) it, select 
Analyzer/Jammer/Analyzer on the port that you want to jam. In the following figure,
there is a match on Port 0.

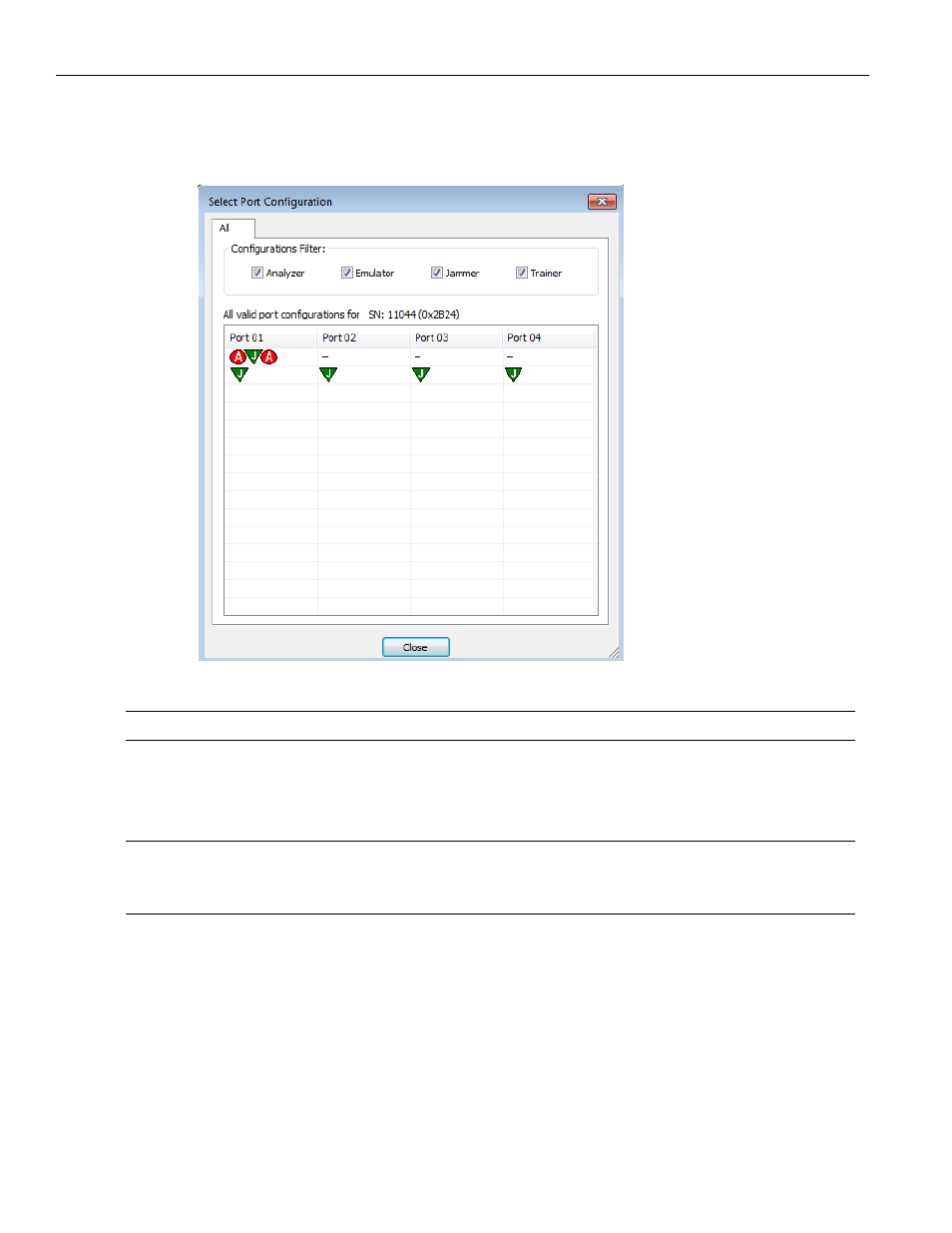

Figure 4.7: Ports Configuration Dialog with InFusion/Analyzer Port Match
Note:
You can select only one Jammer port at a time with this configuration.
To record traffic from two ports after the InFusion modifies (jams) them, select a
combination of ports that have Jammer/Analyzer specified under them. The different
configurations accommodate different possible user setups and requirements.
Note:
To display the current Port Configuration, click Show Analyzer to go to the analyzer application,
then click the green button in the lower right corner to display the Port Status window (see
“Port Status” on page 188 ).
4.4 InFusion Scenarios
You can create and execute InFusion scenarios. A scenario is a test script that defines how
InFusion monitors and modifies line traffic.
4.4.1 Scenarios Overview
The InFusion application provides a menu‐driven interface for building scenarios. The
interface prompts you for simple decisions and choices from drop‐down menus. As you
make your selections, the script takes shape automatically in the scenario window. The
