Sierra M122 SAS/SATA Protocol Analyzer User Manual 75
SAS/SATA Software Menus and Toolbars Teledyne LeCroy

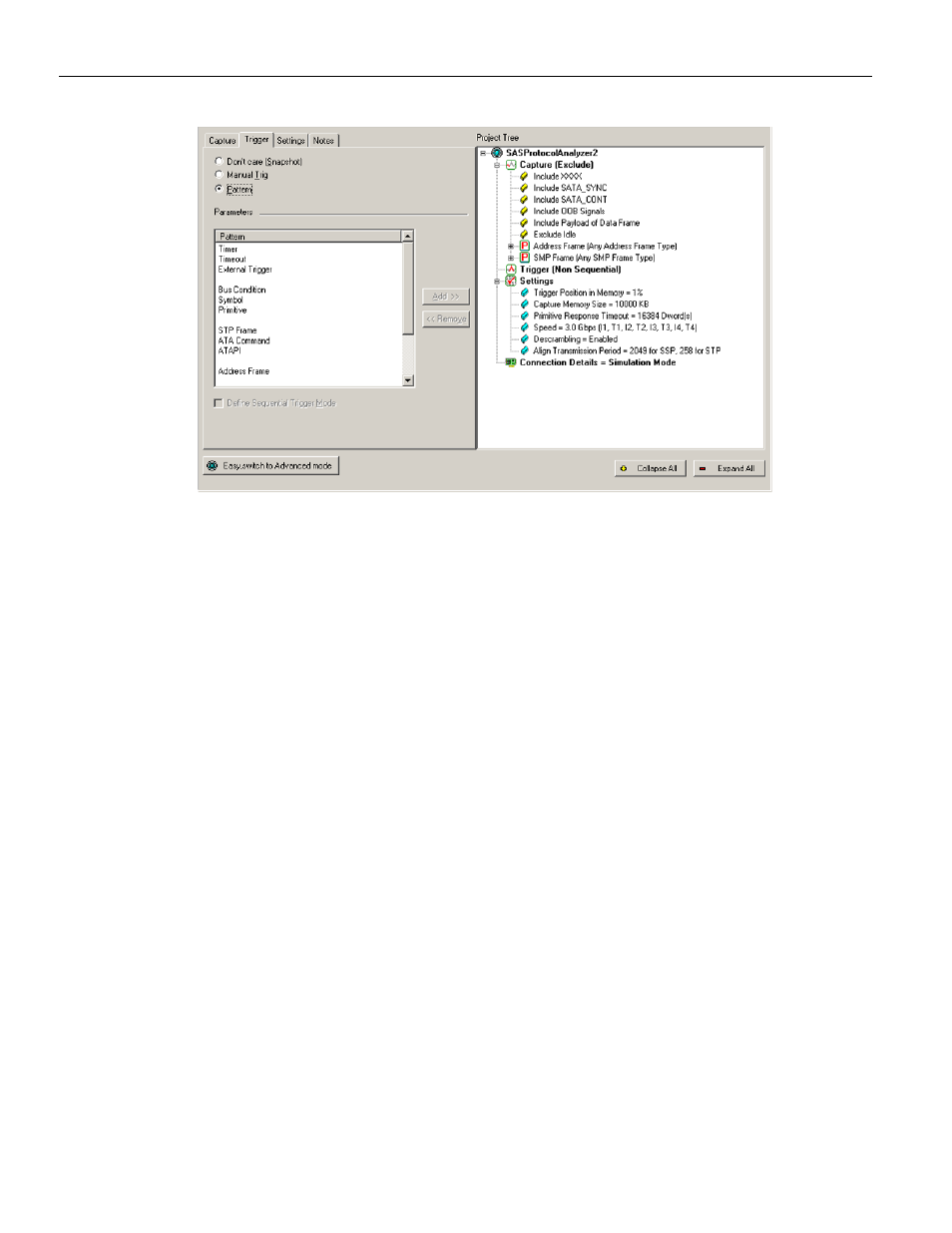

Figure 2.37: SAS: Select Patterns for Trigger
The SAS Parameters window displays the following trigger pattern categories:
 Timer
 Timeout
 External/Manual Trigger
 Device Sleep
 Bus Condition
 Symbol
 Primitive
 STP Frame
 ATA Command
 ATAPI
 Address Frame
 SMP Frame
 SSP Frame
 SCSI Command
 Data Pattern
 Protocol Errors
