Sierra M122 SAS/SATA Protocol Analyzer User Manual 261
Creating a Sequence Teledyne LeCroy
11. In the State 1 area, click the prompt to add an event. The Event Properties dialog
box displays.
12. Choose the Address Frame event. In the Direction column, select From Target (you
want State 1 to trigger on an Identify Address frame received from the target).
13. Click OK to close the Event Properties dialog box.
14. Click the prompt to add an action for State 1.

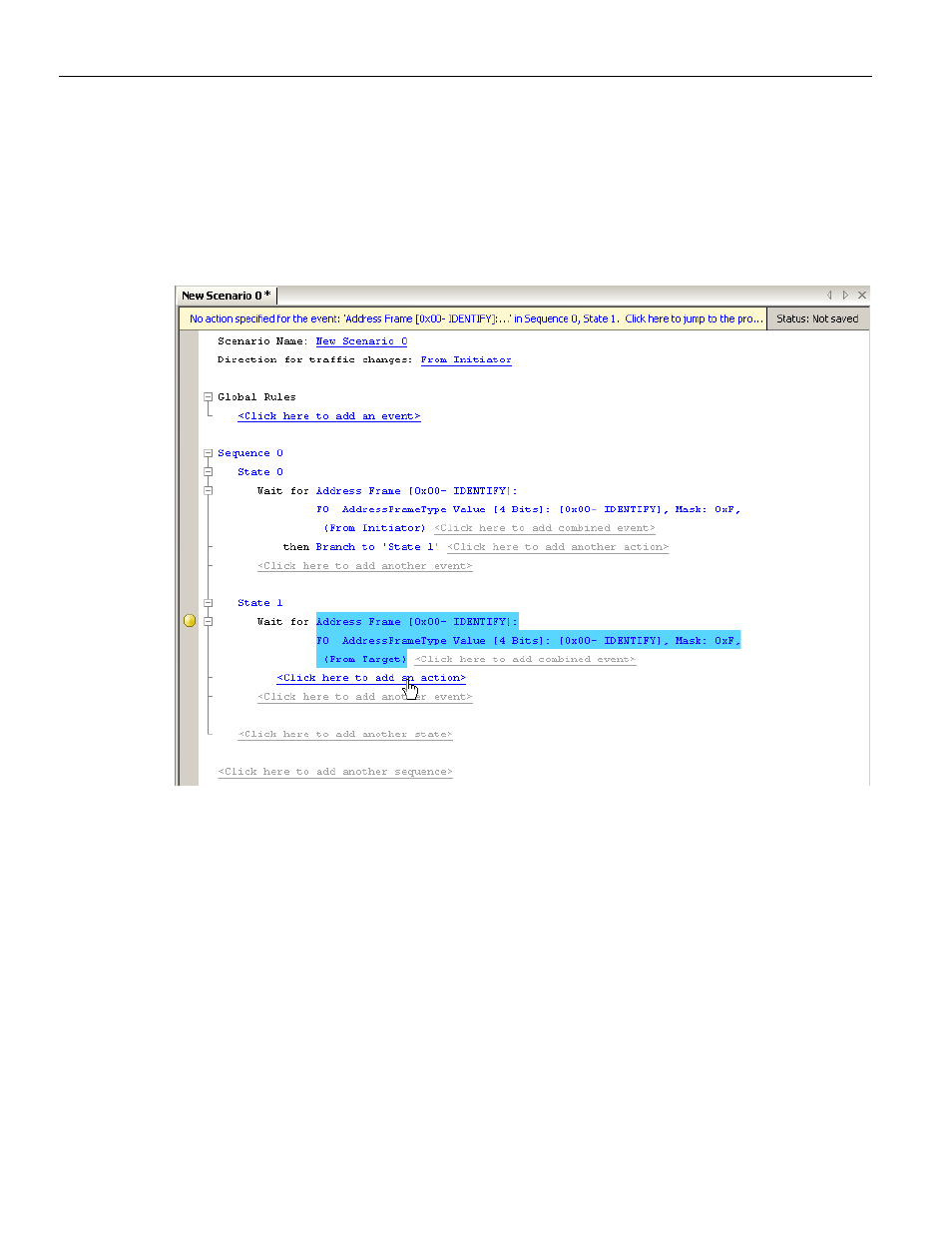

Figure 4.38: Example 7: Adding an Action to the Second State
The Action Properties dialog box displays.
15. In this example, you enter the action Beep, and you set the duration of the beep for
1 second.
16. Click OK to close the Action Properties dialog box.
