Sierra M122 SAS/SATA Protocol Analyzer User Manual 181
Packet View Toolbar Teledyne LeCroy
3.7.1 CATC Navigation View
To change the trace display to a CATC Trace™ (see Figure 3.100 on page 181 ), click the
CATC Navigation button . You can change the colors, fonts, and so on, in the Trace
Viewer Configuration (see “Trace Viewer Configuration” on page 191 ).

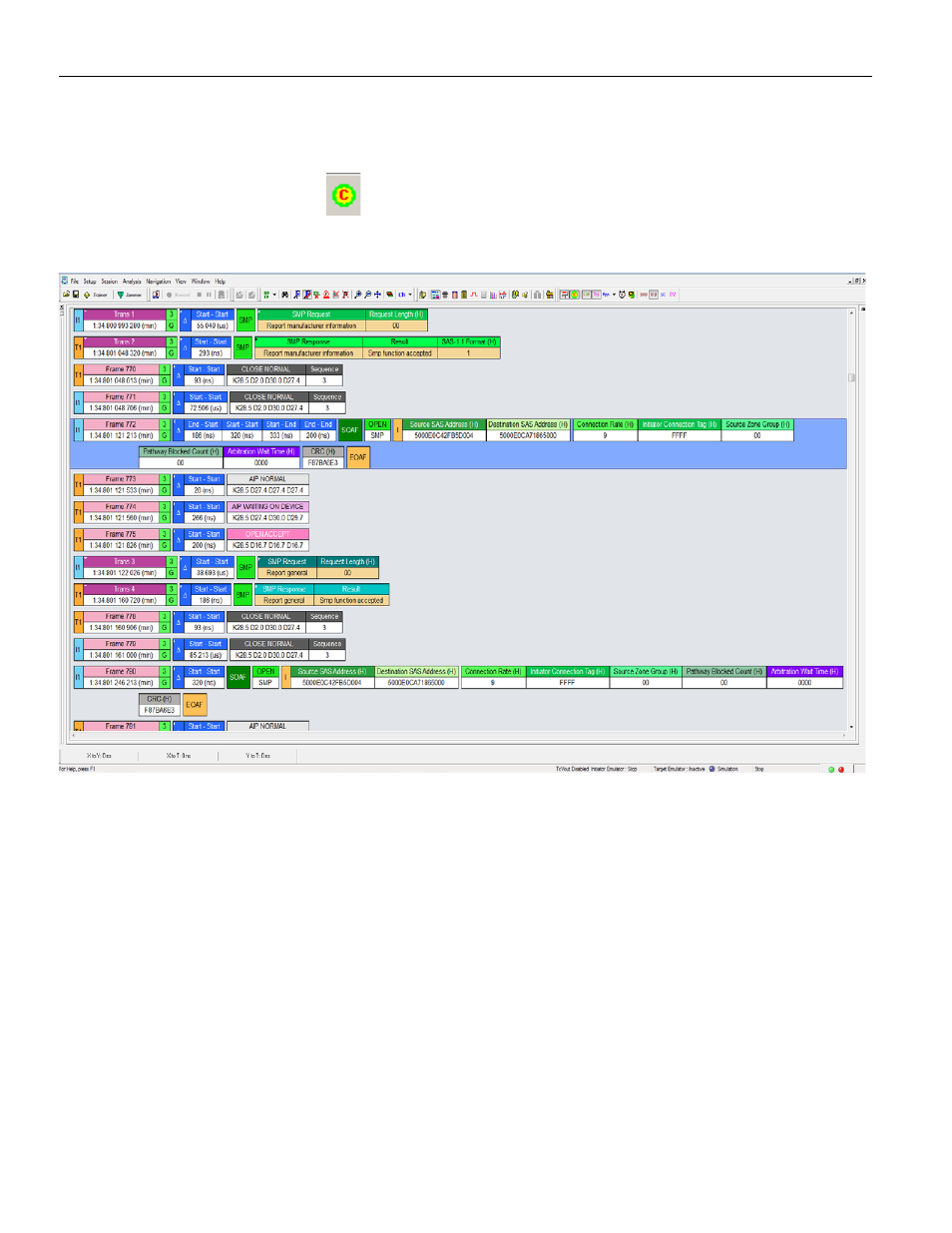

Figure 3.100: CATC Navigation View
3.7.2 Spec View
Spec View shows packet header information.
To obtain the Spec View from the CATC View, left‐click to display a popup menu, then
select the View Fields option (see
Figure 3.101 on page 182 ).
To obtain the Spec View from the Catalyst View, right‐click to display a popup menu, then
select the View Fields option.
