Performance Report (SAS)
To display the Performance Report, click the Performance tab.The Performance Report
displays the report data in columns with the following information:
 Minimum Completion Time
 Average Completion Time
 Maximum Completion Time
 Initiator Bus Utilization
 Target Bus Utilization
 Efficiency
 Total Read Cmd
 Total Read (Bytes)
 Total Read Duration
 Cmd Minimum Read (MB/S)
 Cmd Average Read (MB/S)
 Cmd Maximum Read (MB/S)
 Total Write Cmd
 Total Write (Bytes)
 Total Write Duration is the sum of all write commands duration.
 Cmd Minimum Write (MB/S)
 Cmd Average Write (MB/S) is the Total Write (Total payload size of all write com‐
mands in sample file in MB) / Total Completion Time (Total completion time of all
write commands in sample file in seconds).
 Cmd Maximum Write (MB/S)
 Average Byte per SSP Frame
 Average Byte per STP Frame

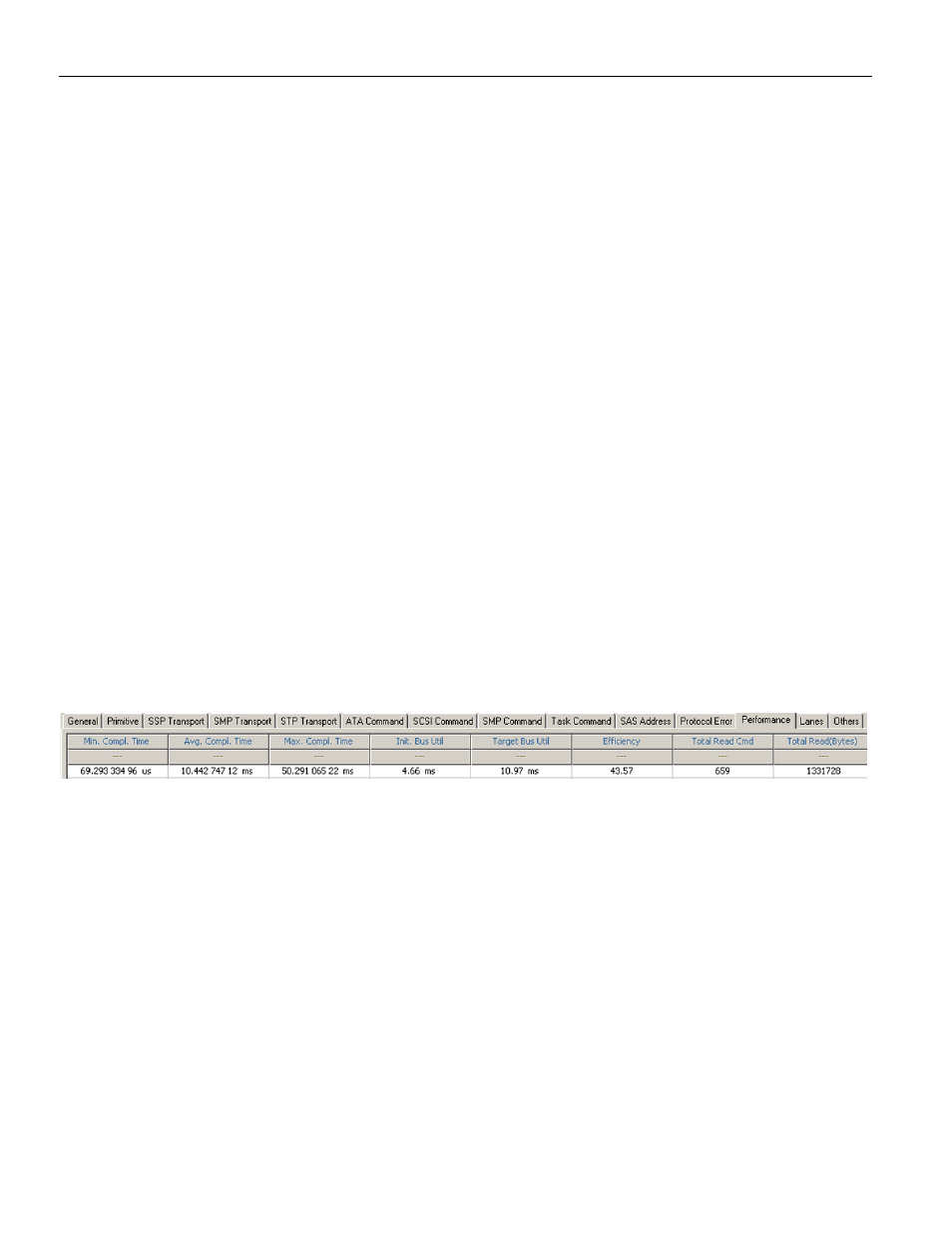

Figure 3.42: SAS: Performance Report
Performance Report (SATA)
To display the Performance Report (see Figure 3.43 on page 138 ), click the Performance
tab. The Performance Report displays information in the following columns:
 Minimum Completion Time
 Average Completion Time
 Maximum Completion Time
 Host Bus Utilization
 Device Bus Utilization
 Efficiency (%)
 Total Read Cmd
 Total Read (Bytes)
 Total Read Duration
 Cmd Minimum Read (MB/S)
