Sierra M122 SAS/SATA Protocol Analyzer User Manual 149
Analysis Teledyne LeCroy
Zoom
You can Zoom from x1 to x256.
3.3.13 Bus Utilization View
The Bus Utilization View displays information on pending IO. To display the Bus Utilization
View of the current capture, 
click Analysis > Bus Utilization View or click the button on the toolbar.

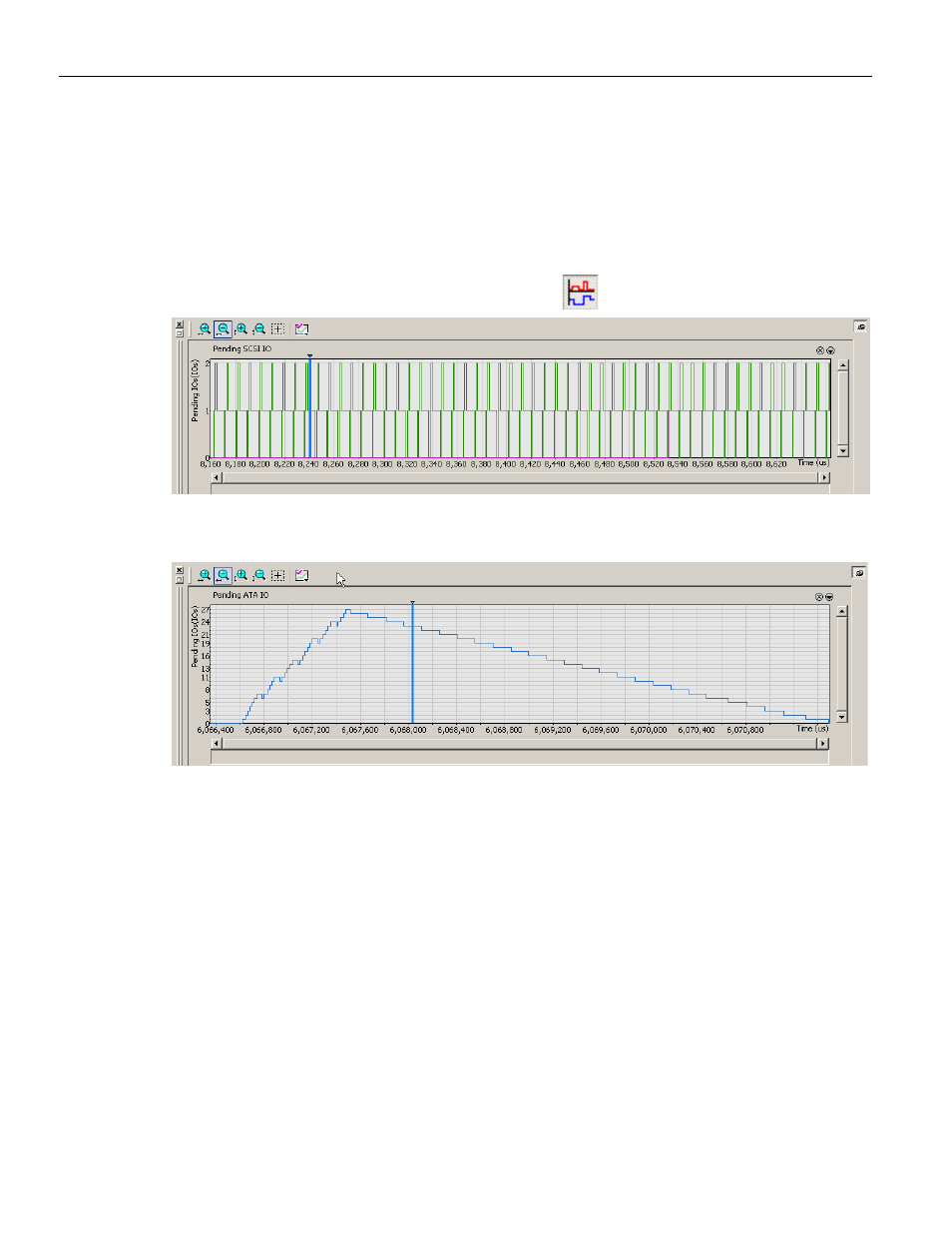

Figure 3.63: SAS: Bus Utilization View for Pending SCSI IO
Figure 3.64: SATA: Bus Utilization View for Pending ATA IO
Available Bus Utilization Views are:
 Pending SCSI IO (for SAS)
 Pending ATA IO (for SATA)
Hovering the mouse over the graph heading displays the graph legend:
 Go to ATA/SCSI Cmd. #: Jump to command.
 Synchronize with Trace View: Synchronize all open views to that location in the
trace.
 Fit to Graph Area: Zoom to fit.
 Hide: Do not display the graph.
To synchronize all open views to that location in the trace, double‐click the graph.
