Teledyne LeCroy Display Options
362 Sierra M122 SAS/SATA Protocol Analyzer User Manual
Formats Display Options
For each type of data in each group of data, the program has a default data format.
Examples of number data formats are Binary, Decimal, and Hexadecimal. An example of a
text data format is ASCII.
To specify a data format for an information type, in the Color/Format/Hiding tab, select a
row (such as Data) in the Group and Color column and expand it.
Select a data type in the Group.
Select a format in the Format section. The following formats are available:

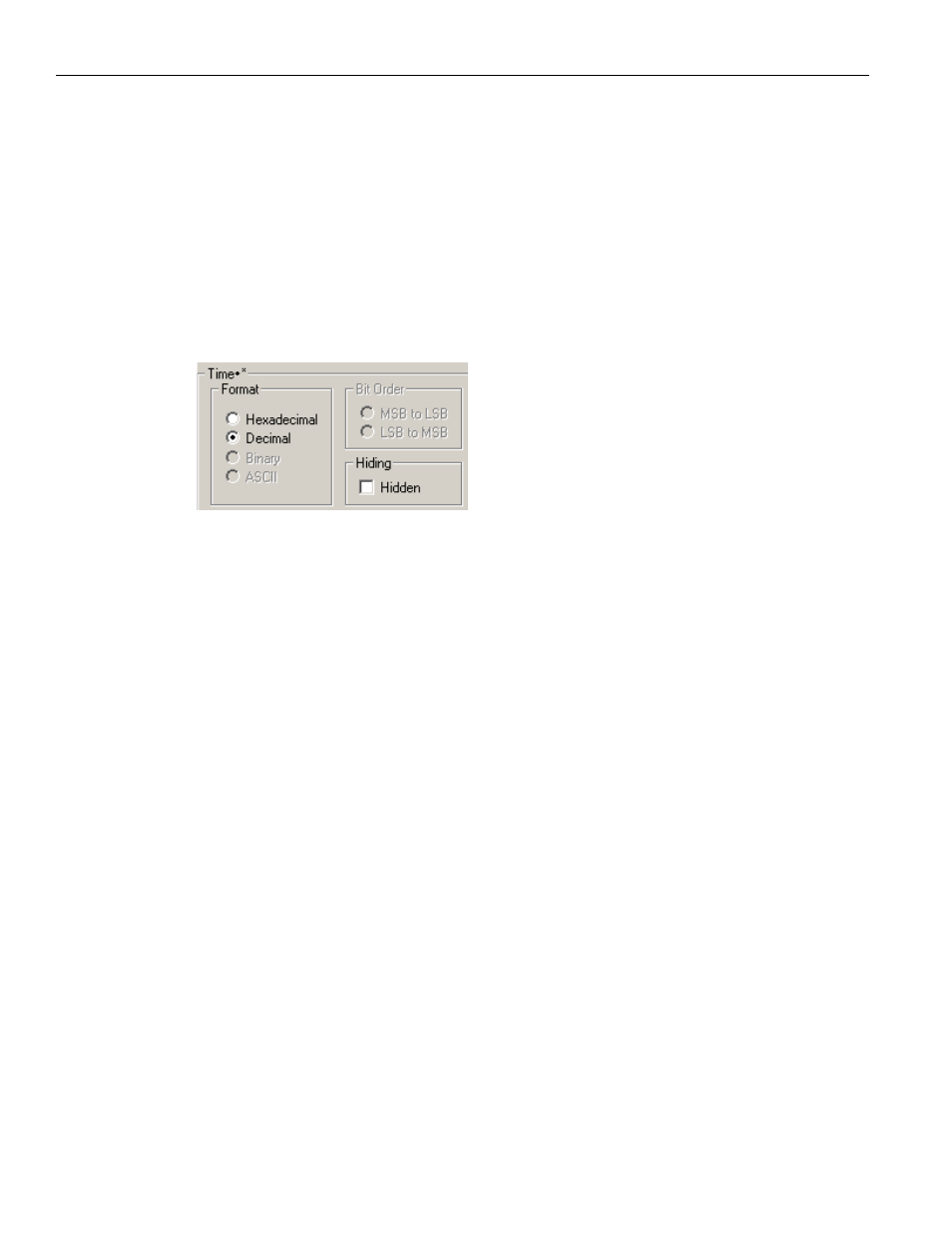

Figure 5.30: Formats
If available, select Bit Order in the Format section. The options are MSB to LSB or LSB to
MSB.
Hiding Display Options
By default, no data is hidden. You can hide any group of data and any type of data.
To hide one or more fields, select the Group and Data type in the Group and Color
column, then click the Hidden checkbox in the display or the Hidden checkbox in the
Hiding section of the Format section.
Level Hiding Options
By default, nothing is hidden. You can hide:
 Packet Types
 Primitives
 Source Addresses
 Destination Addresses
 Data Length
 SMP Frames
 SSP Frames
 Channels
 FIS Types
 FIS Ports
 Gen Global Settings
