Teledyne LeCroy SAS/SATA Software Menus and Toolbars
80 Sierra M122 SAS/SATA Protocol Analyzer User Manual
Click the down arrow next to the Primitive dropdown list, scroll the list to choose a
primitive on which to trigger, and click OK.
Note:
Users need to exclude the ALIGN capture for the SAS SOF / EOF trigger and exclude the XXX
capture for the SATA SOF / EOF trigger, in order for the trigger to precisely display on those
primitives in the Link Data frame.
Note: Check the box to the right of the Primitive Type to use the logical NOT.
.

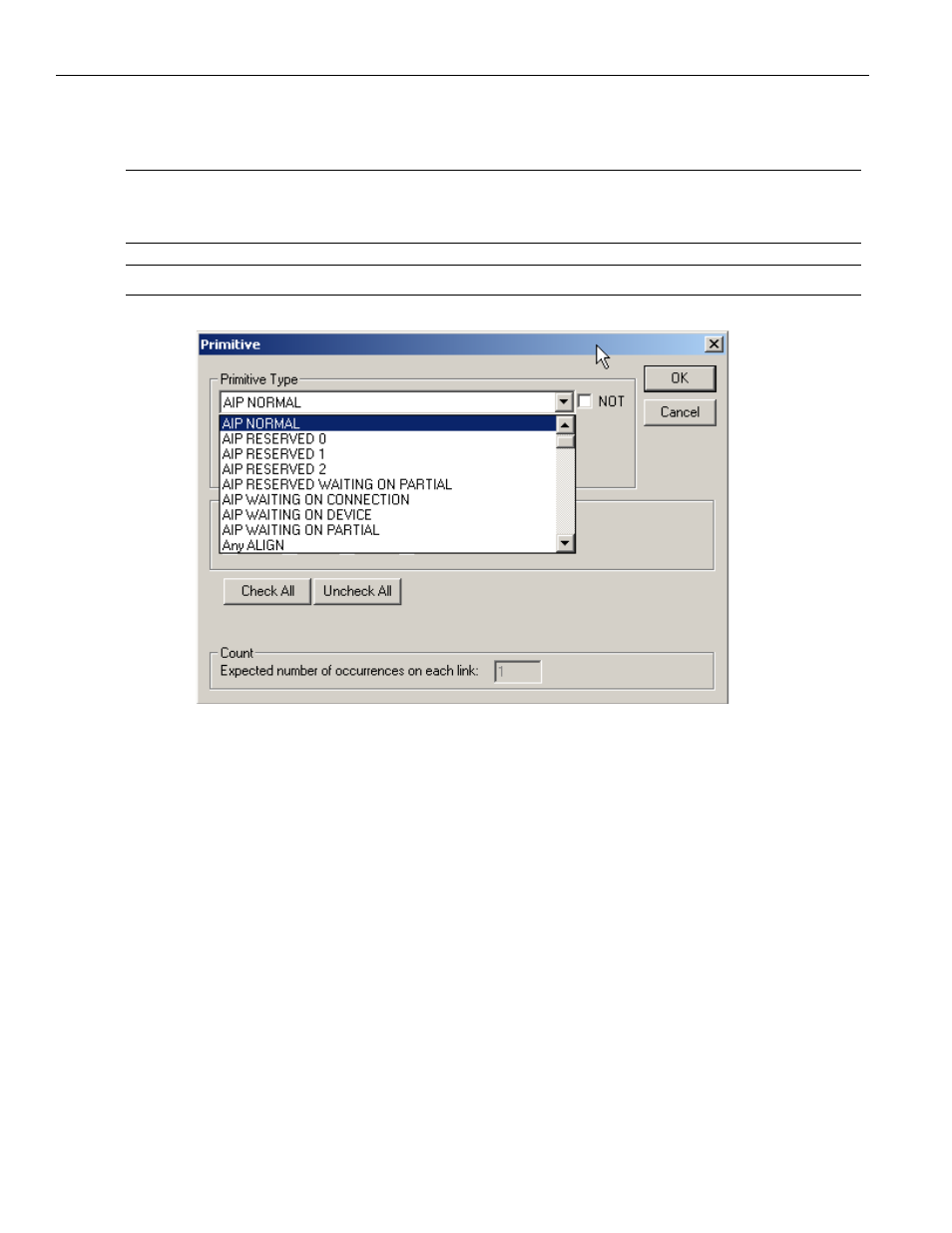

Figure 2.45: SAS: Primitive Selection Choices
SAS vs. SATA: SATA Dialog has different choices.
Primitive Traffic Speed Option (SATA only)
You can change the speed for triggering as well as search by speed for Primitives.
