Sierra M122 SAS/SATA Protocol Analyzer User Manual 103
SAS/SATA Software Menus and Toolbars Teledyne LeCroy
2.2.19 Add a Project Note
To enter and save information about the current project, click the Notes tab and enter the
data about the project.

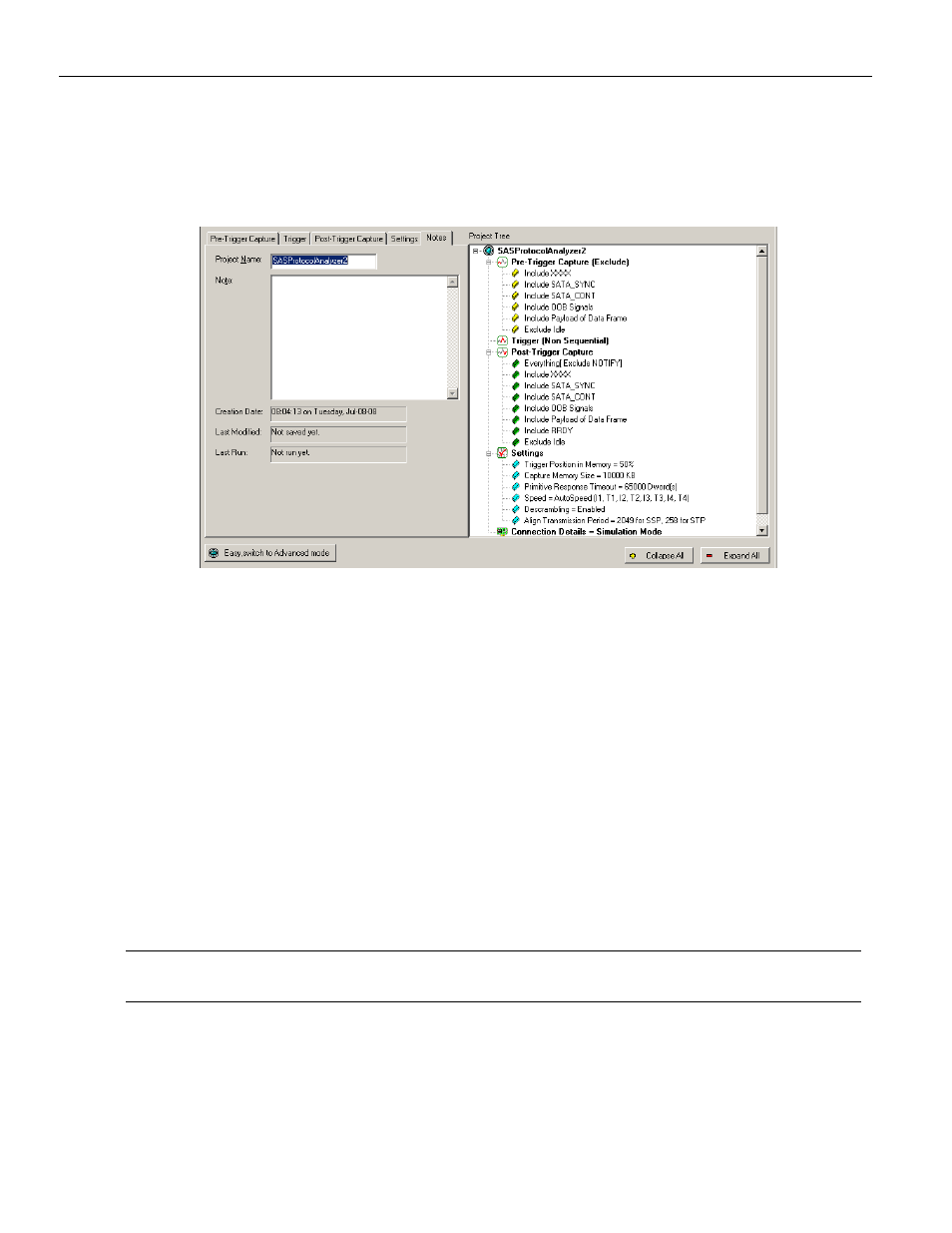

Figure 2.73: Project Notes Tab
2.2.20 Advanced Mode (User-Defined)
Advanced Mode expands Analysis capability by allowing you to program complex
triggering and data capture projects.
The Advanced Mode is a state machine with up to 23 different states. You can program
each state individually to:
 Trigger on a different event or trigger unconditionally.
 Capture Everything, Nothing, or a user‐defined pattern.
 Include up to three ELSE IF statements, allowing a jump to any other state based
on a user definition.
 Use up to three timers, which you can set to a maximum value of 42949 ms. You
can set a timer in the state or continue the timer set in the previous state.
 Output an external trigger High or Low.
Note: In Advanced Mode, events on each link are counted independently. A condition is met if the
number of events on a link equals the defined occurrence.
