Sierra M122 SAS/SATA Protocol Analyzer User Manual 135
Analysis Teledyne LeCroy
SAS Address Report (SAS)
To display the SAS Address Report, click the SAS Address tab.The SAS Address Report
displays the report data in columns with the following information. See the following
screen capture:
 Source SAS Address: All, Custom, or an address
 Destination SAS Address: All, Custom, or an address
 Protocol Type: SMP, SSP, STP
 Frame Type: All, Custom, Command, Data, DMA Activate,
Register Host To Device, Register Device To Host, Response, XFER_RDY
 Count: All, Custom, or a number

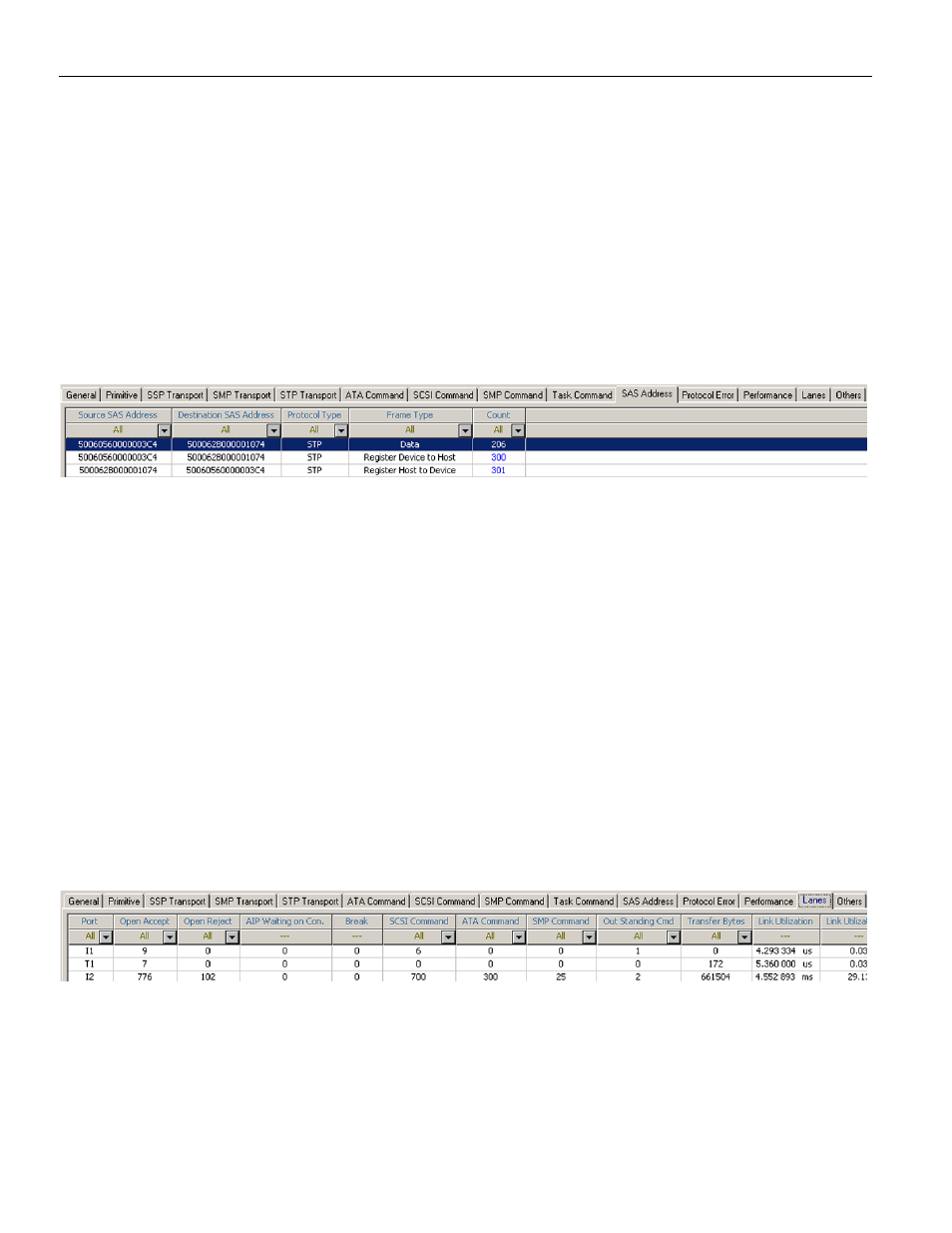

Figure 3.39: SAS: SAS Address Report
Lanes Report (SAS)
To display the Lanes Report, click the Lanes tab. The Lanes Report displays the report data
in columns with the following information:
 Port
 Open Accept: All, Custom, or a number
 Open Reject: All, Custom, or a number
 AIP Waiting on Con.
 Break
 SCSI Command: All, Custom, or a number
 ATA Command: All, Custom, or a number
 SMP Command: All, Custom, or a number
 Out Standing Command: All, Custom, or a number
 Transfer Bytes: All, Custom, or a number
 Link Utilization (time)
 Link Utilization%
Figure 3.40: SAS Lanes Report
