Teledyne LeCroy Display Options
360 Sierra M122 SAS/SATA Protocol Analyzer User Manual
 Select Display Options under Setup on the Menu Bar.
OR
 Click on the Toolbar.
You can select Color/Format/Hiding, Level Hiding, and Headers display options. The
following sections describe these display options.
Restore Factory Presets sets all Display Options values to the installed values.
5.12.1 Color/Format/Hiding Display Options
To modify the colors, formats, and hiding options, select the Color/Format/Hiding tab.

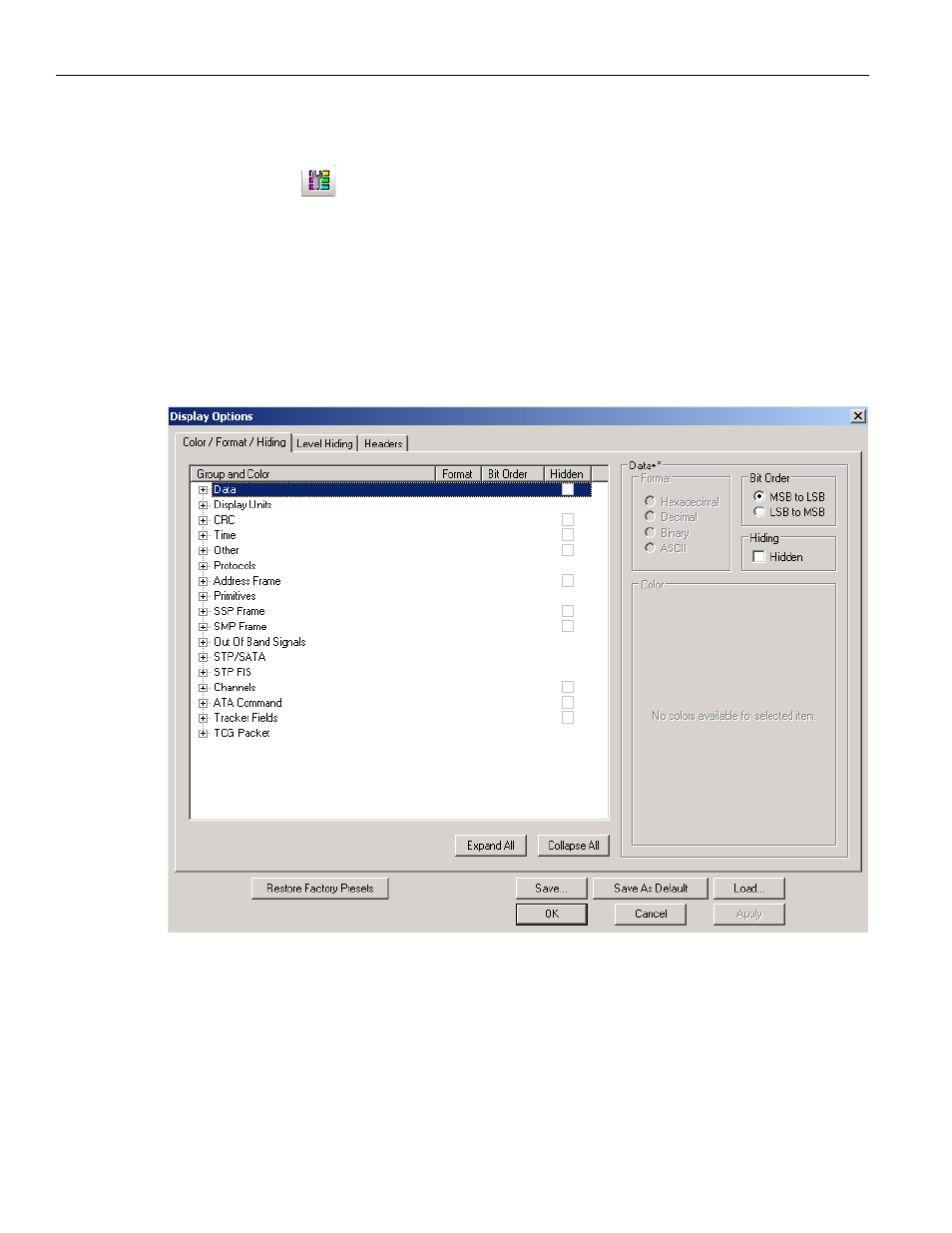

Figure 5.27: Display Options Dialog - Color, Format, Hiding Tab
Color Display Options
The program uses a default set of colors for each type of data in each group of data. The
colors and color combinations are appropriate for most graphic systems. You can alter
any color.
To specify a color for an information type, in the Color/Format/Hiding tab, select a row
(such as Data) in the Group and Color column and expand it.
