Sierra M122 SAS/SATA Protocol Analyzer User Manual 19
Hardware Setup Teledyne LeCroy
1.9 Hardware Setup
1.9.1 Separate Systems
When using the analyzer, it is recommended to use a system to generate bus traffic and a
second system to run the software, to avoid characterization of traffic generated by the
analyzer.
1.9.2 Connecting in General
Note: You must install the software before connecting the analyzer to the host machine for the first
time.
To set up the analyzer:
1. Plug the power adapter into the unit, and then plug the power adapter into a 100V–
240V, 50Hz–60Hz, power outlet. Turn on the Power switch.
At power on, the analyzer will go through initialization as shown on the LCD display.
2. Connect the USB cable between the Sierra M122 USB port and a USB port on the
host machine. The host machine’s operating system detects the analyzer and driver
files.
3. Connect the analyzer as shown in Figure .

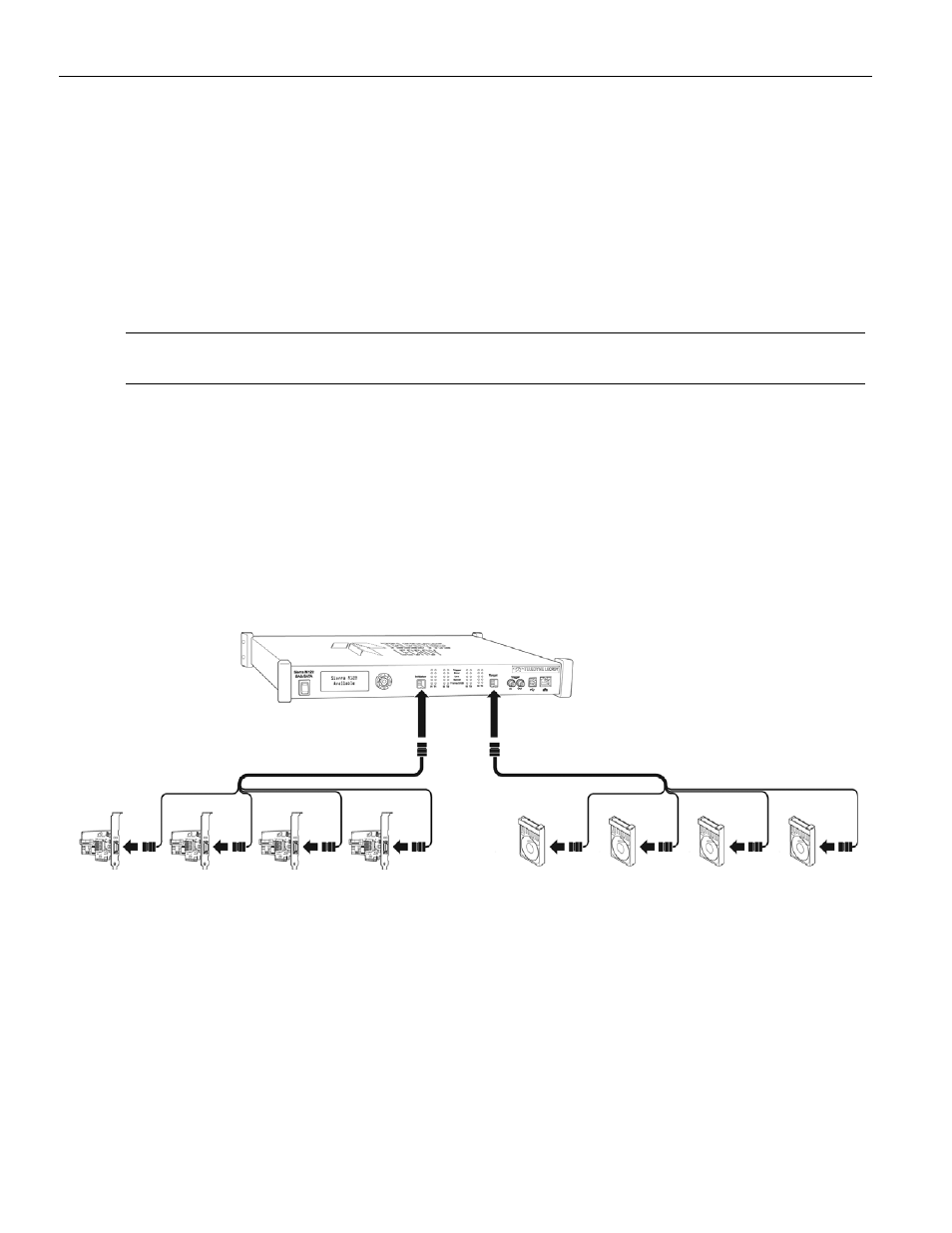

Figure 1.4: Analyzer Single Lane Connections
