User Defined
You can define additional items for inclusion in the Histogram by clicking the
button to open the User Defined dialog.

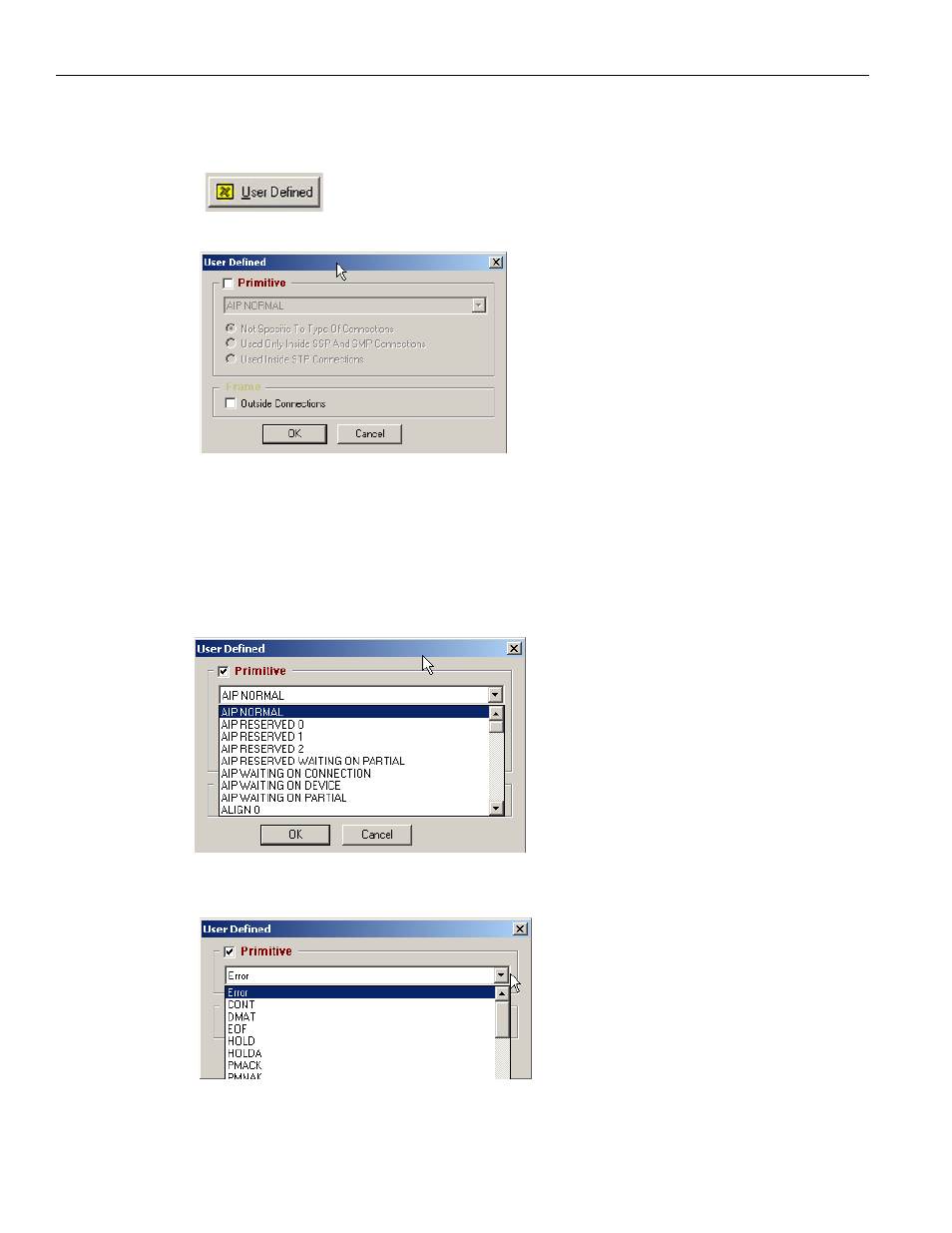

Figure 3.60: SAS: Histogram User Defined Dialog
You can include Primitive and/or Outside Connections frames.
Primitives
To include Primitives, check the Primitive check box, click the down arrow on the
Primitive list box, and choose a Primitive.
Figure 3.61: SAS: Choosing a Primitive
.
Figure 3.62: SATA: Choosing a Primitive
Check a Connection Type option radio button, if available, and click OK.
