Issue 4.3.C IP Director Version 4.3 – User Manual – Part 3: Ingest and Play-Out
EVS Broadcast Equipment
46
Note
For the Grab Frame icon to be displayed in the Control
Panel application, the administrator needs to have
properly set up the options in the Thumbnails tab of the
Remote Installer. Among others, the Grab Type “Grab
to File” needs to be selected.
4.6 CLIP CREATION PANE
The Clip Creation pane provides the functions to create clips.

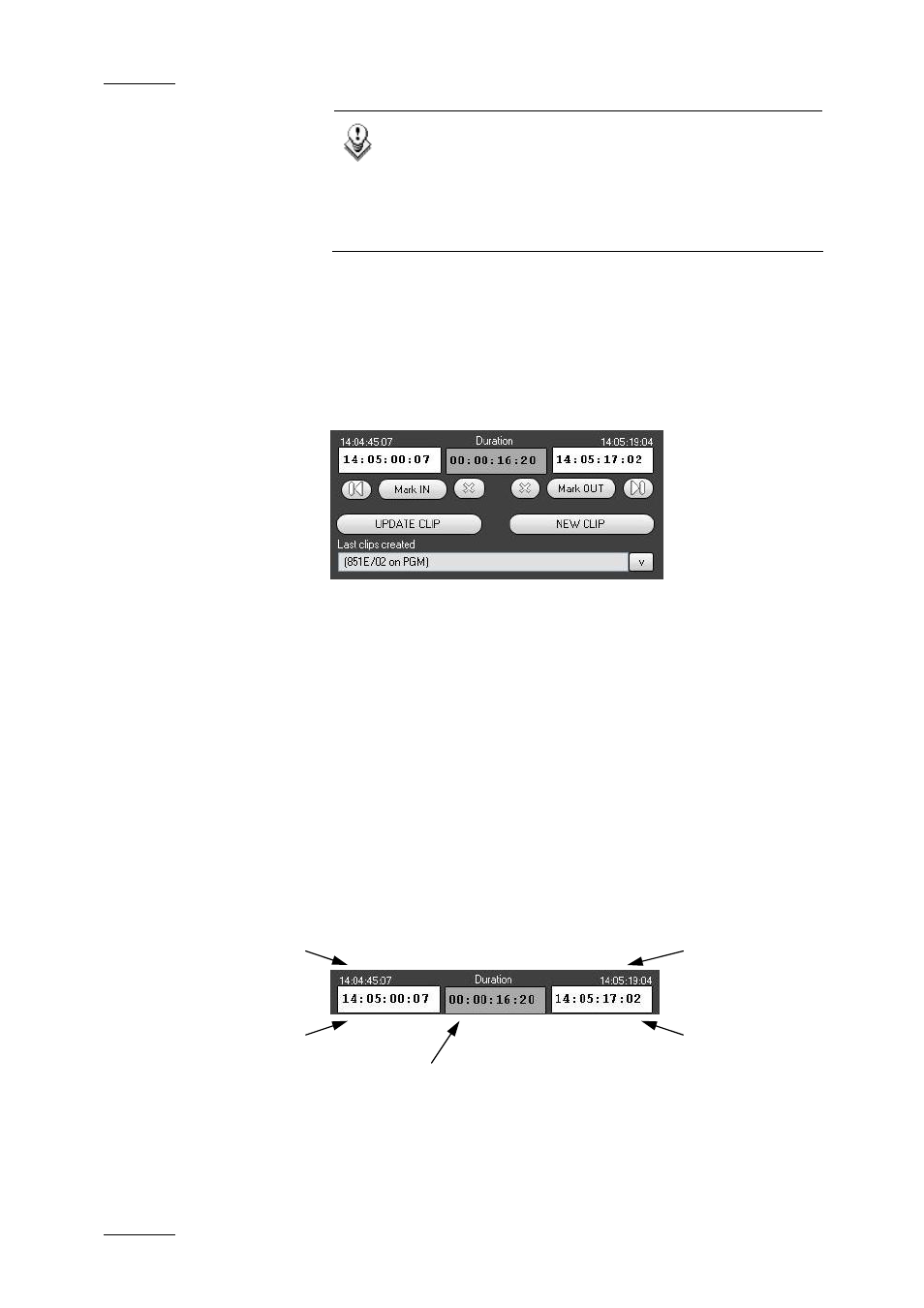

The screenshot below shows the Clip Creation pane:
You will find below a description of the various functions
available in the Clip Creation pane:
4.6.1 T
IME
I
NFORMATION
The following time information is displayed as follows depending
on the loaded media:
• When you load a clip, all time information fields are filled.
• When you load a train, no time information is displayed.
• When you click the Mark IN and/or Mark OUT icons to create
a new clip from the train, the fields 2, 4 and 5 in the
screenshot below display the new values defined. As long as
the clip is not saved, the values 1 and 3 will not be
displayed.
1. Limit IN field: start timecode of the initial guardband
2. Short IN field: timecode of the IN point
3. Limit OUT field: end timecode of the final guardband
1 3
5
4 2
