IP Director Version 4.3 – User Manual – Part 3: Ingest and Play-Out
EVS Broadcast Equipment

Issue 4.3.C

27

4.2 OVERVIEW OF THE CONTROL

PANEL

The Player Control Panel has been designed with various panes
allowing its size to be changed depending on the features in use.

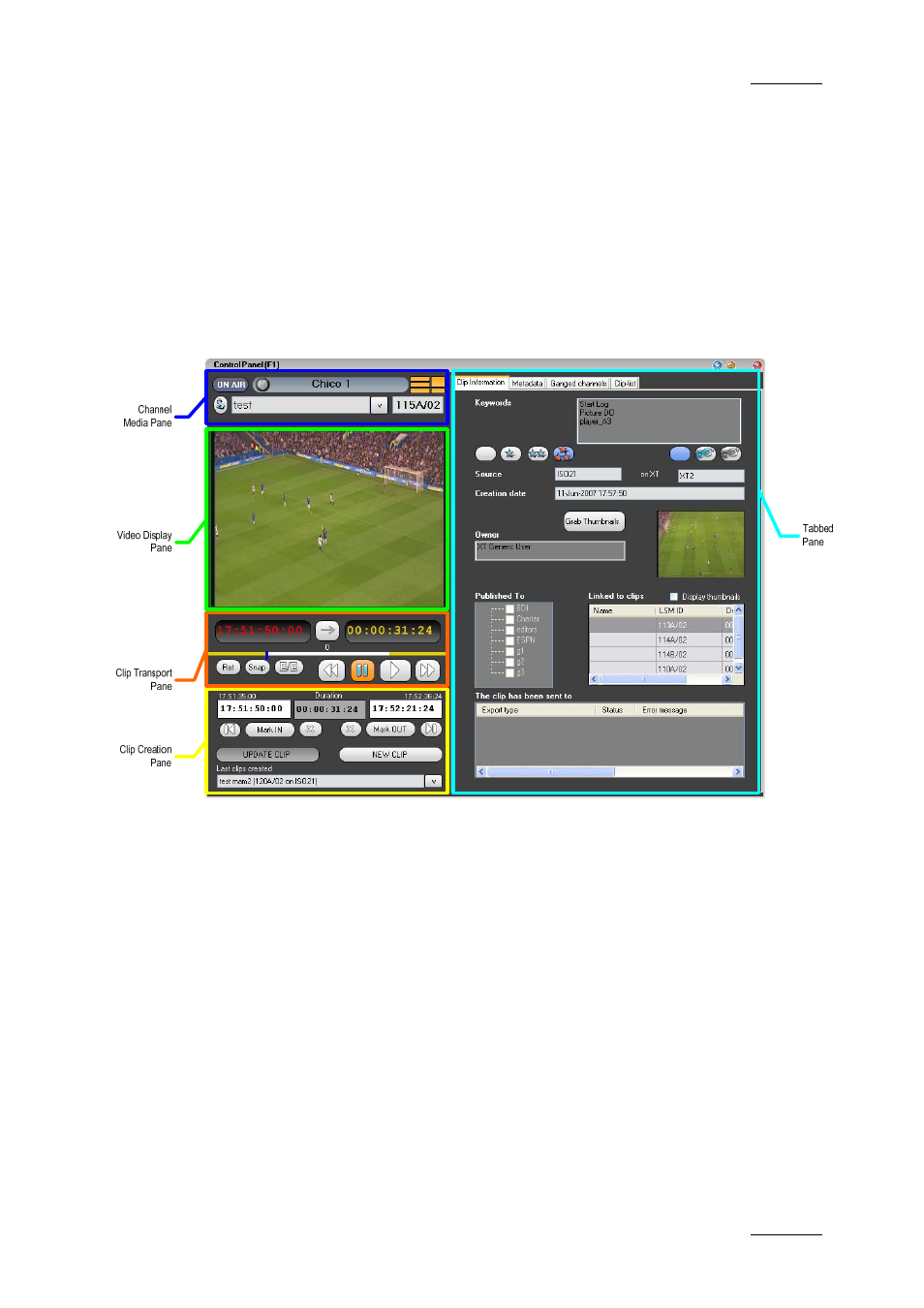

When fully expanded, the panel window looks like the screenshot
below:

The following outline details the type of information available in
the various panes displayed in the above screenshot:

The Control panel main window contains five main panes:

C

HANNEL

M

EDIA

P

ANE

This pane, highlighted in dark blue on the above outline,
provides the basic functions to load and view a clip, a play-list or
the train of a recorder. It also provides time information on the
loaded element.

For detailed information on the Channel Media pane, refer to the
4.4Channel Media Pane” section, on page 34.
