Issue 4.3.C IP Director Version 4.3 – User Manual – Part 3: Ingest and Play-Out
EVS Broadcast Equipment
178
6.10.3 XT
SERVER
S
ELECTION
P
ANE

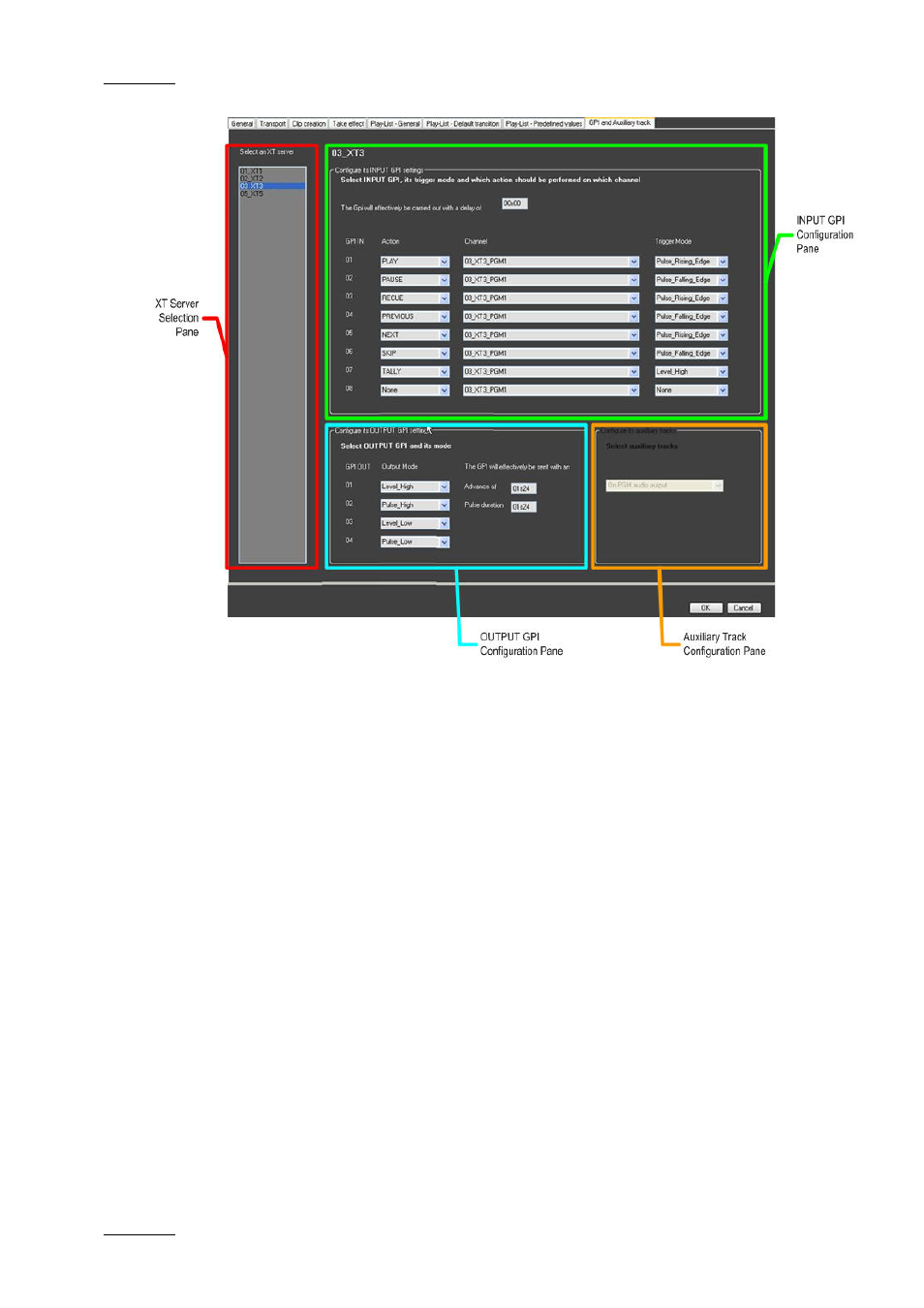

The XT server Selection pane displays all the XT servers
available on the XNet network. The Settings for GPIs and
Auxiliary track audio outputs are made for each XT server being
controlled by IP Director. Therefore the XT server must be
selected from the list and then have the settings applied.
Selecting an XT server in the server list will display the
corresponding INPUT and OUTPUT GPI settings in the INPUT
GPI and OUTPUT GPI Configuration panes. This will allow the
user to modify these settings for the selected server.
The name of the selected server is displayed at the top of the
INPUT GPI Configuration pane.
