Issue 4.3.C IP Director Version 4.3 – User Manual – Part 3: Ingest and Play-Out
EVS Broadcast Equipment
122
6.6.4 O
N
-A
IR
D
ISPLAYS
I
NFORMATION
D
ISPLAY
S
ETTINGS
The Information displays on the On-Air Panel can display
different parameters dependant on how they have been set in the
play-list settings accessed from the tools>settings>Play-List-
general menu. Please see the ‘Display 3rd time information in
the on-air Panel’ section, on page 170 of the user’s manual for
more information.

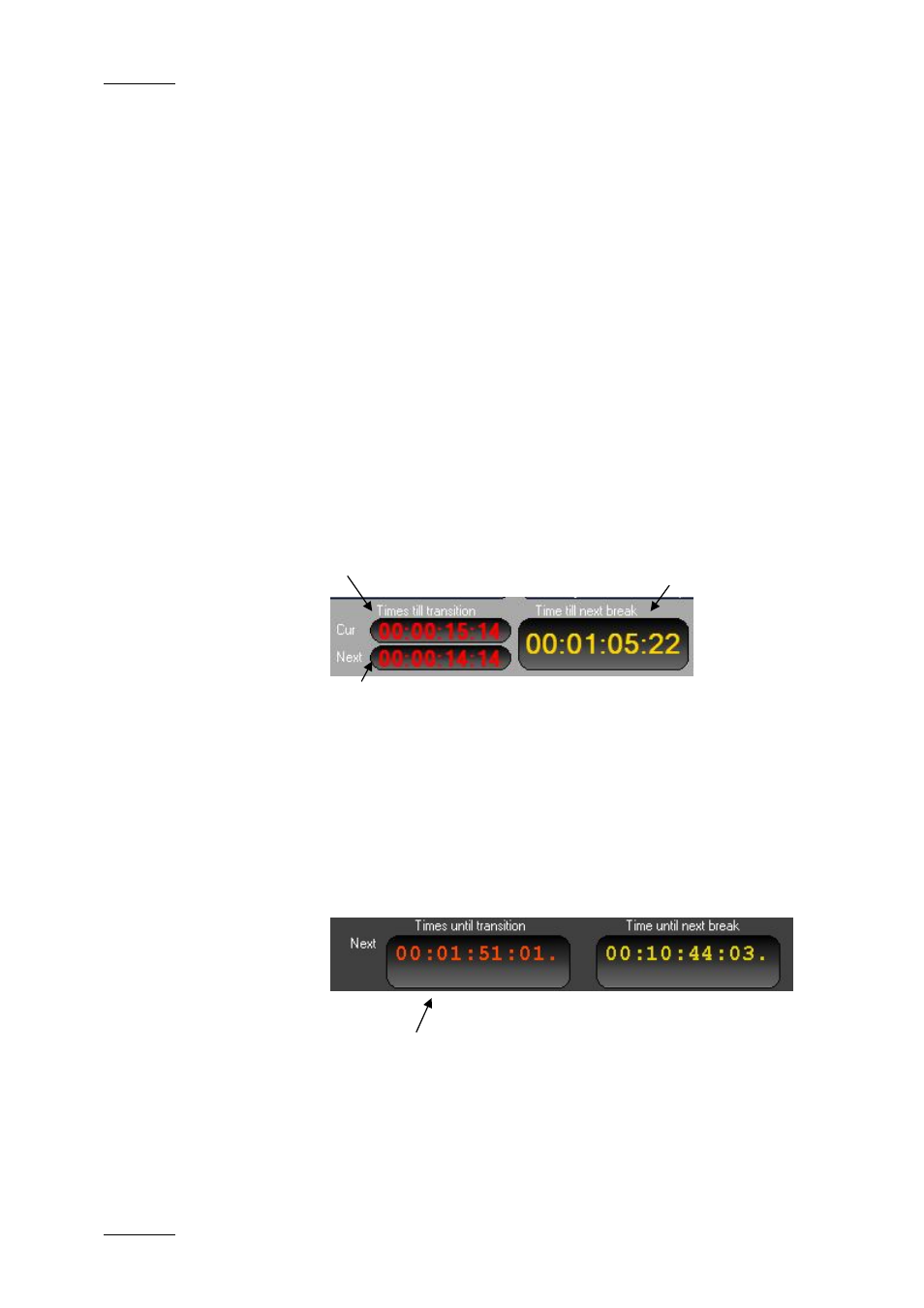

Times to transition
If the parameter “Display time till the end of the current element”
is checked in the play-list settings, the following controls are
displayed.
If the parameter “Display time till the end of the current element”
is unchecked in the play-list settings, the following controls are
displayed:
The ‘Times till transition’ information (cur and next) is calculated
taking into account the current speed. If the speed is zero, or
the play-list is in pause, the remaining time information will be
until the end of the play-list if it is played again from this point.
The ‘Time till next break’ information is also calculated taking
Remaining time till the end of
the current element.
Remaining time till the next element starts. The
difference between the 2 values is the effect
duration .
Remaining time till the next break in the play-list.
If the play-list has no break, the remaining time
till the end of the play-list is displayed.
Remaining time till the next element starts.
