Issue 4.3.C

IP Director Version 4.3 – User Manual – Part 3: Ingest and Play-Out

EVS Broadcast Equipment

148

GPI

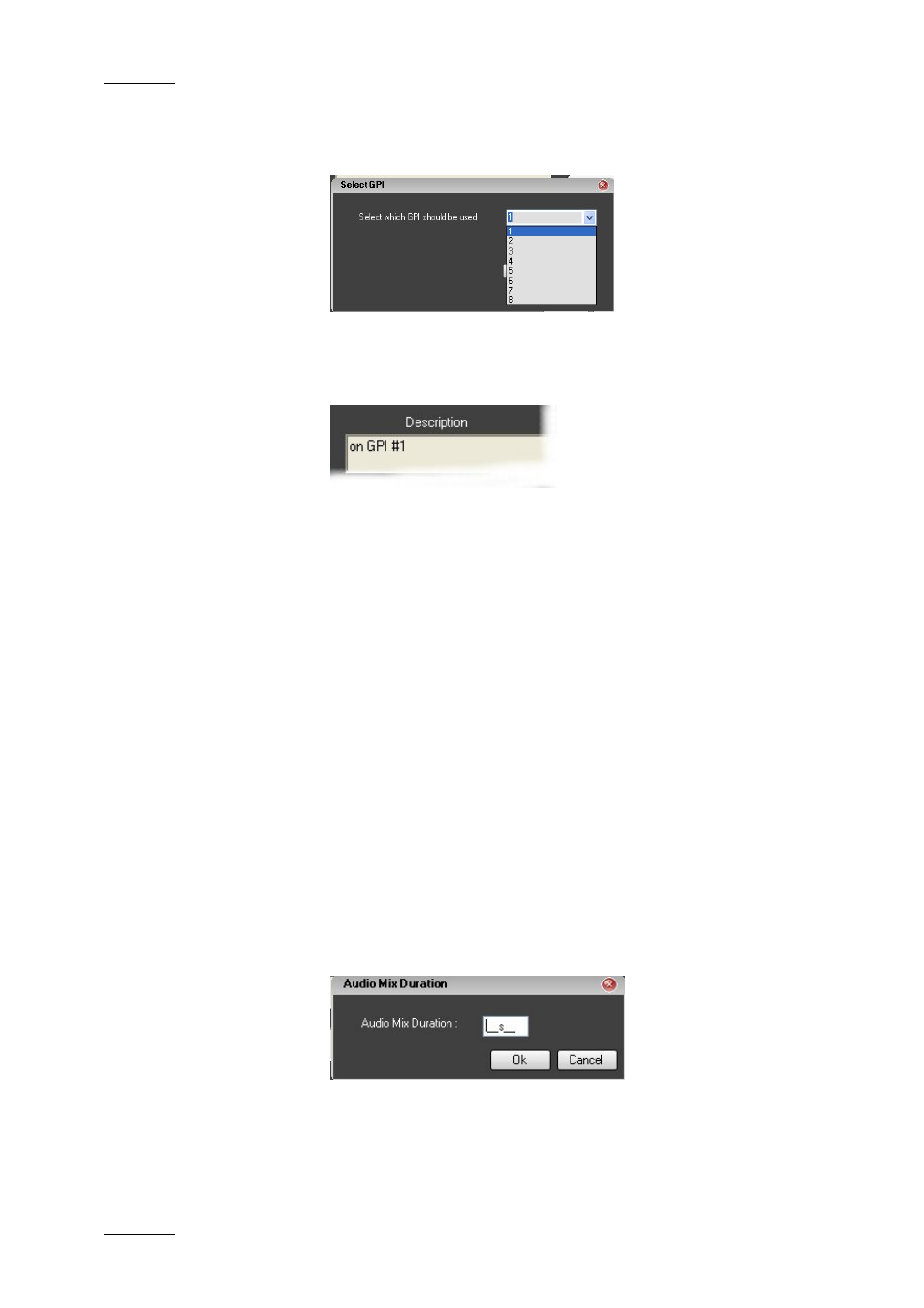

There are eight GPI triggers available, select one and press OK
to validate the choice, the corresponding GPI information is

displayed in the description area as shown below.

If Cancel is selected, the operation is aborted and the tag check
box is unchecked, the corresponding tag line returns to the

‘empty’ values.

Hide On

When Hide On is applied as a tag, the video output turns

instantly to a black screen at the timecode value given to the
tag.

Hide Off

When Hide Off is applied as a tag, the video output turns
instantly from a black screen to the video of the element at the
timecode value given to the tag.

Mute On

When Mute is selected, a popup window is displayed asking for
the entry of the duration for the audio mix used in the transition
to mute the audio of the element at the timecode specified.

When this window is opened, the last value entered is displayed.
Limit values are 00s00 to 20s00.

If OK is clicked to validate the operation, the duration entered is

displayed in the description area for the tag.
