174 C HAPTER 9: C ONFIGURING N ETWORK D OMAINS
Network Domain
Scenario The following scenario illustrates how to create a Network Domain
named globaldom consisting of three Mobility Domains at two
geographically separated sites. Figure 7 below illustrates this scenario.

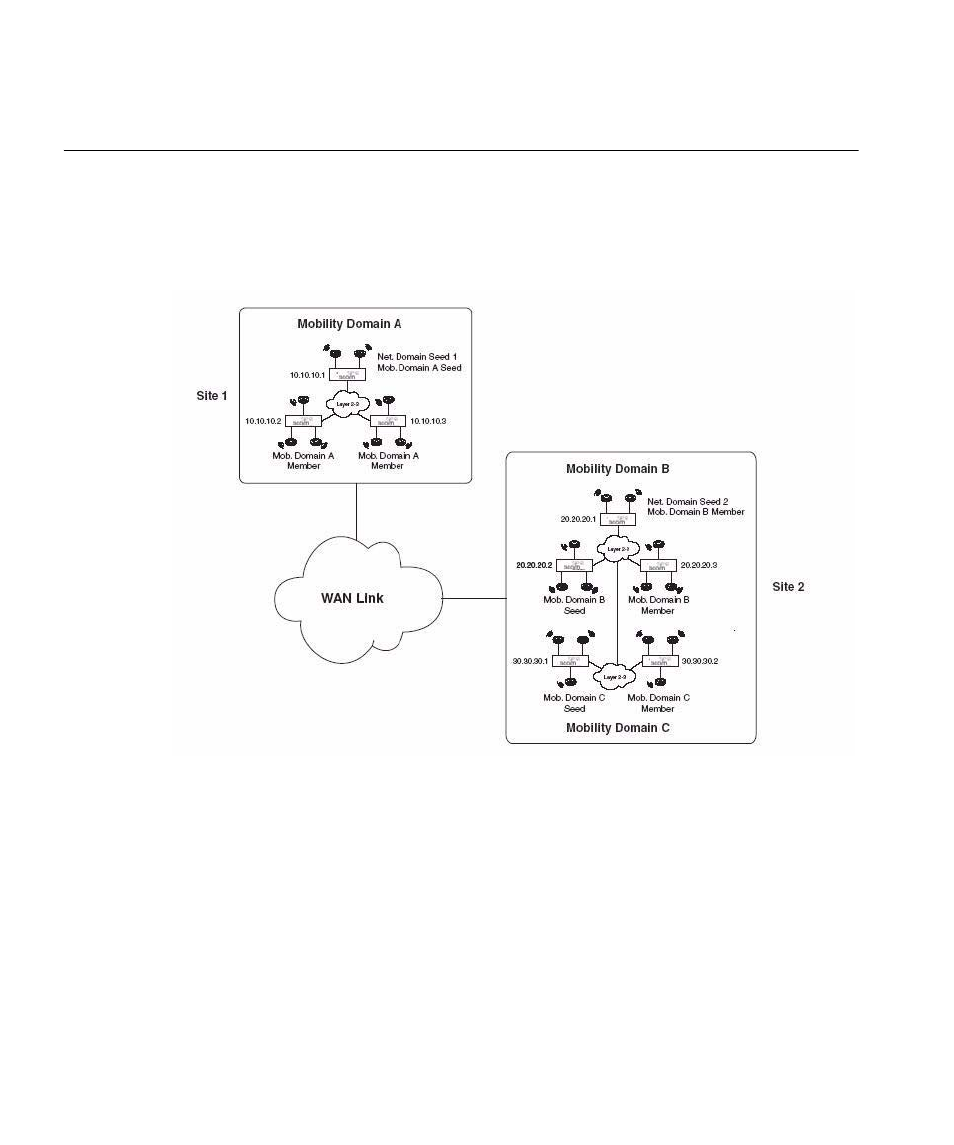

Figure 7 Network Domain Scenario
In this scenario, there are three Mobility Domains: A, B, and C. Mobility
Domain A is located at Site 1, and Mobility Domains B and C are located
at Site 2. There are two Network Domain seeds, one at each site, that
share information about the VLANs in the three Mobility Domains. The
Network Domain seed at Site 1 is also the seed for Mobility Domain A.
The Network Domain seed at Site 2 is used by both Mobility Domains B
and C. At least one Network Domain seed is aware of each WX switch in
the installation and maintains an active TCP connection with it.
