About The XDC Power Supply
Front Panel
24 Operating Manual for XDC Series Power Supply

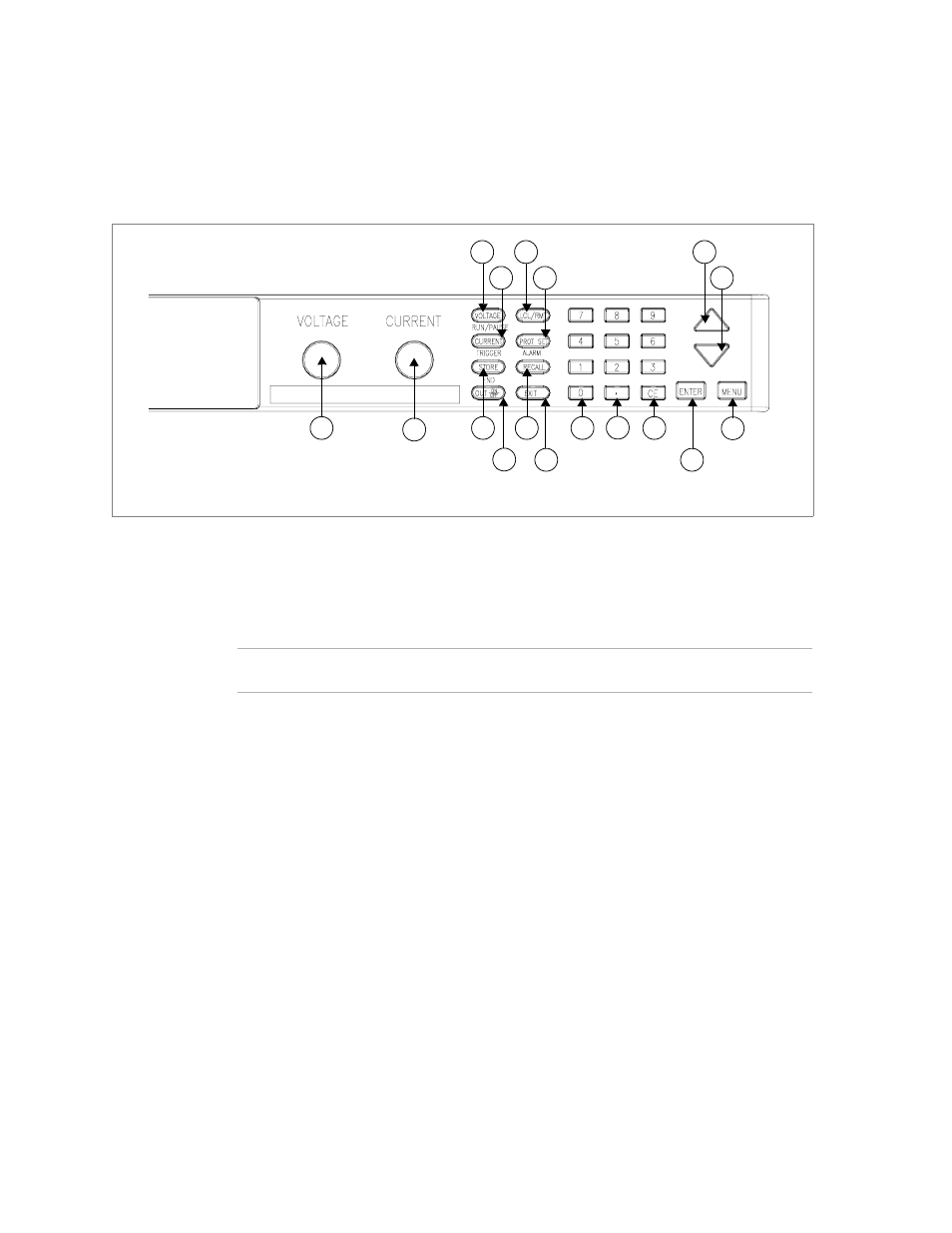

Figure 1.3 Keypad
1. Voltage knob: Turn knob to increase or decrease output voltage. (This is a
velocity- sensitive rotary encoder.)
2. Current knob: Turn knob to increase or decrease output current limit. (This is
a velocity-sensitive rotary encoder.)
3. VOLTAGE set key: View and set voltage output setpoint.
RUN/PAUSE Auto Sequence Program: Start a selected program or pause the
program.
4. CURRENT set key: View and set current output setpoint.
TRIGGER for Auto Sequence Program: Apply a trigger when requested.
This key may also be used to advance to the next step in the program by pressing
and holding.
5. STORE settings key: Save power supply output settings to one of ten locations.
END Auto Sequence Programming: Stop the program. The program will start
from the beginning when RUN is pressed.
6. OUT ON/OFF key: Toggle between Output ON and Output OFF.
7. LCL/RMT key: Toggle between local mode and remote mode (or Go to Local
for GPIB operation) except during calibration.
1 2
3
4
5
6
7
8
9
10
11 12 13
16
17
14
15
Note The secondary functions for keys 3 to 5 listed below operate when the power supply
is in Auto Sequence mode.
