Mechanical specification, Weight, Size – Xantrex Technology XDC User Manual
Page 245: Figure e.1, Power supply dimensions (6000 watt unit)
Specifications and Characteristics
Mechanical Specification
Release 3.0
243
Mechanical Specification
Weight 6000 W: approx. 75 lb. (34 kg) for 10 V-600 A unit, without packaging
12000 W: approx. 170 lb. (77 kg) for 10 V-1200 A unit, without packaging
Size

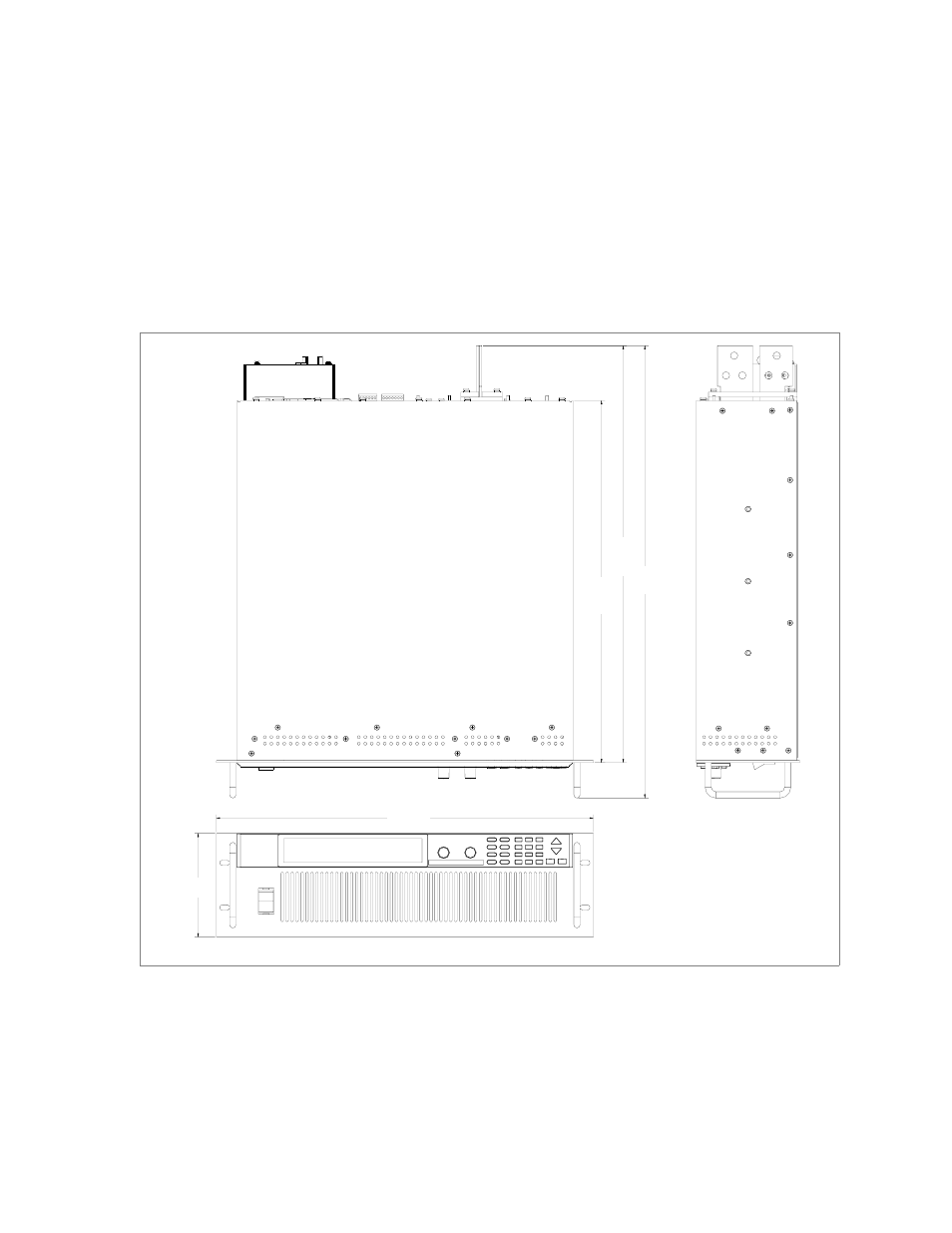

Figure E.1 Power Supply Dimensions (6000 Watt unit)
22.78 in.
19 in.
21 in.
18.2 in.
5.22 in.
483 mm
133 mm
462 mm
533 mm
579 mm
