4. System Components

MSAP2000 Technical Manual V3.0

4-17

4.10. Outdoor

Cabinet

The MSAP2000 RT can also be installed inside a cabinet. The
cabinet can be ground-based, hung, or wall-mounted, according to
different cabinet sizes and installation requirements. The RT
cabinet can house several accessories such as battery rectifiers

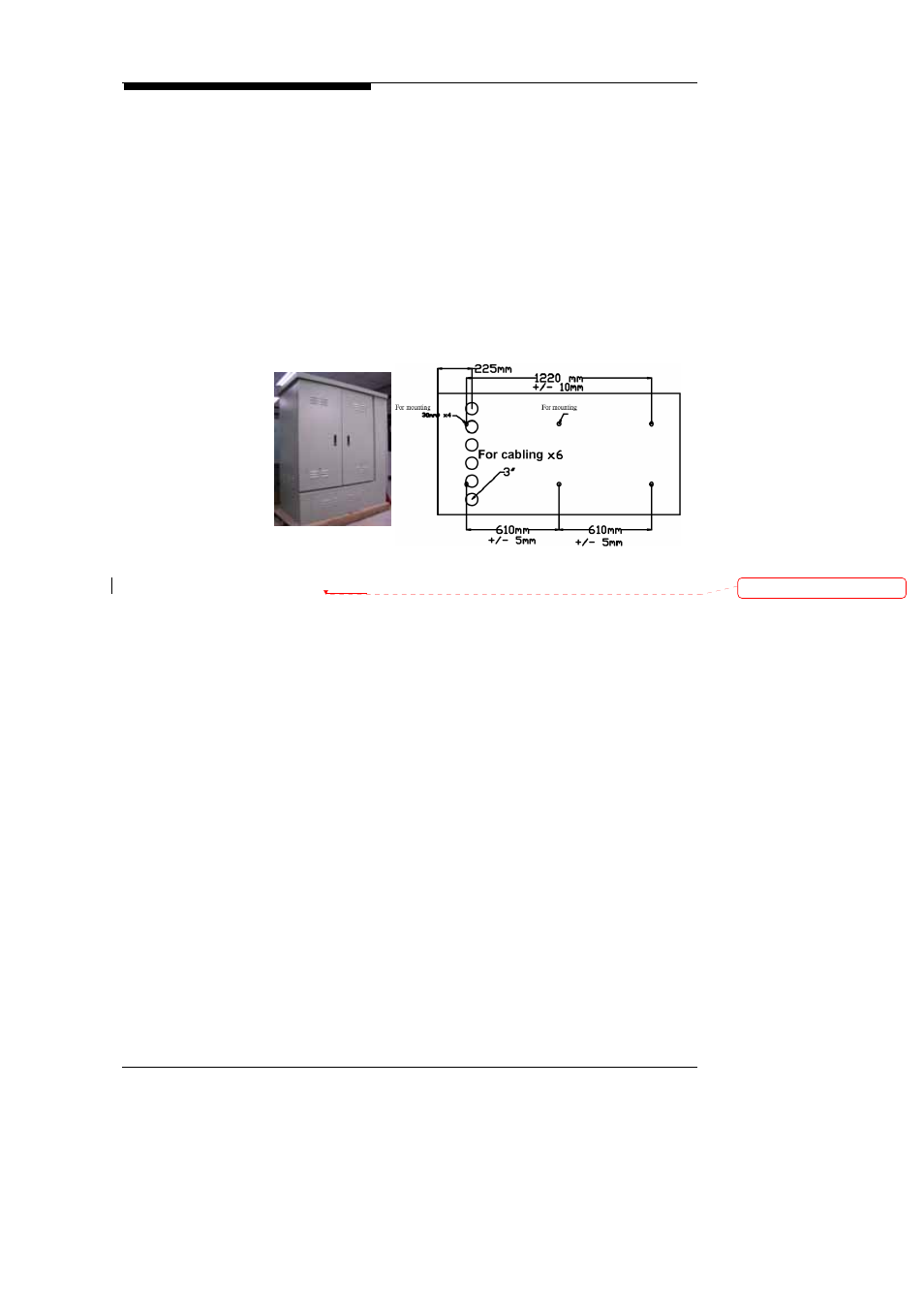

and standby batteries. The following example is the cabinet base
has six outlets for optic and electric cables; optic/electric power
lines and ground cables can be extended to the MDF via the
cabinet’s 3-inch outlet duct.

* There are several options of the out-door cabinet, please advise
with the

ZyXEL

distributor for suggestions.

Functions and
Accessories

„ The dimension of the above MSAP2000 480 line outdoor

Remote Cabinet (RC) is 1600mm (length) x 800mm (width) x
1765mm (height). The RC is designed for anti-vibratory, and
conforms to FCC 68.302 and ETSI 300019 standards

„ The RC has removable panels and allows convenient

maintenance and setup.

„ The RC comes with a fan power source cooling, Fuse Alarm

panel, Order-wire, Monitoring panel. The ventilation facilities
are used for air circulation and come with a removable air filter.

„ The RC’s batteries can run for 8 hours, and can be

independently disconnected for repair or maintenance. The
battery re-charger can convert AC power to DC power (-48V),
for system operation and battery recharging. Either 110VAC
or 220VAC can be used.

„ The RC base is made of anti-rain, anti-dust and anti-corrosive

material.

„ The RC is equipped with handles for transportation

convenience.

„ The RC can generate open door warnings, AC power

disconnection alarms, stable temperature warning, and
temperature adjustment alarms. The RC’s alarm output is
connected to MSAP2000 alarm input, so that the NMS will
generate alarm reports in the event of an alarm occurrence.

„

The RC is equipped with wire-wrap pins, and

lightening-protection devices.
