4. System Components
MSAP2000 Technical Manual V3.0 4-5

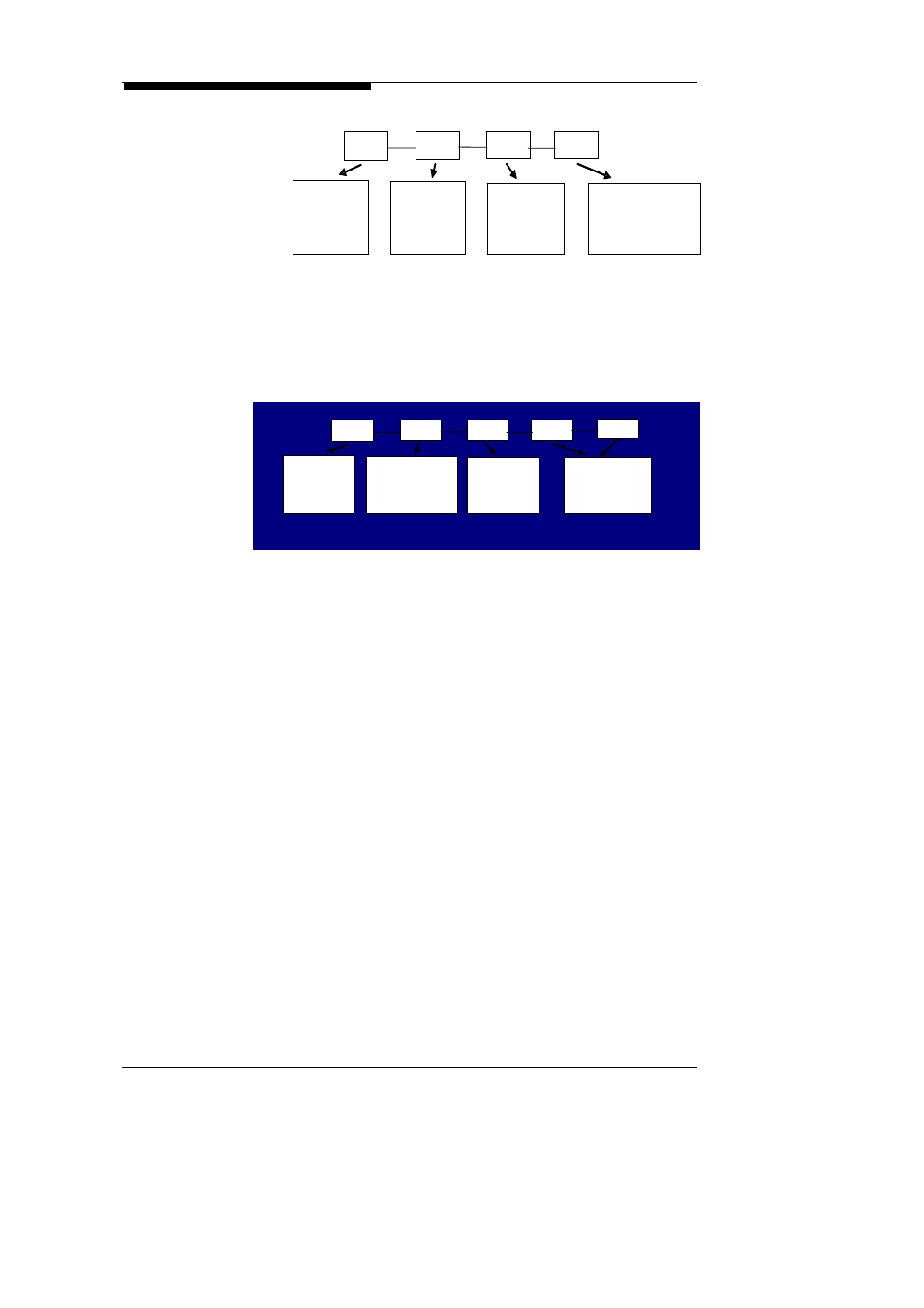

When a QE1M is plugged into the 8 th slot of RT5’s extension shelf, and
assigned to be used as a subscriber module, the 20 th channel in its 4 th
port is shown as RT5-2-8-4-20. (Note: The first extension shelf is
SHELF=2)
COT 1 5 4
NODE=
COT
SHELF= SLOT= 5 port=4
RT5 2 8
4
NODE=
RT5
SHELF= SLOT= 8 PORT= 4
channel=20
20
