7. Product Specification

MSAP2000 Technical Manual V3.0

7-97

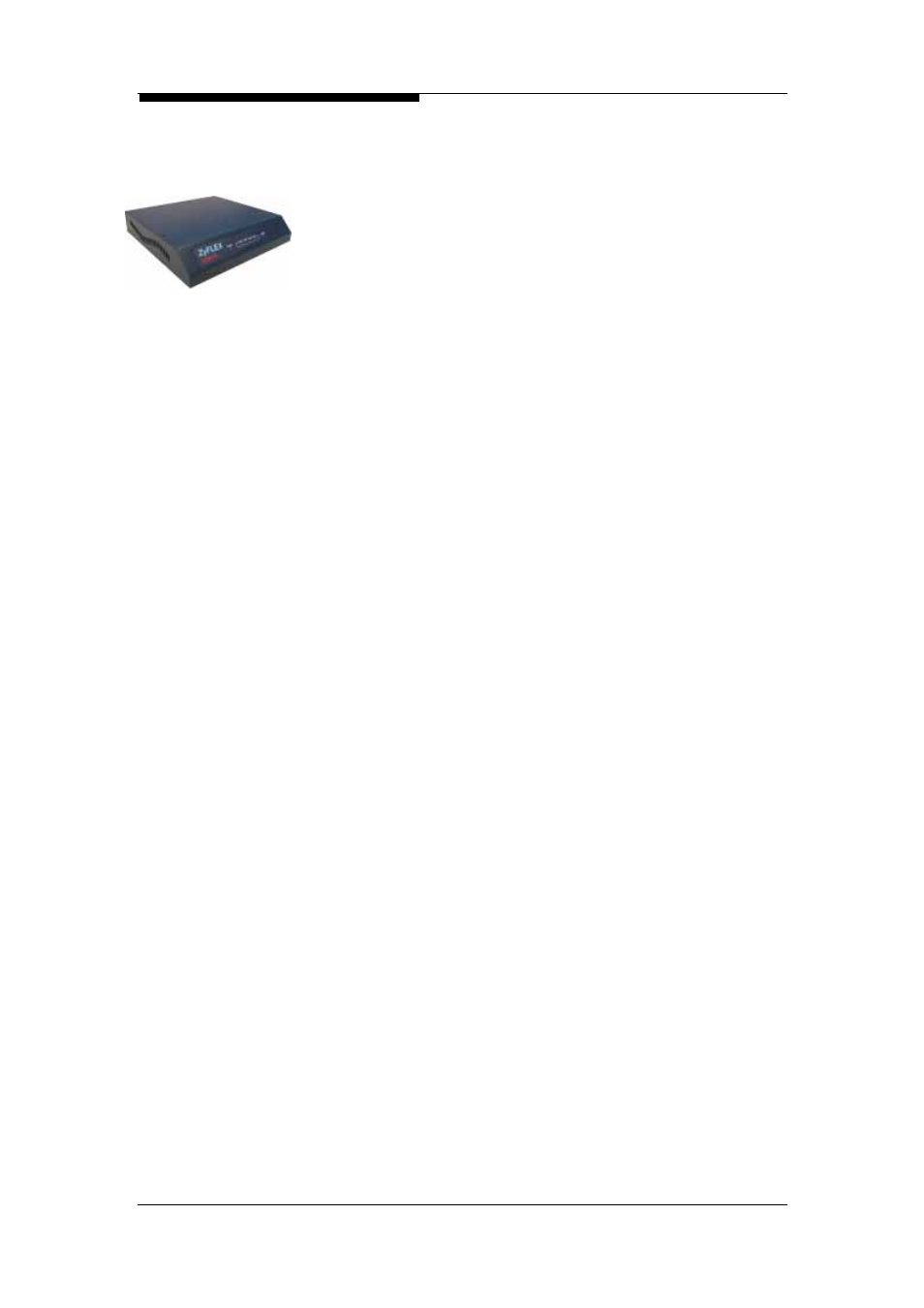

GSH-R Product View

LED Status

Description

PWR (Green)

Green: Power source is functioning
normally

OFF: Power source is cut off


DSL (Green)



ALM (Red)





TST (Orange)



LINK (Green)




CPE (Green)





LINK (Green)




LINK (Orange)


ON: Normal/Synchronized
OFF: Abnormal/ Non-synchronized


ON: Alarm occurrence
OFF: No Alarms have occurred
TWINKLE: Remote Alarm
occurrence


ON: Local or Remote Loopback is
being executed
OFF: No Loopback

ON: Connection to Subscriber
established
OFF: No connection to Subscriber


ON: GSH-R functions as a
Subscriber (RT) end equipment
OFF: GSH-R functions as a COT
end equipment


ON: Connection to Subscriber
established
OFF: No connection to Subscriber


ON/TWINKLE: Data transmission in
progress
OFF: No data is being transmitted
