7. Product Specification

MSAP2000 Technical Manual V3.0

7-91

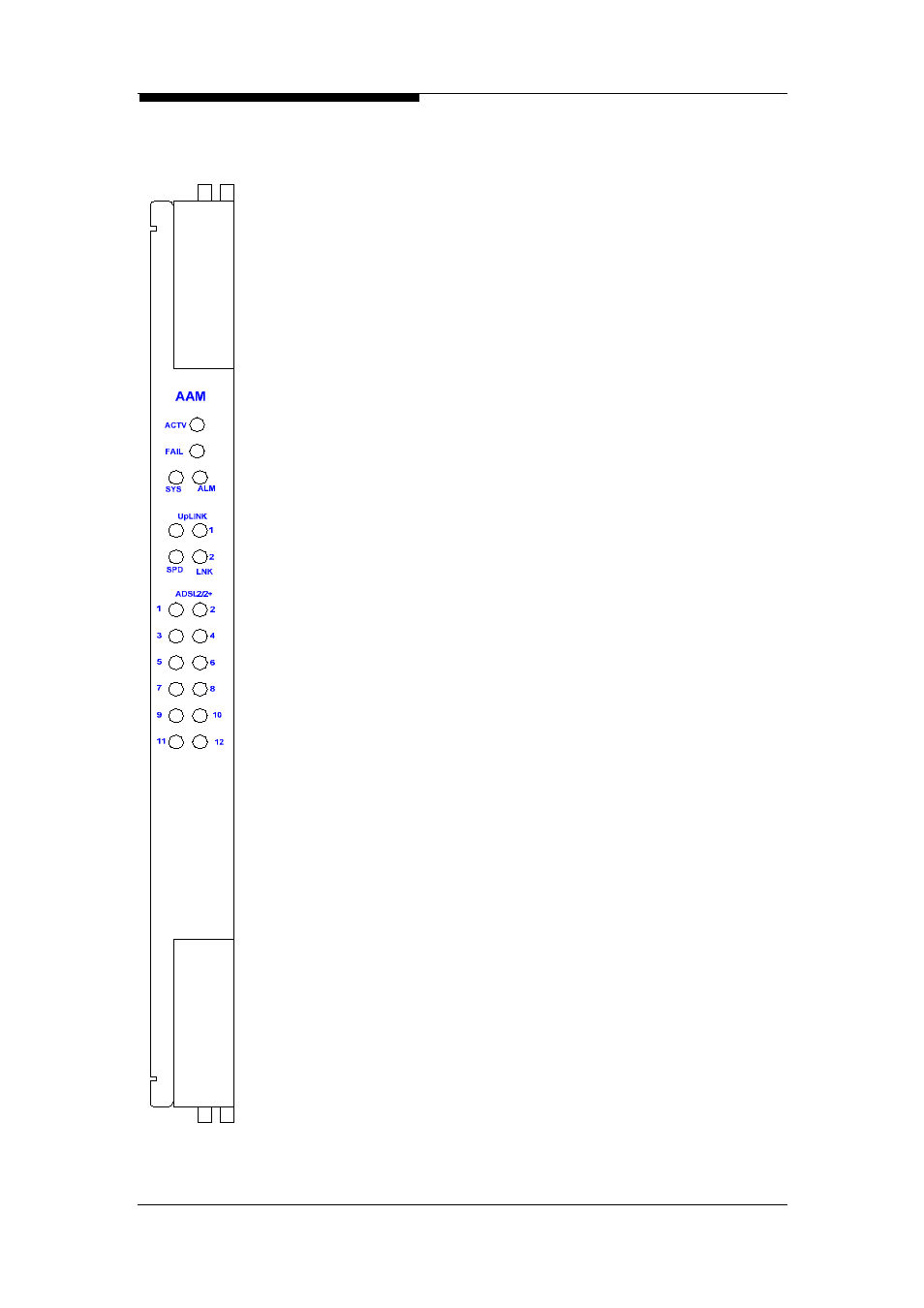

AAM Panel View

LED Status

Description

ACT(Green)

Green: AAM in use

FAIL (Red)

ON:NPU, or auto-detection failure

OFF: AAM functioning normally


ON: NPU is running (Normal)

SYS (Green)

OFF: NPU is stopped

ALM (Red)

ON: NPU execution error
OFF: Normal

UPLINK SPD 1/2 (Green)

ON: 100Mbps Ethernet connected
to port 1/2 when LNK is ON.

OFF: 10Mbps Ethernet connected
to port 1/2 when LNK is ON Or LNK
is OFF.

ULINK LNK 1/2 (Green)

ON: Linked to Ethernet network

OFF: Not linked to any Ethernet
network

ADSL2/2+ 1~12 (Green)

ON: The corresponding port is
linked to a ADSL2/2+ CPE

OFF: The corresponding port is not
linked to any ADSL2/2+ CPE.
