7. Product Specification

MSAP2000 Technical Manual V3.0

7-73

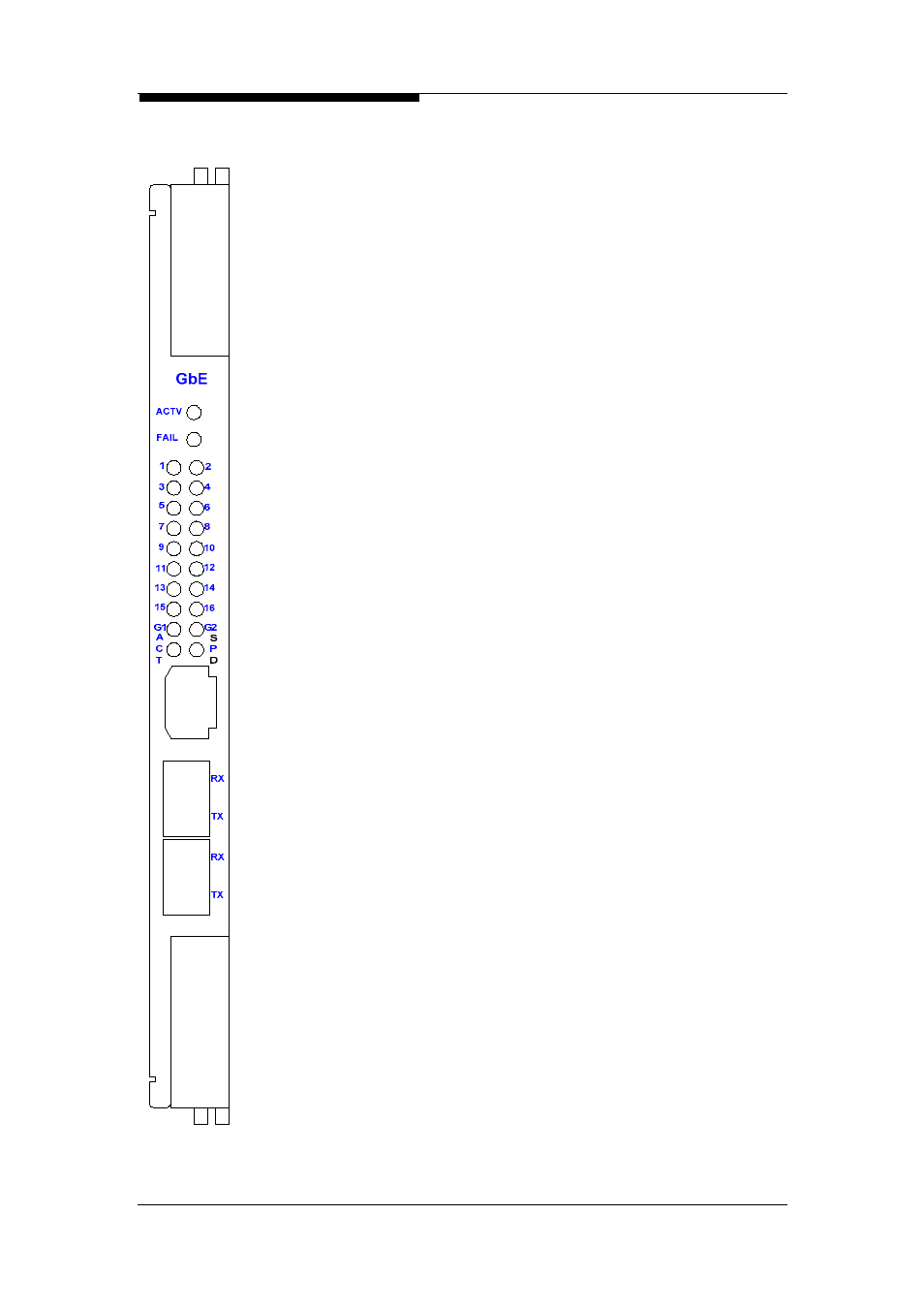

GbE Panel View

LED Status

Description

ACTV (Green)

ON: Functioning normally
OFF: CPU, or Power failure

FAIL (Red)

ON: CPU, or auto-detection failure

OFF: Functioning normally

1~16 , G1/G2 ACT(Green)

ON: Connected to Slot N and data
transmission is in progress (LED
twinkles during data transmission)

OFF: Slot N is without an 100/1000
BaseT Ethernet Port

1~16, G1/G2 SPD(Green)



ON: LAN port is connected to the
Ethernet using 1000Mbps.

OFF: LAN port is connected to the
Ethernet using 100Mbps,
