11. System Parameter Specification

MSAP2000 Technical Manual V3.0

11-14

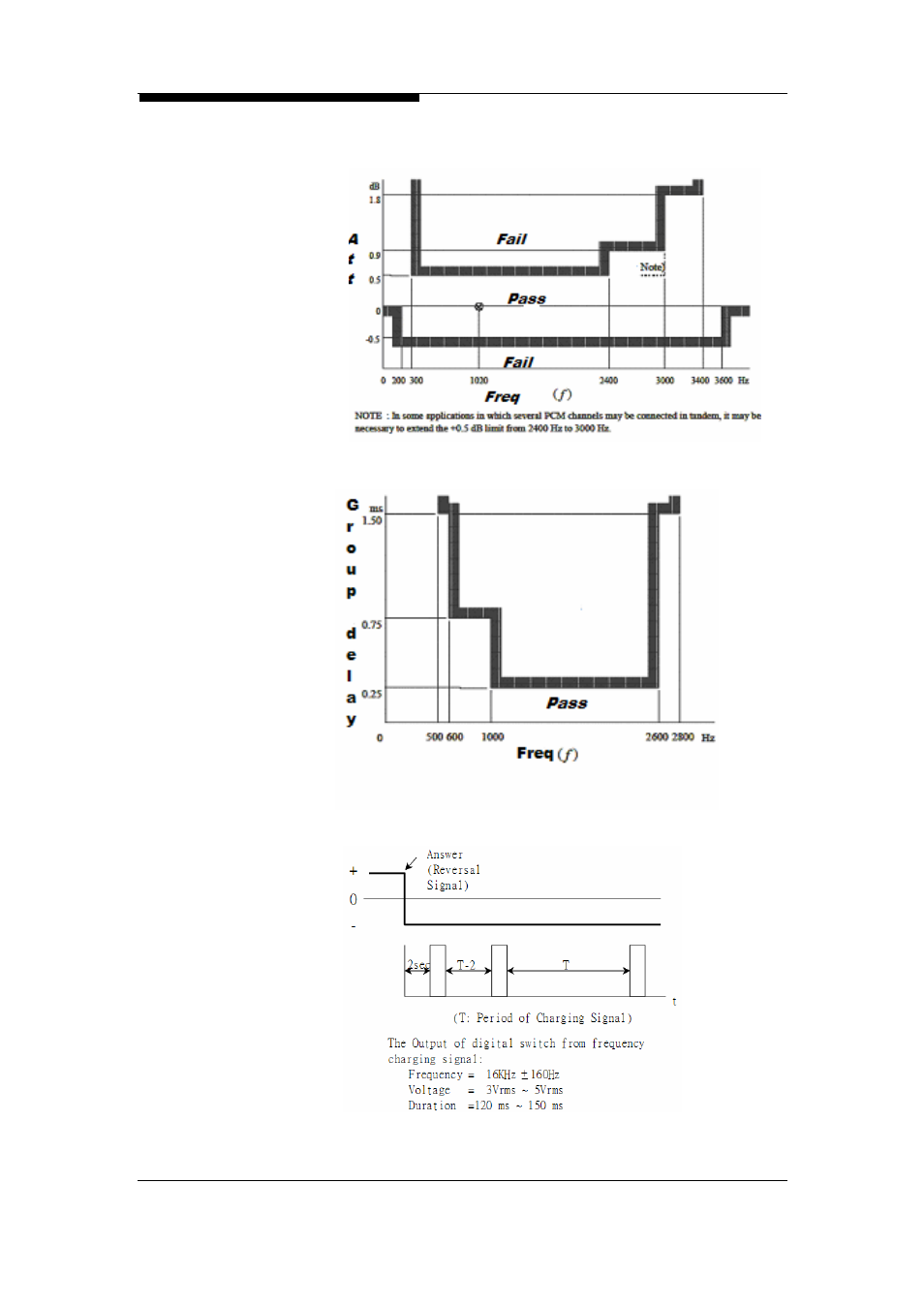

Figure 11-E
Attenuation/Frequency
Distortion for the
Following Module:
4W E&M


Figure 11-F
Group Delay Distortion
with the Frequency
For the Following
Module:
4W E&M

Figure 11-G
16/12 KHz
Charging Signal
