ZyXEL Communications Multi-service Access Platform MSAP2000 User Manual
Page 125
7. Product Specification
MSAP2000 Technical Manual V3.0
7-18

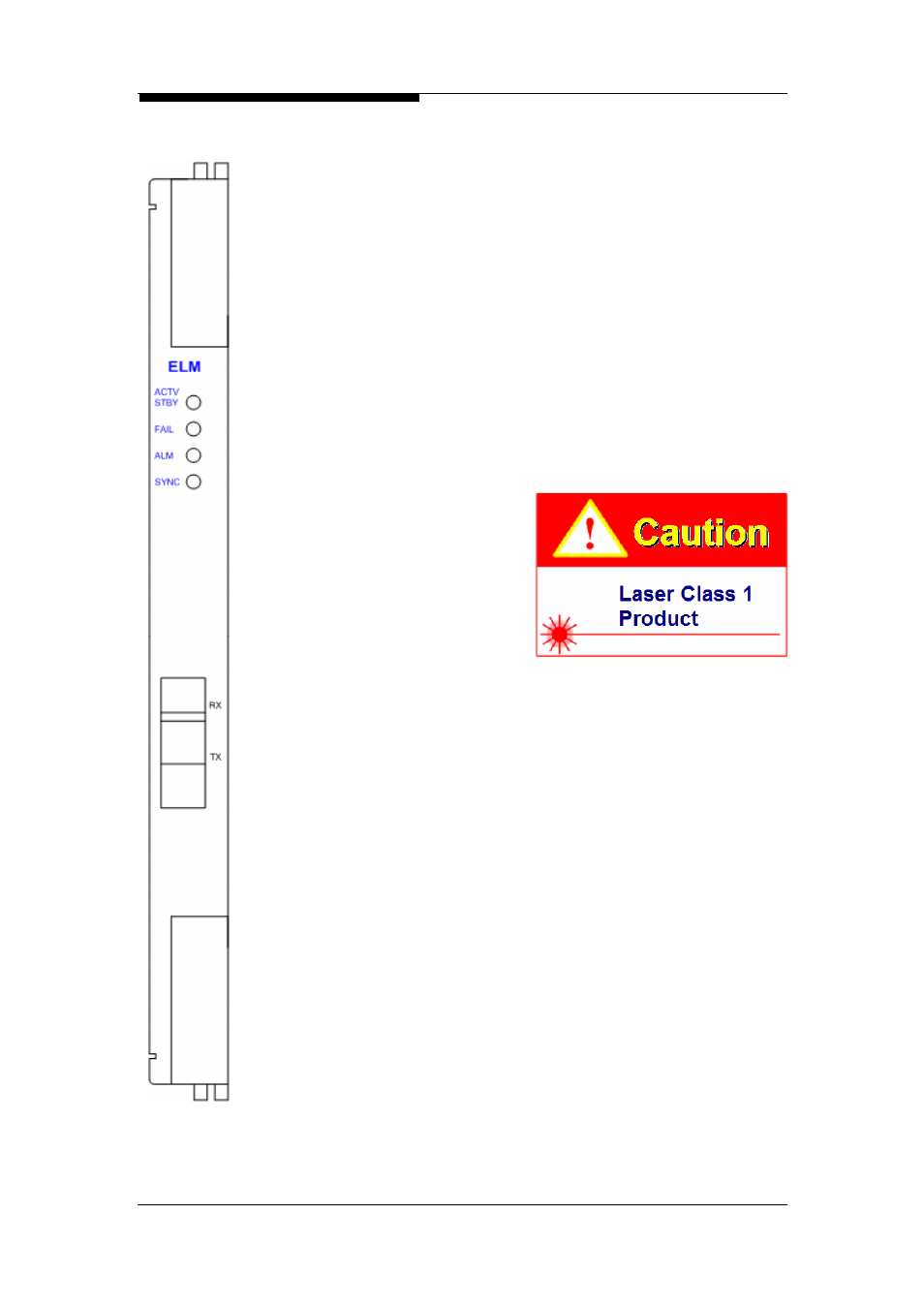

ELM Panel View
LED Status
Description
ACTV/STBY
Green: Functioning normally
(Green/Orange)
Orange: in standby mode
OFF: CPU, or Power failure
occurrence
FAIL (Red)
ON: CPU, or auto-detection failure
OFF: Functioning normally
Alarm (Red)
Red: Near-end alarm occurrence
OFF: No alarm occurrences
SYNC (Blue)
ON: STM-1 Frame Data received
OFF: No data received
