7. Product Specification

MSAP2000 Technical Manual V3.0

7-82

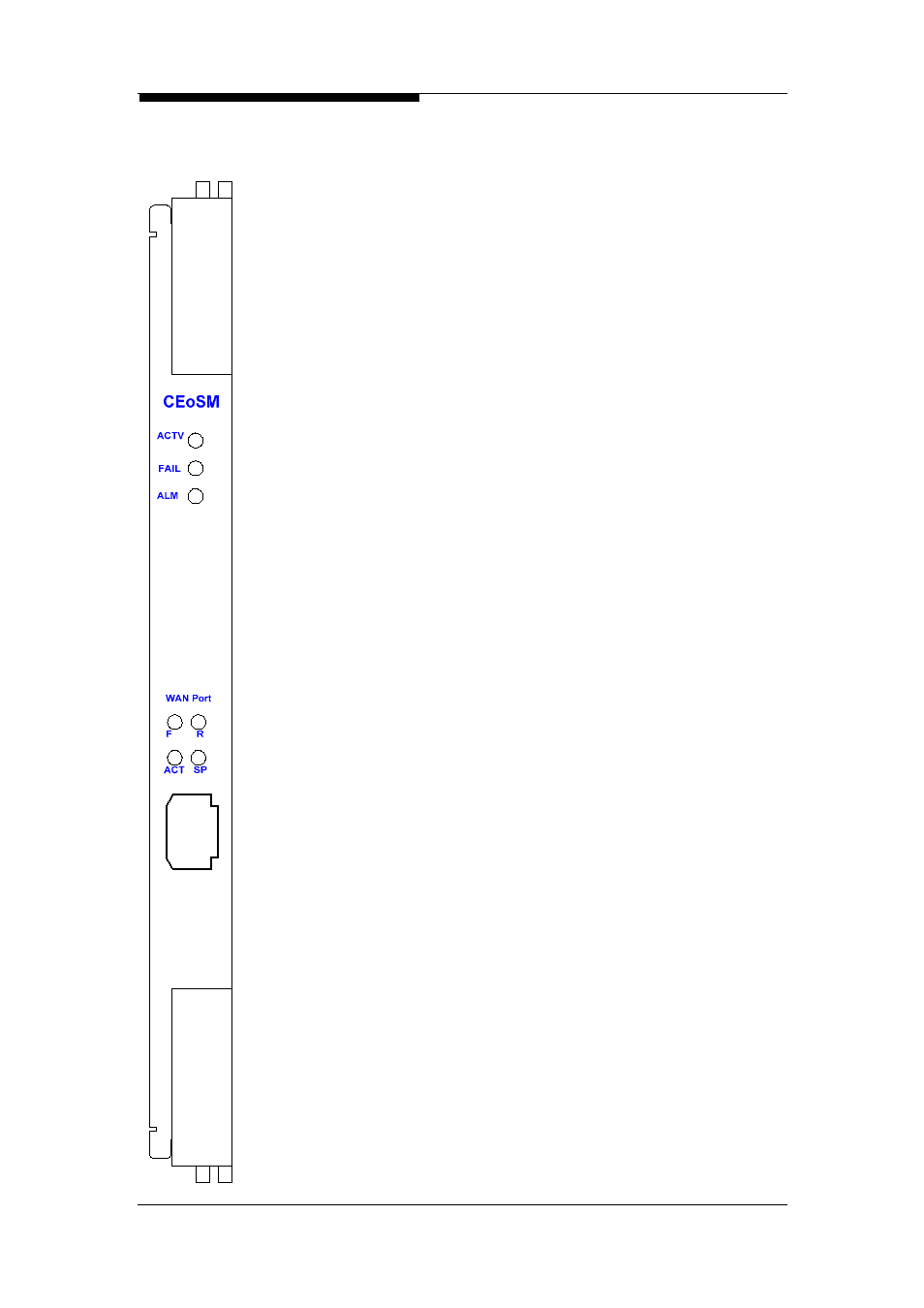

CEoSM Panel View

LED Status

Description

ACTV (Green)

Green: Functioning normally

OFF: CPU, or Power failure

FAIL (Red)

ON: CPU, or auto-detection failure

OFF: Functioning normally

ALM

ON: GFP Encapsulation error.

OFF:

Normal

WAN F(Green)

ON: Uplink using the front RJ-45

WAN R (Green)

ON: Uplink using the rear-access

WAN ACT (Green)






WAN SPD (Green)

ON/TWINKLE: Uplink Port is
connected to Ethernet device, and
data is being transmitted (LED
twinkles during transmission)
OFF: Uplink port is disconnected
with SDH

ON: WAN Port N connected to
Ethernet at 100BaseTx
OFF: WAN Port N connected to
Ethernet at 10BaseT, or
disconnected
