7. Product Specification

MSAP2000 Technical Manual V3.0

7-86

7.30.

Ethernet Switching Module (ESM)

Overview

The Ethernet Switching Module (ESM) supports Ethernet switching,
and it is installed in the RT, to provide subscribers with Ethernet
connection.

Features
And
Benefits

„ Panel LEDS indicate status, faults, alarms, and network

connections.

„ Complies with G.7041(GFP) standards
„ Bandwidth transmission capability reaches up to 100Mbps,

maximum.

„ Built-in Ethernet Exchange chip supports more than 1024 VLAN
„ Bandwidth allows for frequency width adjustment at 64 Kbps per

step

„ Use of non-volatile memory devices for performance data storage

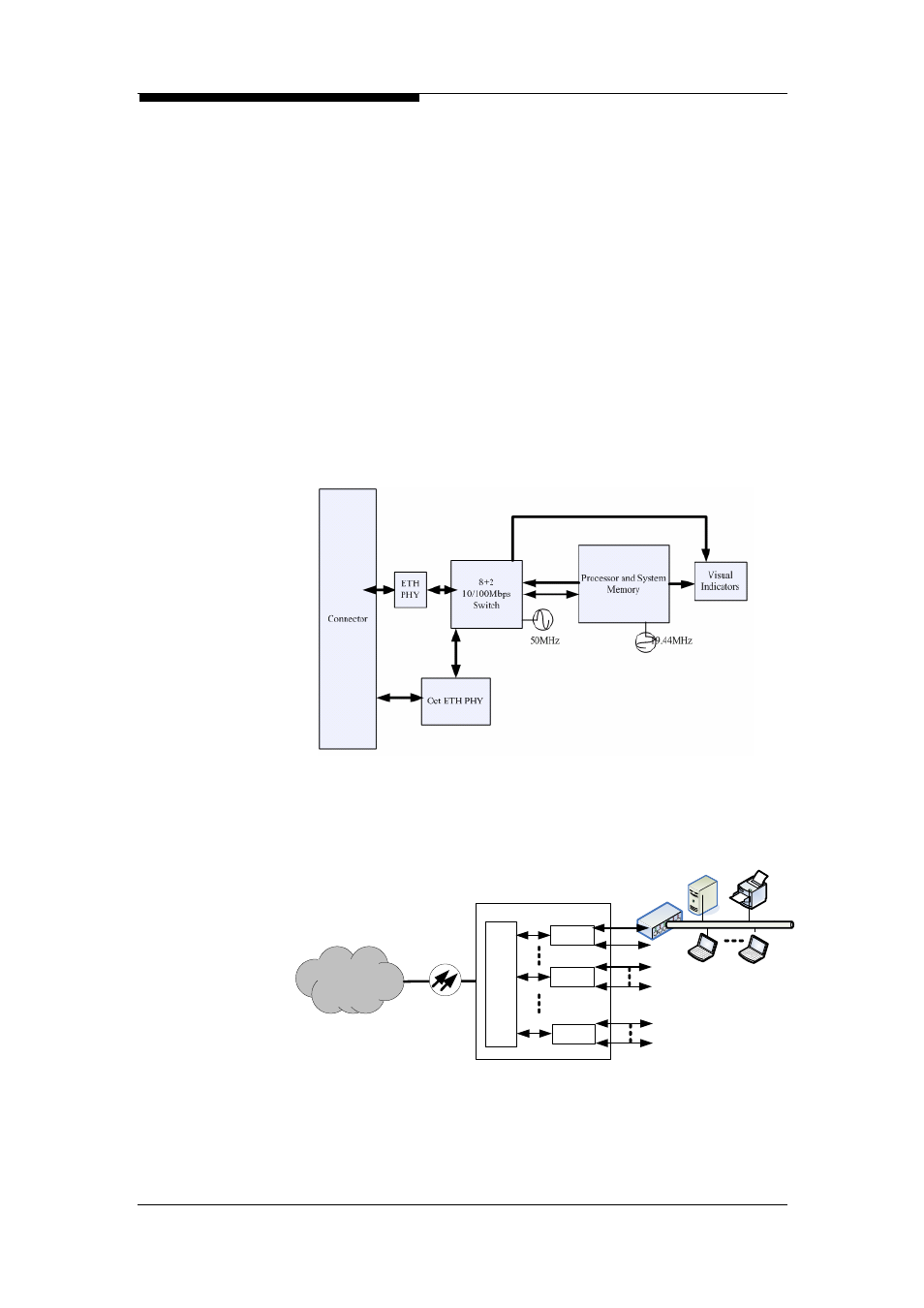

Function Diagram

Application

The ESM will increase the Ethernet Ports to subscriber within the
100m loop distance. It is ideal for the business building application

IP

Network

GE

GbE

ESM

AAM

8

1

12

ESM

1

8

1

1
