6.6. IP DSLAM Design
GbE when associated with xDSL service card like AAM can provide the
IP DSLAM function for broad-band services.
CEoSM Function
CEoSM supports the following functions:
„ 1 Port 10/100 Mbps Ethernet comply with IEEE802.3
„ Layer 2 Switch
REoSM Function
REoSM supports the following functions:
„ 8 Port 10/100 Mbps Ethernet comply with IEEE802.3
„ Layer 2 Switch
„ ITU-T G.7041 Generic Frame Procedure
IP-Based xDSL
MSAP2000’s AAM provides IP-based ADSL2/2+ services.
Each AAM will support 12 ADSL2/2+ interfaces, and can share 100
Mbps bandwidth. When the MSAP2000 uses GbE as its transmission
trunk interface, and will allow 192 ADSL interfaces in one single shelf
share 2000 Mbps of bandwidth for uplink.

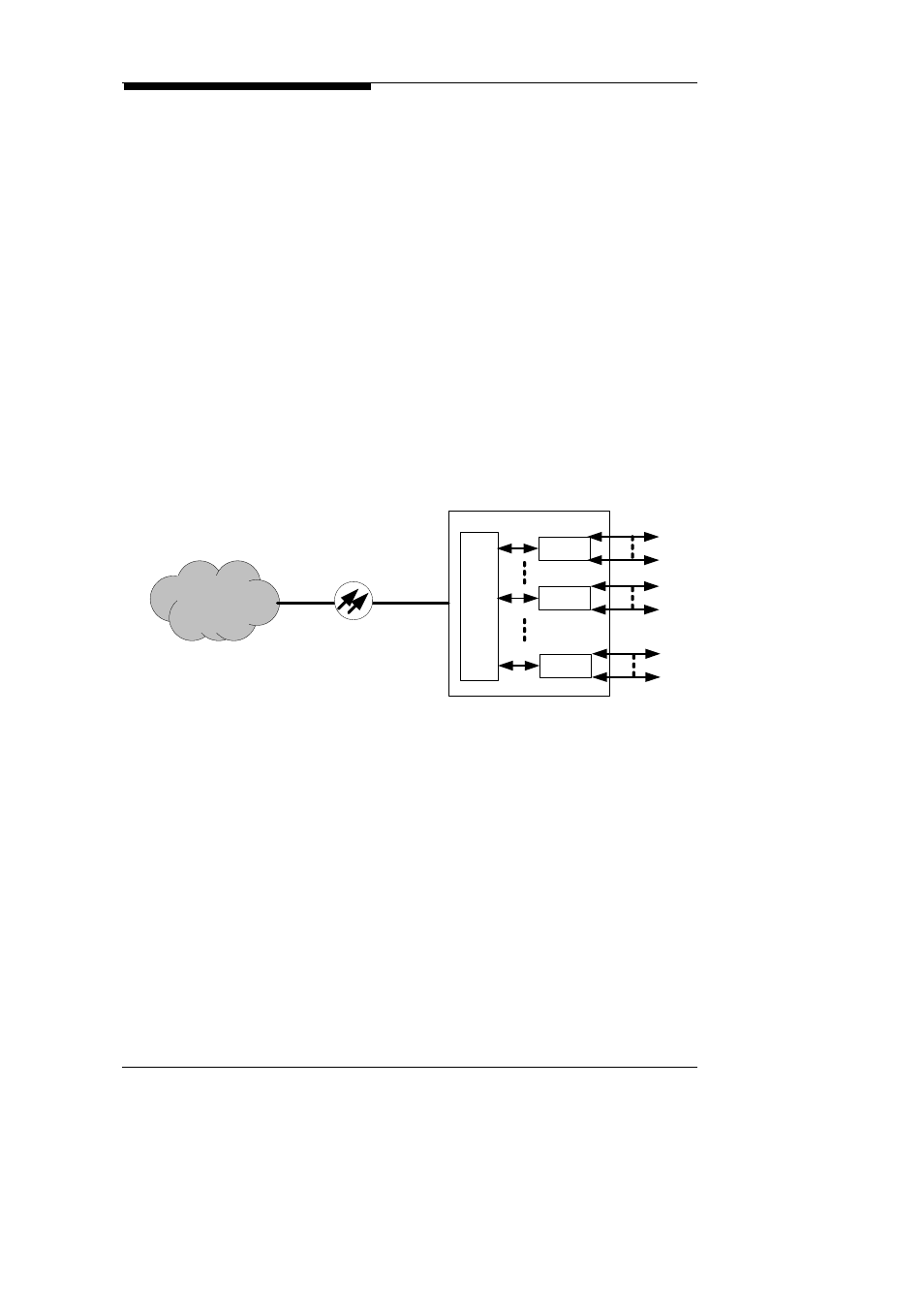

IP
Network
Ethernet
FE/GE
GbE
AAM
AAM
1
12
1
12
AAM
1
12
