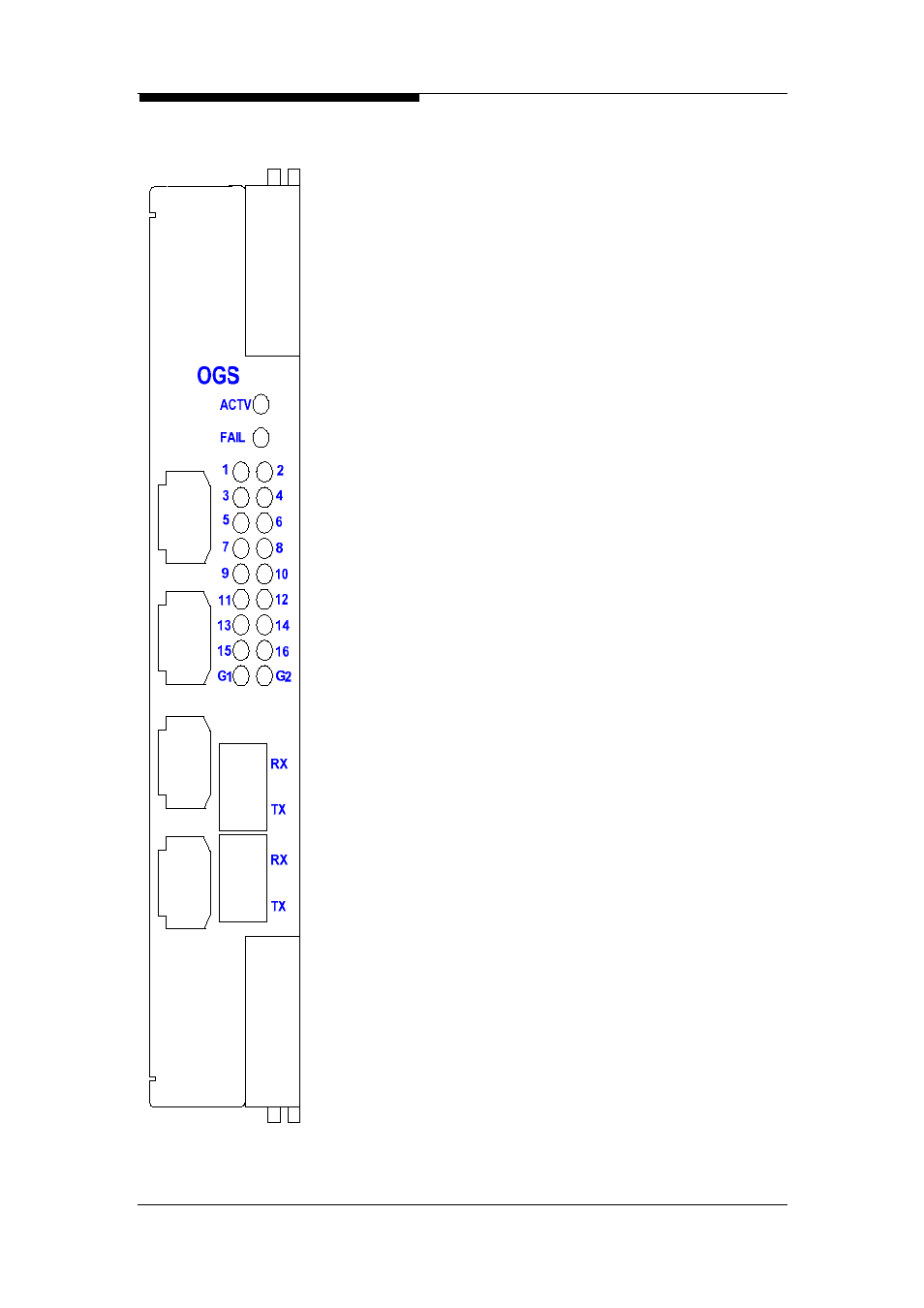

OGS Panel View

LED Status

Description

ACTV (Green)

ON: Functioning normally
OFF: CPU, or Power failure

FAIL (Red)

ON: CPU, or auto-detection failure

OFF: Functioning normally

1~16 (User port) ACT(Green)

ON: Connected to Port N and data
transmission is in progress (LED
twinkles during data transmission)

OFF: Port N is not linked with an
Ethernet Port

G1/G2 (Uplink port)
ACT(Green)

ON: G1/G2 is connected to a valid
Gigabit Ethernet port data
transmission is in progress (LED
twinkles during data transmission)

OFF: G1/G2 is not linked with
Gigabit Ethernet port.
