7. Product Specification

MSAP2000 Technical Manual V3.0

7-31

7.12.

STM-1 Module (SM1)

Overview

The STM-1 Module (SM1), like OIM, provides standard SDH STM-1
optical/electrical trunking, to connect to different Network nodes. The
different application code can be easily applied by using the
corresponding SFP optical transceiver. This will allow the user to
change the application in the field. Apart from data transmission
between different nodes, this Module also provides SDH performance
monitoring and fault reporting.

Features
And
Benefits

„ Panel LEDS indicate status, faults, alarms, and network connection
„ STM-1 optical Interface complies with ITU-T G.957 standards
„ Timing Recovery circuit, with ultra-low jitter
„ Insertion and monitoring of STM-1 Overhead Byte
„ Provides 1+1 protection switching
„ Protection switch mechanisms can be setup based on the

performance threshold value of the optical interface. Its switch
threshold (such as BER) can be either selected by the User, or
setup internally. In the event of protection switch failure, an alarm
warning will be shown.

„ Alarm and fault monitoring and reporting
„ Provides Digital cross-connect functions for all STM-1 time slots
„ Synchronous clock timing for Main Power Modules
„ Use of non-volatile memory devices to store performance data

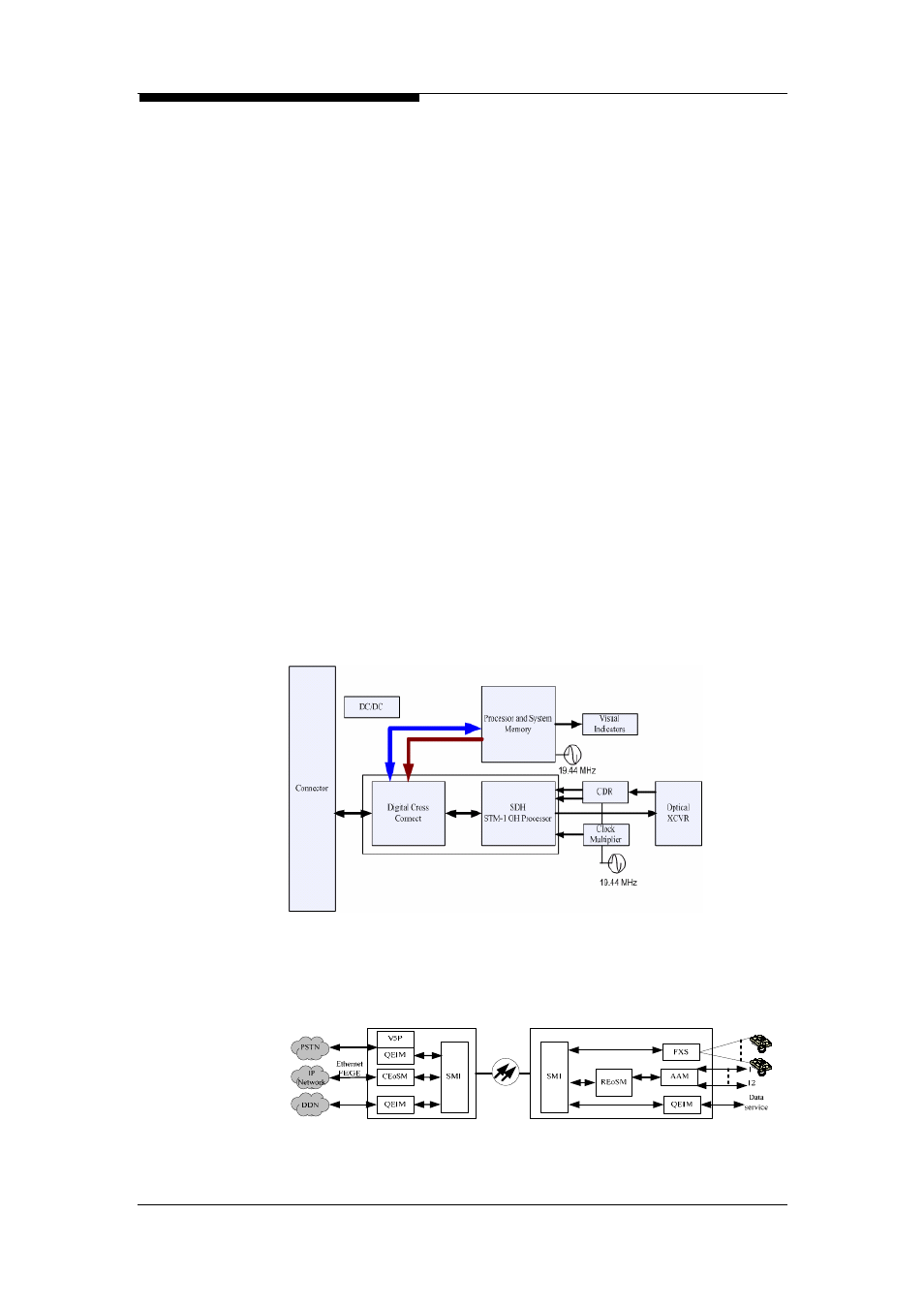

Function
Diagram

Application

SM1 is used as the trunk interface to link two nodes. The pluggable

optical transceiver allows user to use the appropriate application code

in the field without troubles.
