7. Product Specification

MSAP2000 Technical Manual V3.0

7-12

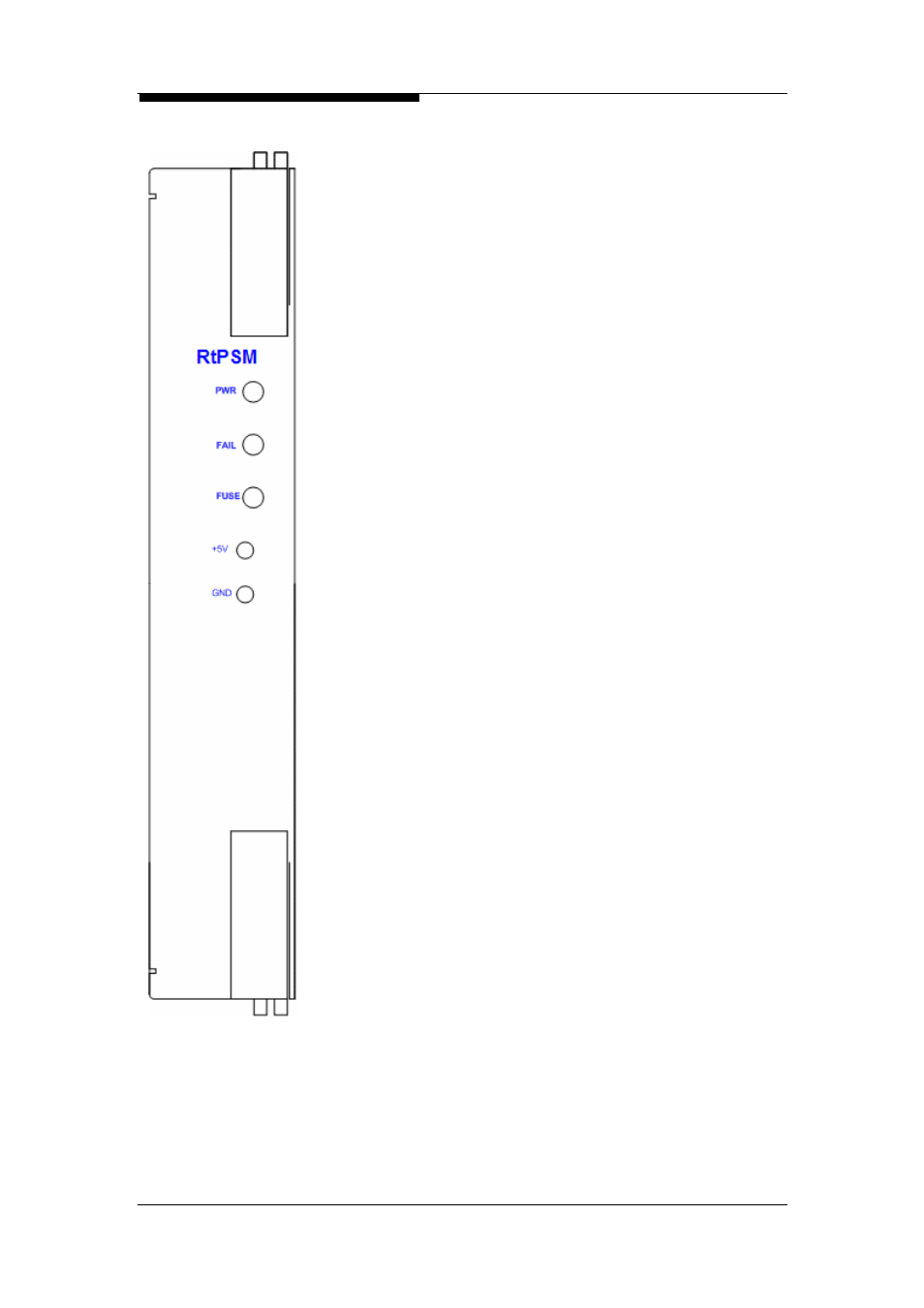

RtPSM Panel View

LED Status

Description

PWR (Green)

ON: RtPSM input/output power
functioning within designated
range

OFF: RtPSM input/output power
has exceeded the designated
working range.

FAIL (Red)

ON: input/output power has
exceeded the designated working
range, or over-temperature
occurrence.

OFF: RtPSM functioning normally


ON: Fuse malfunction caused by
over current

FUSE (Red)

OFF: Fuse functioning normally

+5V (Test Contact)

DC +5V Test Contact

GND (Test Contact)

System Ground Test Contact
