7. Product Specification
MSAP2000 Technical Manual V3.0 7-46
7.17. Foreign Exchange Station Module (FXS)
Overview
The Foreign Exchange Station Module (FXS) provides 16 channels
of analog voice interfaces for connection to subscriber devices, such
as telephones, fax machines, and analog Modems.
FXS channels provide functions such as RING voltage relay, HOOK
detection, DC current feedings, test relays and line protection.
Features
And
Benefits
„ Panel LEDS indicate status, faults, alarms, and network
connections.
„ Loop status detection and Signaling exchange
„ A-law or u-law compounding
„ Application of advanced DAA (Data Access Arrangement) design
„ Alarm and Fault monitoring and reporting
„ Timeslot assignment for Voice Services
„ Use of non-volatile memory devices for performance data storage

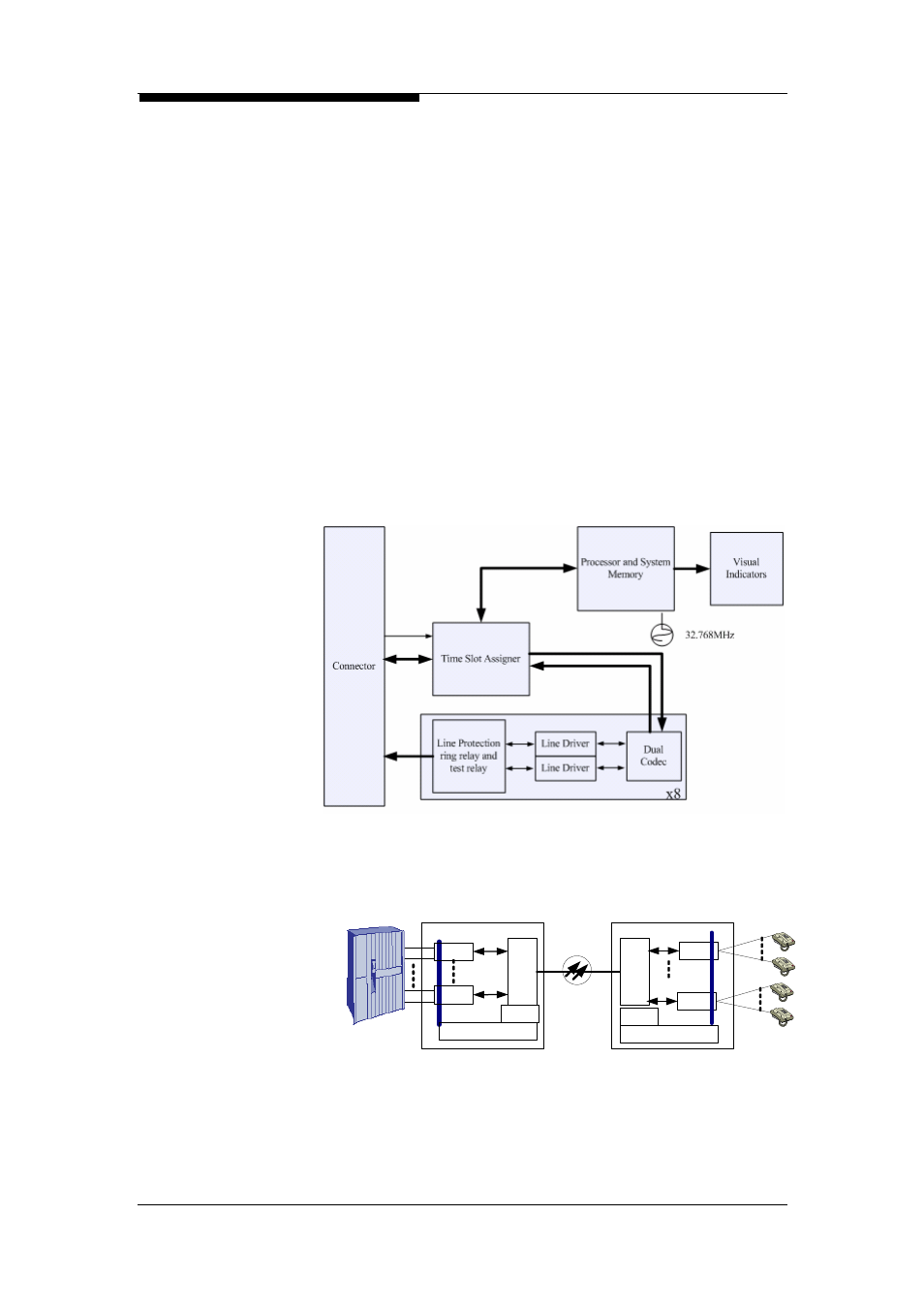

Function Diagram
Application
FXS is used to provide the subscriber’s POTS interface. It can used
for configurations of DLC for 2W, V5 AN and VoIP.
OIM/
SM1/
SM4
FXS
FXS
MLTM
MPM
Test Bus
OIM/
SM1/
SM4
FXO
FXO
MLTM
MPM
PSTN Switch
Test Bus
