ZyXEL Communications Multi-service Access Platform MSAP2000 User Manual
Page 177
7. Product Specification
MSAP2000 Technical Manual V3.0
7-70

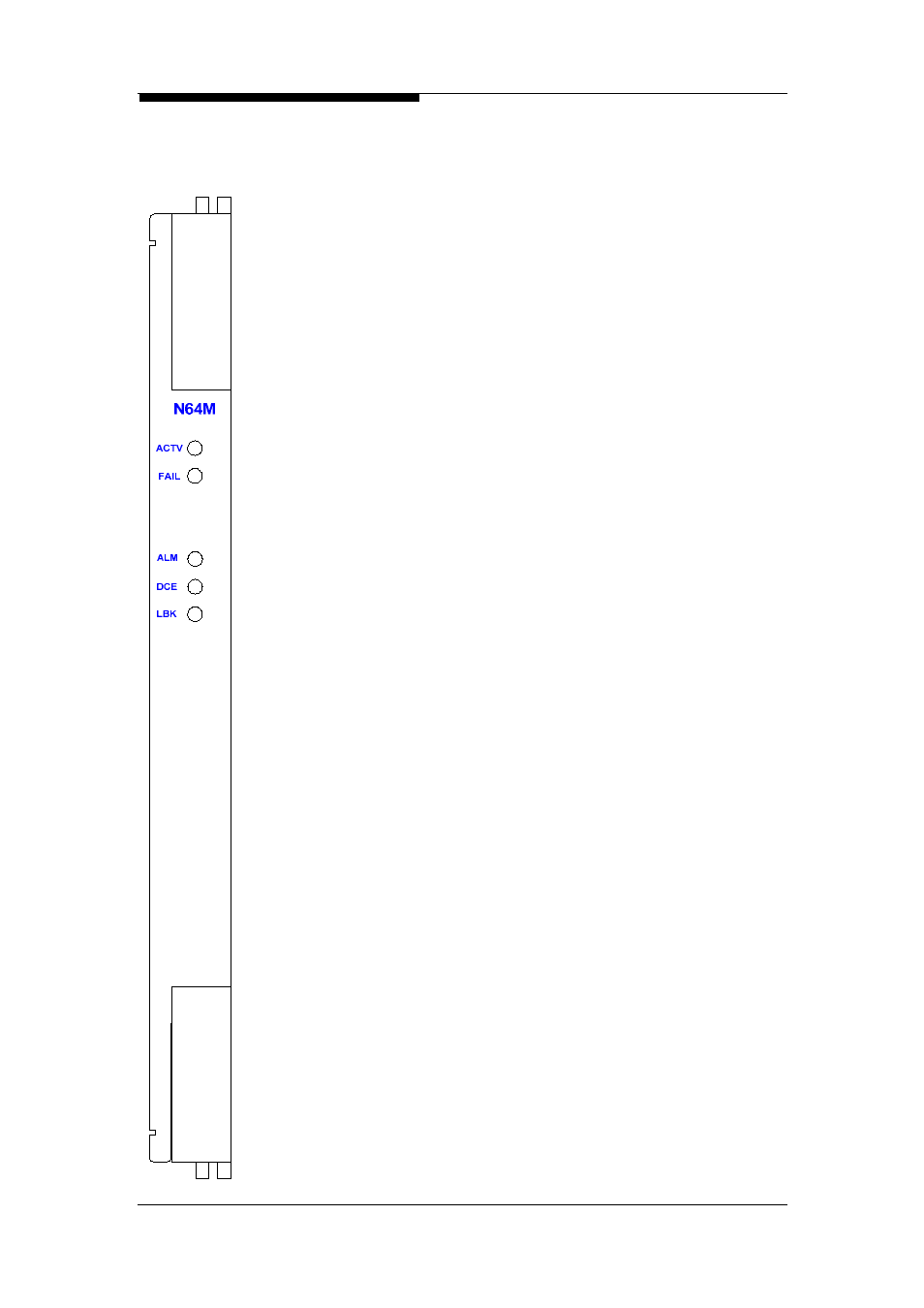

N64M Panel View
LED Status
Description
ACTV (Green)
Green: Functioning normally
OFF: CPU, or Power failure
FAIL (Red)
ON: CPU, or auto-detection failure
OFF: Functioning normally
ALM (Red)
ON: Alarm Detected
OFF: Normal operation
DCE (Green)
ON: DEC mode.
OFF: DTE mode
LBK (Green)
ON: Loop testing in progress
OFF: Normal Operation
