7. Product Specification

MSAP2000 Technical Manual V3.0

7-88

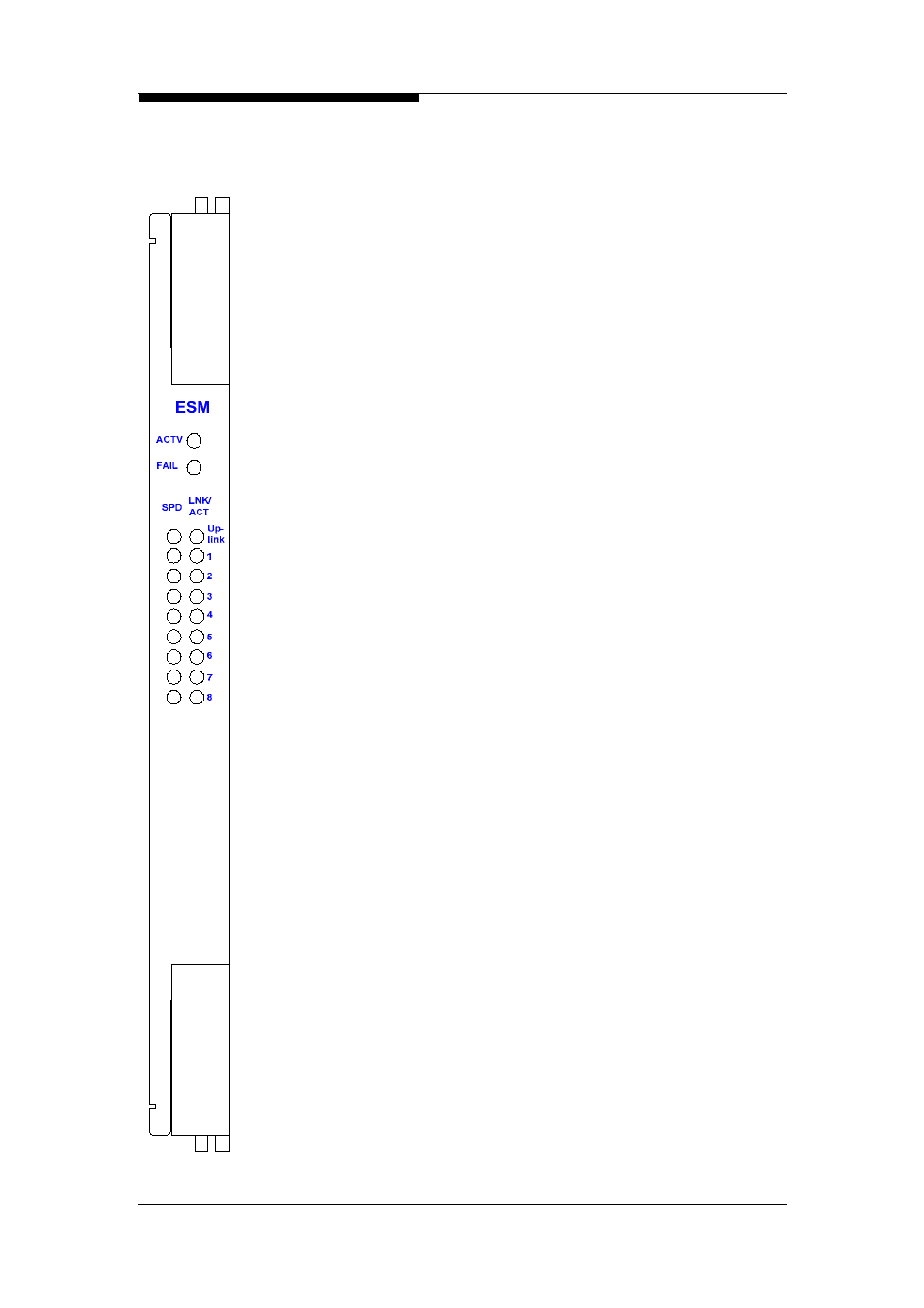

ESM Panel View

LED Status

Description

ACTV (Green)

Green: Functioning normally

OFF: CPU, or Power failure

FAIL (Red)

ON: CPU, or auto-detection failure

OFF: Functioning normally

UP SPD(Green)

ON: Connected to the Ethernet at
100BaseTx

OFF: Disconnected with the
Ethernet

LINK ACTV (Green)






N=1~8 SPD (Green)






LINK/ACTV (Green)

ON/TWINKE: Uplink Port connected
to the Ethernet, and data
transmission is in progress (LED
twinkles during data transmission)
OFF: Uplink port is disconnected
with the Ethernet

ON/TWINKLE: LAN Port connected
to the Ethernet, and data
transmission is in progress (LED
twinkles during data transmission).
OFF: LAN port is disconnected with
the Ethernet

ON: LAN Port N connected to
Ethernet at 100BaseTx
OFF: LAN Port N connected to
Ethernet at 10BaseT, or
disconnected
