7. Product Specification

MSAP2000 Technical Manual V3.0

7-79

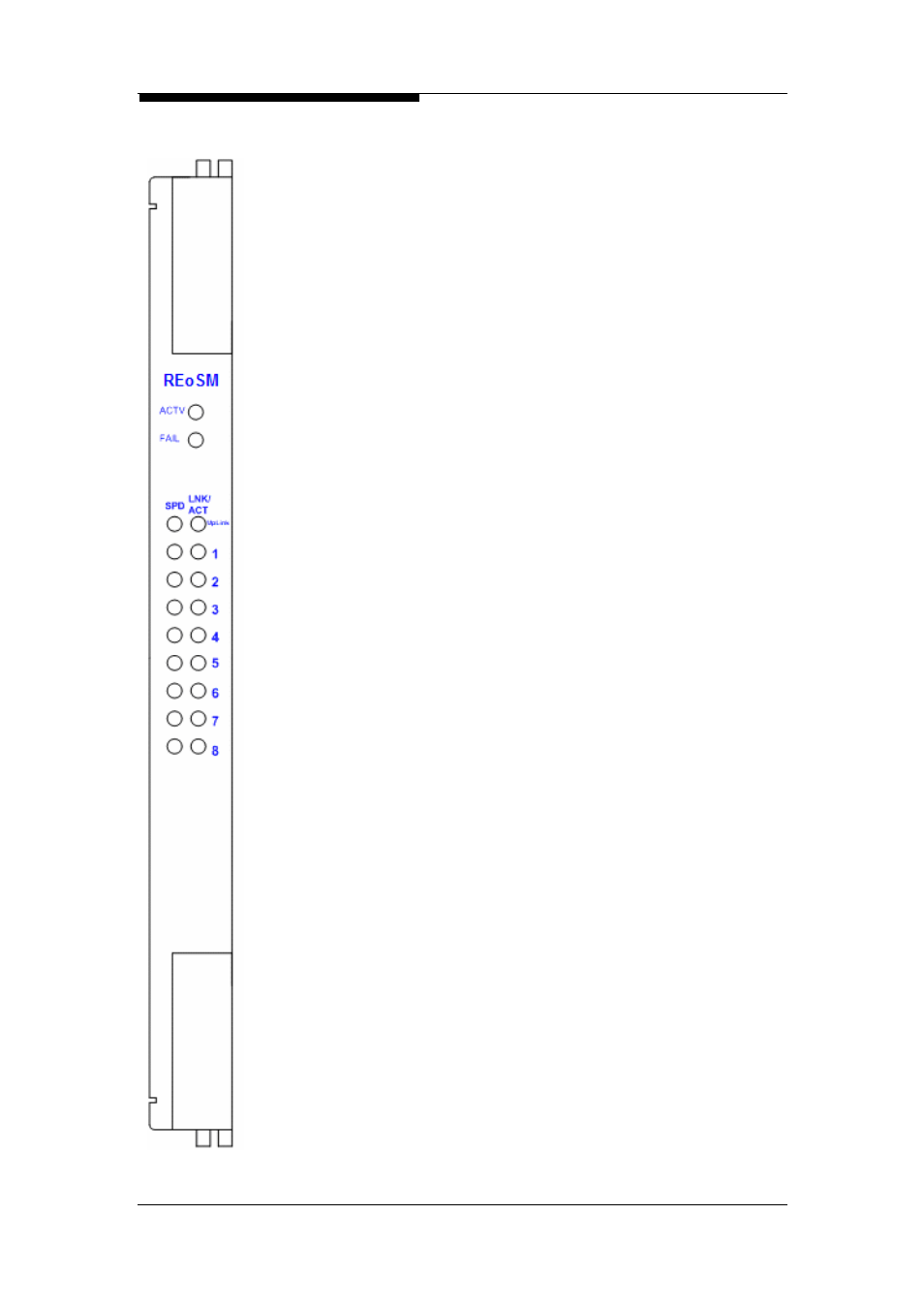

REoSM Panel View

LED Status

Description

ACTV (Green)

Green: Functioning normally

OFF: CPU, or Power failure

FAIL (Red)

ON: CPU, or auto-detection failure

OFF: Functioning normally

UP SPD(Green)

ON: Connected to SDH at
100BaseTx

OFF: Connected to SDH at
100BaseTX, or disconnected

LINK ACTV (Green)






N=1~8 SPD (Green)






LINK ACTV (Green)

ON/TWINKLE: Uplink Port is
connected to SDH, and data is
being transmitted (LED twinkles
during transmission)
OFF: Uplink port is disconnected
with SDH

ON/TWINKLE: LAN port N is
connected to the Ethernet, and data
is being transmitted (LED twinkles
during transmission)
OFF: LAN port N is not connected to
the Ethernet

ON: LAN Port N connected to
Ethernet at 100BaseTx
OFF: LAN Port N connected to
Ethernet at 10BaseT, or
disconnected
