Chapter 4 Tutorials
NBG410W3G Series User’s Guide
91
6 Configure a firewall rule to allow HTTP traffic from the WAN to the web server.
Enter a descriptive name (W-L_Web for example).
Select Any in the Destination Address(es) box and click Delete.
Select Single Address as the destination address type. Enter 192.168.1.12 and click Add.

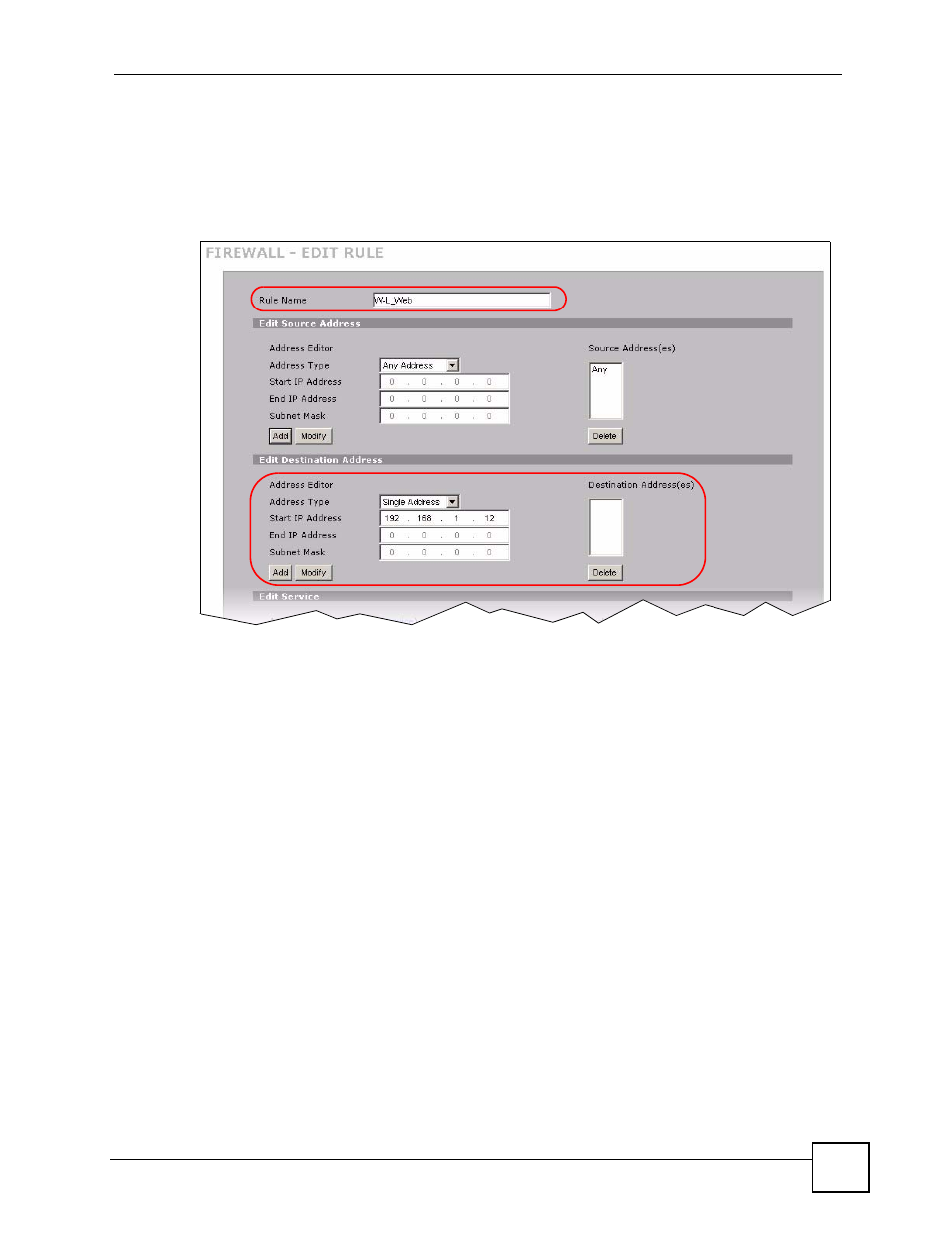

Figure 56 Tutorial Example: Firewall Rule: WAN to LAN Address Edit for Web Server
7 Select HTTP(TCP:80) and HTTPS(TCP:443) in the Available Services box on the left,
and click >> to add them to the Selected Service(s) box on the right. Click Apply.
