Chapter 4 Tutorials
NBG410W3G Series User’s Guide
85

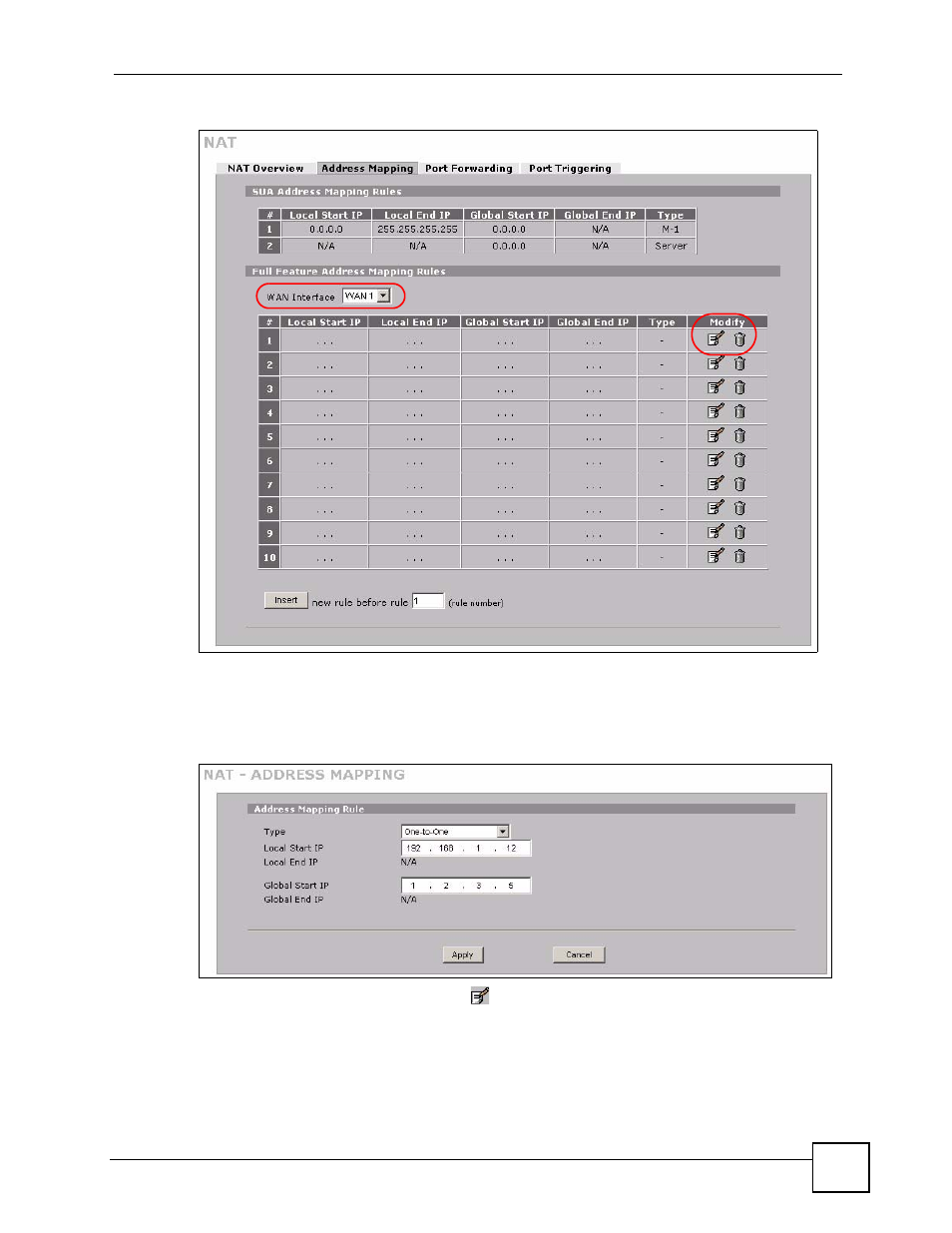

Figure 45 Tutorial Example: NAT > Address Mapping
6 Map a public IP address to the web server.
Select the One-to-One type and enter 192.168.1.12 as the local start IP address and
1.2.3.5 as the global start IP address. Click Apply.
Figure 46 Tutorial Example: NAT Address Mapping Edit: One-to-One (1)
7 Click the second rule’s Edit icon ( ).
8 Map a public IP address to the mail server.
Select the One-to-One type and enter 192.168.1.13 as the local start IP address and
1.2.3.6 as the global start IP address. Click Apply.
