Page 69
Chapter 4 Tutorials
NBG410W3G Series User’s Guide
69
Port Forwarding Setup
1 To configure port forwarding, first configure a static IP on the file server if you haven’t
already. See
2 Click ADVANCED > NAT > Port Forwarding to open the Port Forwarding screen.
3 In the WAN Interface field select the correct WAN for your network. This example uses
WAN1.
4 In the rule row you are configuring select Active.
5 In the Name field type a descriptive name for the port forwarding rule. This example
uses FTP.
6 In the Incoming Port(s) field type the port number used by the FTP application. This
example uses 69.
7 In the Server IP Address field type the IP address of your file server. This example uses
192.168.1.33.
8
Click Apply.

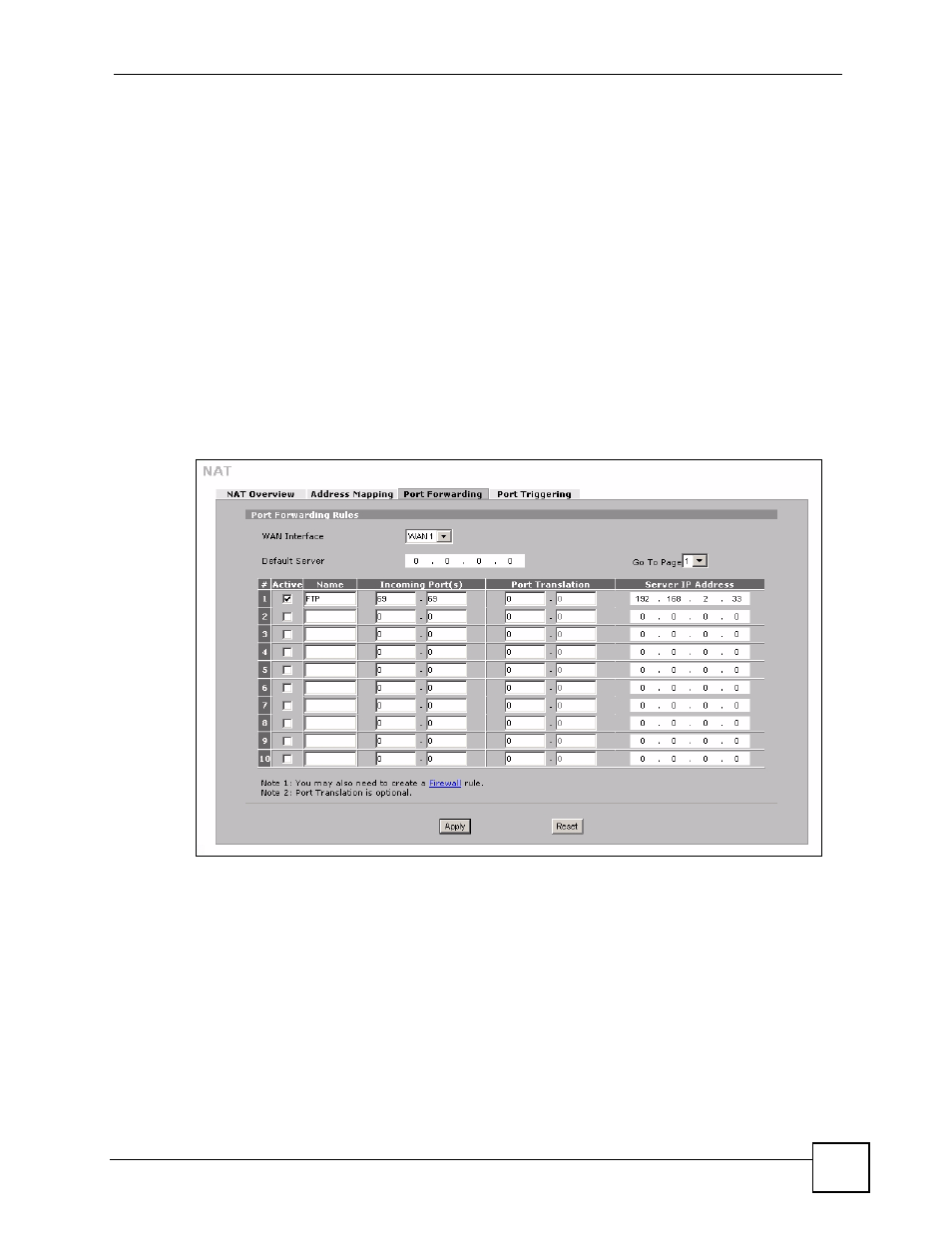

Figure 24 DMZ Tutorial: ADVANCED > NAT > Port Forwarding
This completes setup of NAT-incompatible services on the server in your DMZ. Now users
can access the file server on your DMZ from the Internet.
4.3 Firewall Rule Setup
Your ZyXEL Device’s firewall default settings provide network security by allowing traffic
from the WAN to your DMZ, and blocking traffic from the DMZ to the LAN. However, you
can further enhance network security by defining firewall rules specifically for traffic from the
WAN to the DMZ.
