Figure 210 wall-mounting example, Figure 211 masonry plug and m4 tap screw – ZyXEL Communications NBG410W3G User Manual
Page 348
Chapter 22 Product Specifications
NBG410W3G Series User’s Guide
348
1
Be careful to avoid damaging pipes or cables located inside the wall when
drilling holes for the screws.
3 Do not insert the screws all the way into the wall. Leave a small gap of about 0.5 cm
between the heads of the screws and the wall.
4 Make sure the screws are snugly fastened to the wall. They need to hold the weight of
the ZyXEL Device with the connection cables.
5 Align the holes on the back of the ZyXEL Device with the screws on the wall. Hang the
ZyXEL Device on the screws.

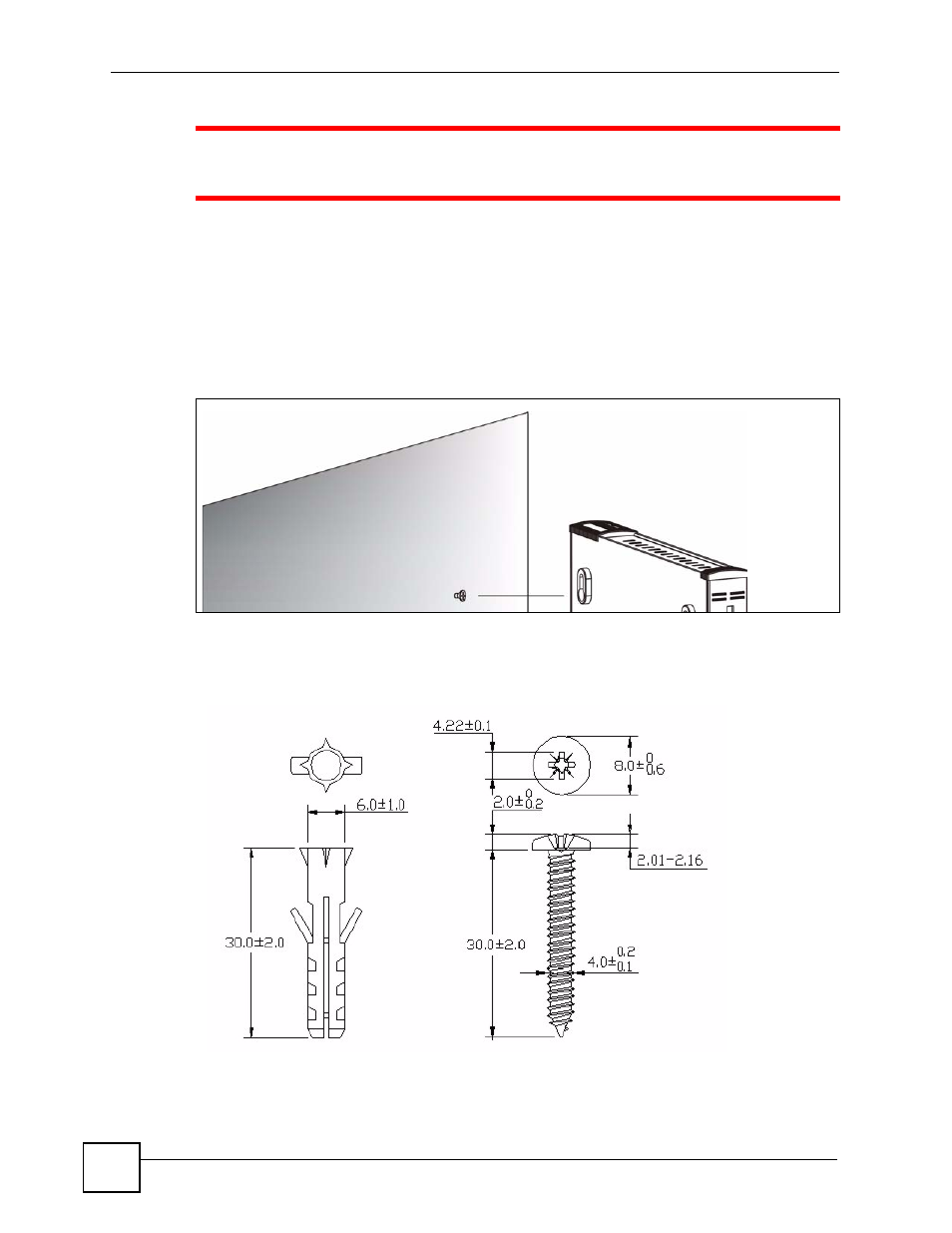

Figure 210 Wall-mounting Example
The following are dimensions of an M4 tap screw and masonry plug used for wall mounting.
All measurements are in millimeters (mm).
Figure 211 Masonry Plug and M4 Tap Screw
