Chapter 9 Firewall
NBG410W3G Series User’s Guide
187

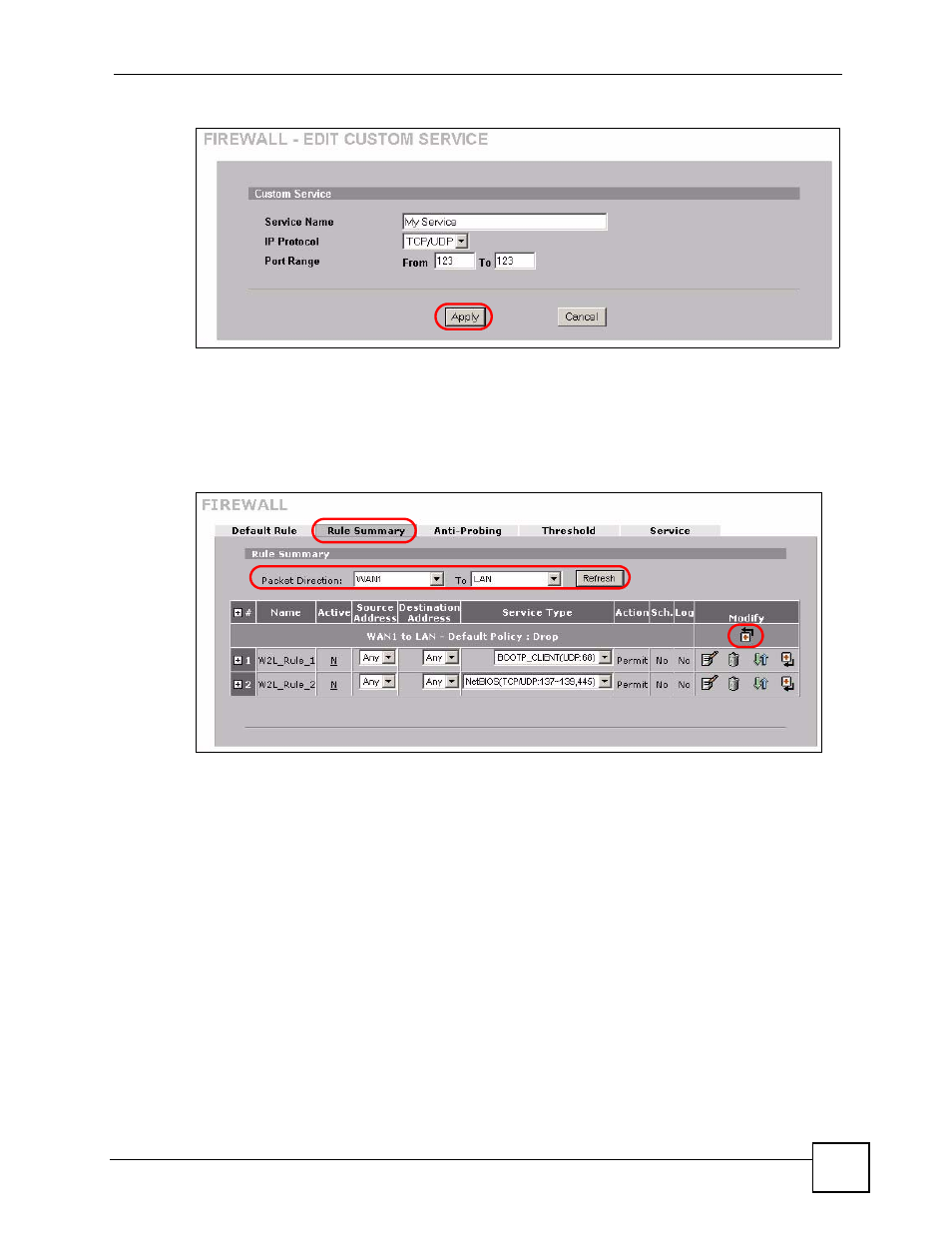

Figure 111 My Service Firewall Rule Example: Edit Custom Service
3 Click Rule Summary. Select WAN1 and LAN from the Packet Direction drop-down
list boxes and click Refresh to display existing firewall rules for the selected direction of
travel of packets.
4 Click the insert icon at the top of the row to create the new firewall rule before the
others.
Figure 112 My Service Firewall Rule Example: Rule Summary
5 The Edit Rule screen displays. Enter the name of the firewall rule.
6 Select Any in the Destination Address(es) box and then click Delete.
7 Configure the destination address fields as follows and click Add.
