Chapter 4 Tutorials
NBG410W3G Series User’s Guide
78

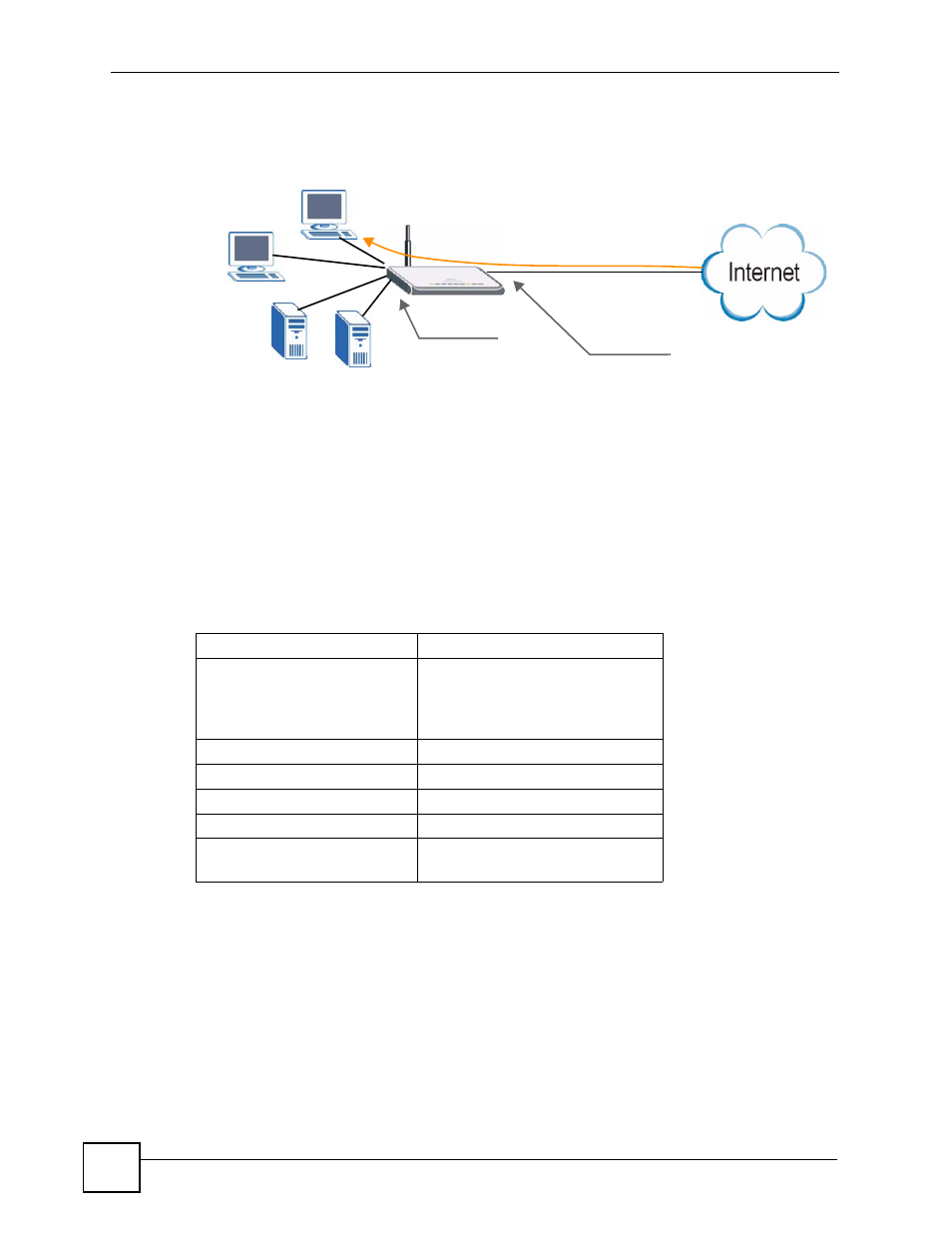

Figure 35 Tutorial Example: Using NAT with Static Public IP Addresses
To set up this network, we are going to:
1 Configure the WAN 1 connection to use the first public IP address (1.2.3.4).
2 Configure NAT address mapping for other public IP addresses (1.2.3.5 and 1.2.3.6).
3 Configure NAT port forwarding to forward FTP traffic from WAN 1 to a specific
computer on your local network.
4.5.2 Configuring the WAN Connection with a Static IP Address
The following table shows the information your ISP gave you for Internet connection.
Follow the steps below to configure your ZyXEL Device for Internet access using PPPoE in
this example.
FTP
FTP
192.168.1.39
192.168.1.39
192.168.1.12
192.168.1.13
Mail
Web
192.168.1.1
1.2.3.4
1.2.3.5
1.2.3.6
1.2.3.7
WAN
LAN Mapping rules:
192.168.1.12 <---> 1.2.3.5 (1-1)
192.168.1.13 <---> 1.2.3.6 (1-1)
Other outgoing LAN traffic ---> 1.2.3.4 (M-1)
Incoming traffic <--- 1.2.3.4 (Server)
Encapsulation PPPoE
Public IP Addresses 1.2.3.4
1.2.3.5
1.2.3.6
1.2.3.7
Gateway IP Address 1.2.3.89
Subnet Mask 255.255.255.0
User Name exampleuser
Password abcd1234
DNS Server 1.2.1.1
1.2.1.2
