Chapter 4 Tutorials
NBG410W3G Series User’s Guide
72

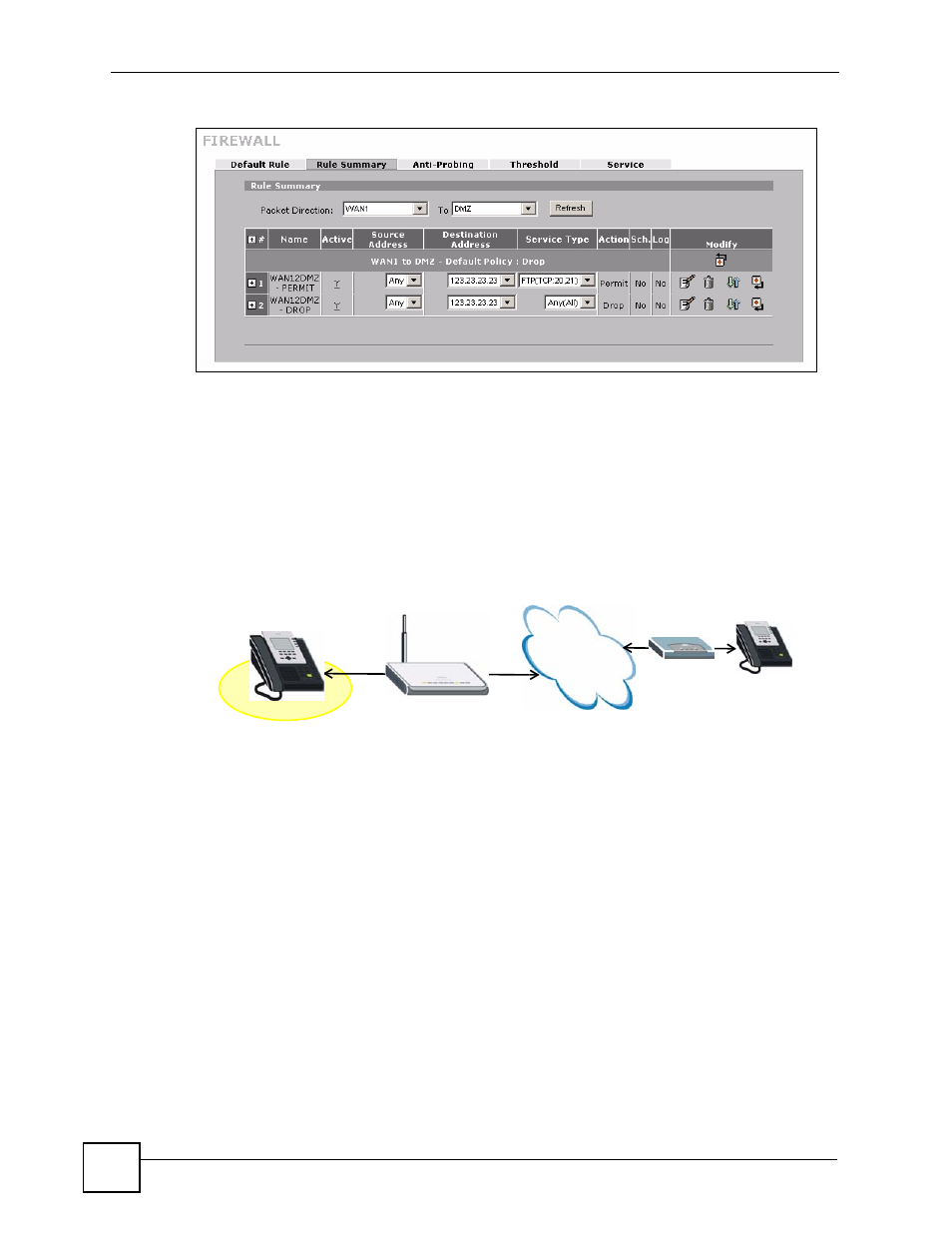

Figure 27 DMZ Tutorial: SECURITY > Firewall > Rule Summary Example
This completes setup of a firewall rules for the file server on your DMZ.
4.4 Setting Up a VoIP Phone with H.323
You can use the ZyXEL Device to manage calls from your VoIP enabled phone using H.323.
The following diagram shows an example of a VoIP phone configured to make calls over the
Internet.
Figure 28 Tutorial: H.323 Phone Setup
To configure your ZyXEL Device to allow VoIP phone calls using your H.323 phone, you
need to set up the H.323 ALG (Application Layer Gateway) and port forwarding, which in
turn requires a fixed IP address for your phone.
IP Address Settings
Follow these steps to give your phone a fixed IP address.
1 Click NETWORK > LAN > Static DHCP to open the Static DHCP screen.
2 Type the MAC address of your device in the MAC Address field and a valid IP address
on your LAN in the IP Address field. In this example the MAC address is
00:A0:C5:00:00:02 and the IP address is 192.168.1.33.
3 Click Apply.
Internet
LAN: WAN:
192.168.1.33 123.23.23.23
