Chapter 2 Introducing the Web Configurator
NBG410W3G Series User’s Guide
46

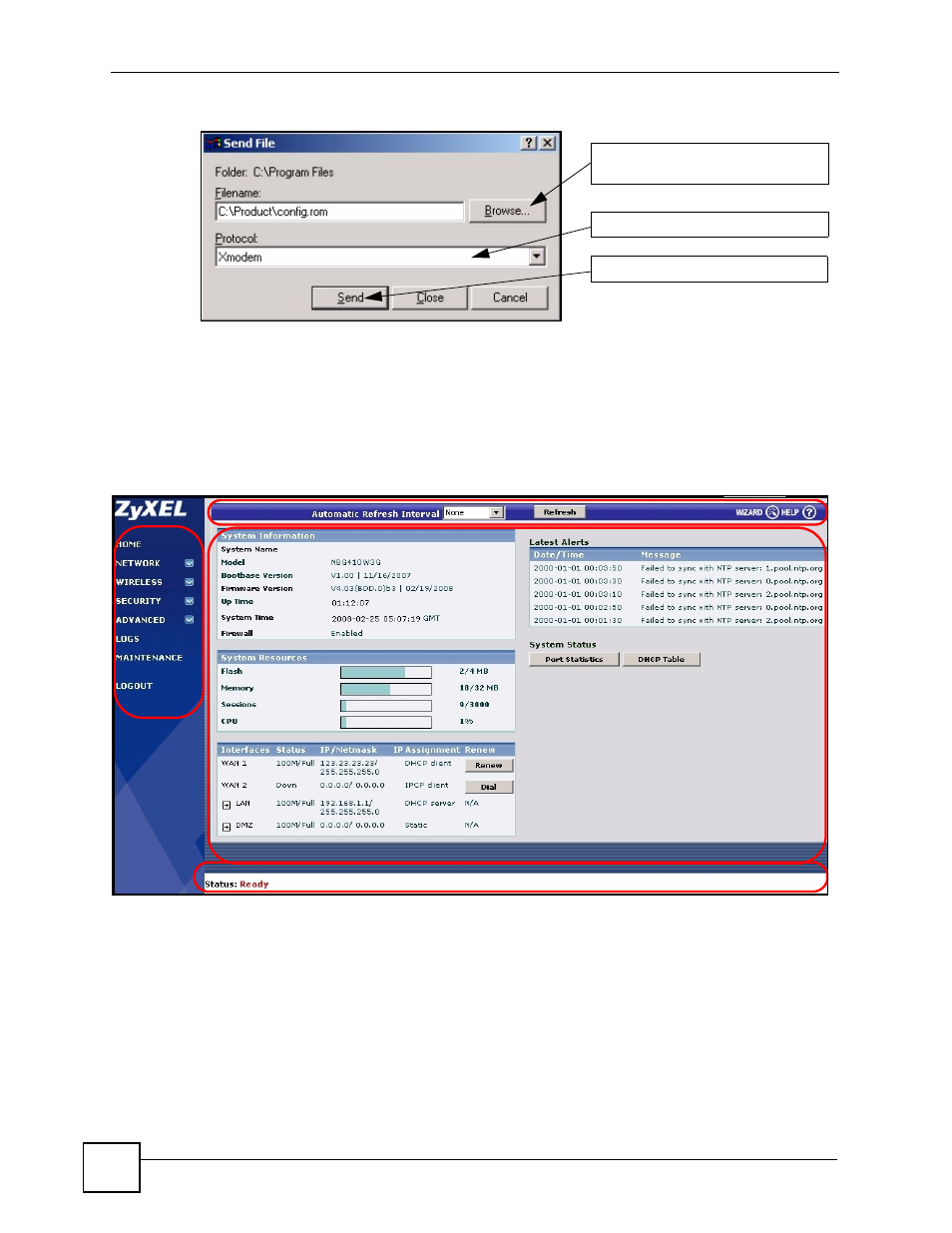

Figure 7 Example Xmodem Upload
6 After successful firmware upload, enter "atgo" to restart the router.
2.4 Navigating the ZyXEL Device Web Configurator
The following summarizes how to navigate the web configurator from the HOME screen.
Figure 8 HOME Screen
As illustrated above, the main screen is divided into these parts:
• A - title bar
• B - main window
• C - navigation panel
• D - status bar
2.4.1 Title Bar
The title bar provides some icons in the upper right corner.
Type the configuration file’s location,
or click Browse to search for it.
Choose the Xmodem protocol.
Then click Send.
C
D
B
A
